Forged D Shackle Oversized Bolt Type Pin Stainless Steel G-2150

Forged D Shackle Oversized Bolt Type Pin Stainless Steel G-2150, also known as chain shackle, have a large D shaped that allows them to take loads from many directions without developing significant side load. That makes them ideal for use with multiple-leg slings, connecting slings to load rings, and accommodating a wider strap.

This D shackle is forged and made in the US Type style of an oversized castle nut and cotter pin. The bow diameter dictates the size of this US type anchor shackle, so this chain shackle has an oversized cotter bolt pin.

This a forging stainless steel chain shackle, which for load bearing applications is better than a cast shackle. Not for overhead lifting. AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.

The oversized pin bolt configuration is best for use in applications that are temporary, or require repeated or quick connections and disconnections.

Stainless steel D shackle oversized pin bolt type forged US type, marked in the imperial specification style of size (for the bow diameter).

G-2150 Stainless Steel Forged Chain Shackle cotter bolt oversized meets the performance requirements of Federal Specification RR-C-271F Type IVB, Grade A, Class 3.

Working Load Limit permanently shown on every shackle.

Trawling Gear
Shackles
Boat Fittings

Information of Forged D Shackle Oversized Bolt Type Pin Stainless Steel G-2150

Technical Notes

Forged chain shackle conform to U.S. Federal Specification(ASME B30.26)

Material

Stainless steel 304/316 Forged D Shackle

Processing

Body: Drop Forged

Screw Pin : hot/cold forging / Drop Forged

Finish

Highly Polished

Size

3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”, 7/8 ”, 1”, 1-1/8”, 1/1/4”, 1-3/8”, 1-1/2”, 1-3/4”, 2”, 2-1/2”, 3”, 3-1/2”, 4”

Tips

Special specification and marks can be made according to customers’ requirements.

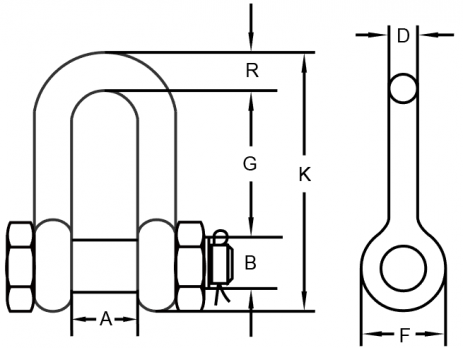

Specifications of Forged D Shackle Oversized Bolt Type Pin Stainless Steel G-2150

Specifications of Forged D Shackle Oversized Bolt Type Pin Stainless Steel G-2150


Part No.

Size

WLL

Weight

Dimensions (in.)

Tolerance +/-

(in)

(t)

(lbs)

A

B

C

D

E

F

H

L

N

C

A

LG-SS-F-2150-BTDS-3/16

3/16

1/3

0.06

0.38

0.25

0.88

0.19

0.6

0.56

1.47

0.98

0.19

0.06

0.06

LG-SS-F-2150-BTDS-1/4

1/4

1/2

0.11

0.47

0.31

1.13

0.25

0.78

0.61

1.84

1.28

0.25

0.06

0.06

LG-SS-F-2150-BTDS-5/16

5/16

3/4

0.22

0.53

0.38

1.22

0.31

0.84

0.75

2.09

1.47

0.31

0.06

0.06

LG-SS-F-2150-BTDS-3/8

3/8

1

0.33

0.66

0.44

1.44

0.38

1.03

0.91

2.49

1.78

0.38

0.13

0.06

LG-SS-F-2150-BTDS-7/16

7/16

1-1/2

0.49

0.75

0.5

1.69

0.44

1.16

1.06

2.91

2.03

0.44

0.13

0.06

LG-SS-F-2150-BTDS-1/2

1/2

2

0.79

0.81

0.64

1.88

0.5

1.31

1.19

3.28

2.31

0.5

0.13

0.06

LG-SS-F-2150-BTDS5/8-

5/8

3-1/4

1.68

1.06

0.77

2.38

0.63

1.69

1.5

4.19

2.94

0.69

0.13

0.06

LG-SS-F-2150-BTDS-3/4

3/4

4-3/4

2.72

1.25

0.89

2.81

0.75

2

1.81

4.97

3.5

0.81

0.25

0.06

LG-SS-F-2150-BTDS-7/8

7/8

6-1/2

3.95

1.44

1.02

3.31

0.88

2.28

2.09

5.83

4.03

0.97

0.25

0.06

LG-SS-F-2150-BTDS-1/1

1

8-1/2

5.66

1.69

1.15

3.75

1

2.69

2.38

6.56

4.69

1.06

0.25

0.06

LG-SS-F-2150-BTDS-1-1/8

1-1/8

9-1/2

8.27

1.81

1.25

4.25

1.13

2.91

2.69

7.47

5.16

1.25

0.25

0.06

LG-SS-F-2150-BTDS-1-1/4

1/1/4

12

11.71

2.03

1.4

4.69

1.29

3.25

3

8.25

5.75

1.38

0.25

0.06

LG-SS-F-2150-BTDS-1-3/8

1-3/8

13-1/2

15.83

2.25

1.53

5.25

1.42

3.63

3.31

9.16

6.38

1.5

0.25

0.13

LG-SS-F-2150-BTDS-1-1/2

1-1/2

17

19

2.38

1.66

5.75

1.53

3.88

3.63

10

6.88

1.62

0.25

0.13

LG-SS-F-2150-BTDS-1-3/4

1-3/4

25

33.91

2.88

2.04

7

1.84

5

4.19

12.34

8.8

2.25

0.25

0.13

LG-SS-F-2150-BTDS-2/1

2

35

52.25

3.25

2.3

7.75

2.08

5.75

4.81

13.68

10.15

2.4

0.25

0.13

LG-SS-F-2150-BTDS-2-1/2

2-1/2

55

98.25

4.13

2.8

10.5

2.71

7.25

5.69

17.9

12.75

3.13

0.25

0.25

LG-SS-F-2150-BTDS-3-1

3

85

154

5

3.3

13

3.12

7.88

6.5

21.5

14.62

3.62

0.25

0.25

LG-SS-F-2150-BTDS-3-1/2

3-1/2

120

265

5.25

3.76

14.63

3.62

9

8

24.88

17.02

4.38

0.25

0.25

LG-SS-F-2150-BTDS-4/1

4

150

338

5.5

4.26

14.5

4

10

9

25.68

18

4.56

0.25

0.25
