DIN580 Eye Bolt

  • Description

DIN580 Eye Bolt,DIN 580 Lifting Eye Bolt – China LG Supply



Description

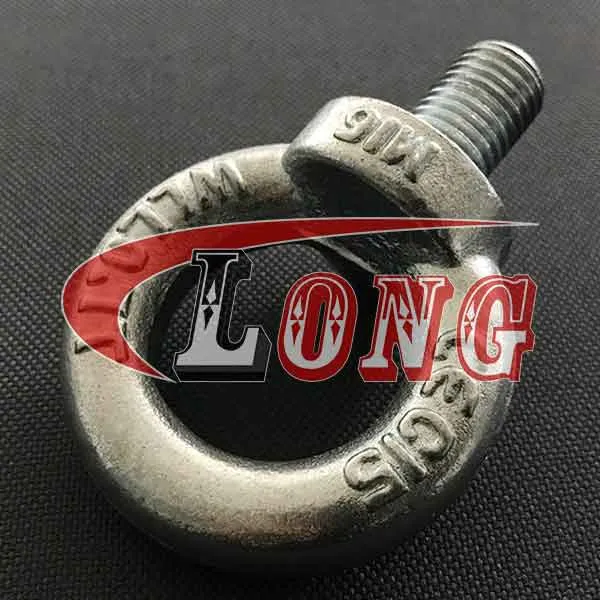

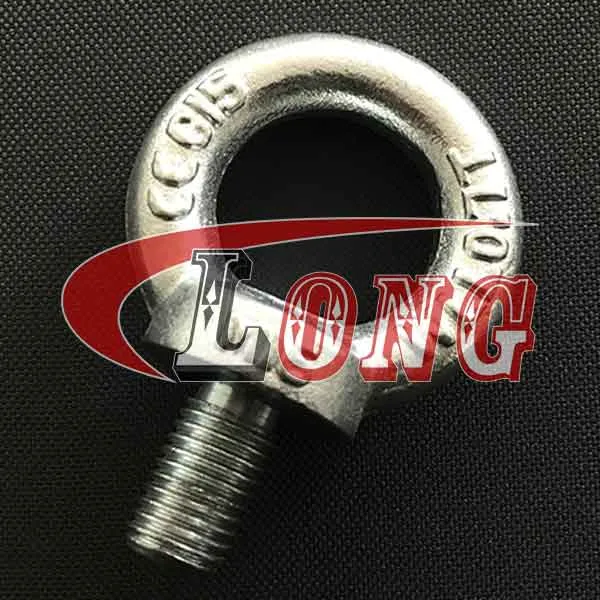

DIN580 Eye Bolt,also known as lifting eye bolt, made of superior mild steel, after drop forged .The finish we have is Zinc plated,Hot dip galvanized and self-colored,we also have stainless steel DIN 580 eye bolt .

About the DIN 580 eye bolt size,we have M8 , M10 , M12 , M14 , M16 , M20 , M22 , M24 , M27 , M30 , M33 , M36 , M39 , M42 , M45 , M48 , M52 , M56 , M64 , M72x6 , M80x6 , M100x6 . And we can also made it as per your drawing.

Lifting Eye Bolts are designed to provide a lifting point to attach a hook or rope prior to lifting heavy objects. They are suitable for outdoor environments. Our these Lifting Eye Bolts are strong and robust, and correspond to standard sheet DIN580.

The following guidelines of lifting eye bolts DIN 580 the have to be observed in addition to the load values given in the above table.

The eye bolt must be of fully screwd in to achieve a perfect contact between the two mating faces.

Both threads must be of a equal length and the base material of equal strength to that of the bolt.

Operating instructions with more details and specifications are included with every delivery (see also www.ganternorm.com/en/service).



Technical & Application

Technical NotesTo  DIN580
MaterialSuper Mild Steel
ProcessingDrop Forged
FinishZinc plated , Hot dipped galvanized , Self-color
SizeM8 , M10 , M12 , M14 , M16 , M20 , M22 , M24 , M27 , M30 , M33 , M36 , M39 , M42 , M45 , M48 , M52 , M56 , M64 , M72x6 , M80x6 , M100x6
NoteNever to be used for overhead lifting



Specification

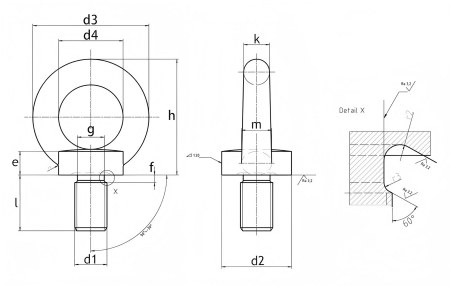

DIN580 Eye Bolt China manufacturer

l – length of bolt
d2 – head diameter
h – height
D4 – diameter of the eye
D3 – the outer diameter of the eye
E – Foot height screw
k – width of the eye
D1 – the nominal diameter of the thread
F – undercut length

Part No.Threadsize(d1)

/Parameter

d2d3d4efg(h13)hkl(±1IT15)mr1r2r3Weight
(kg/pc)
LG-580-EB-M8M820362062,5636813104110,06
LG-580-EB-M10M10254525837,7451017124110,11
LG-580-EB-M12M12305430103,59,4531220,514621,20,18
LG-580-EB-M16M163563351241362142716621,20,28
LG-580-EB-M20M2040724014516,471163019821,60,45
LG-580-EB-M24M2450905018619,69020362412220,74
LG-580-EB-M30M3065108602272510924452815321,66
LG-580-EB-M36M36751267026830,312828543218322,65
LG-580-EB-M42M42851448030635,61473263382032,54,03
LG-580-EB-M48M48100166903510411683868462242,56,38
LG-580-EB-M56M56110184100381148,318742785025438,8
LG-580-EB-M64M64120206110421255,7208489058254312,4
LG-580-EB-M72M72x6150260140501263,72606010072354323,3
LG-580-EB-M80M80x6170296160551271,72986811280354334,2
LG-580-EB-M100M100x6190330180601291,73307513088404349,1



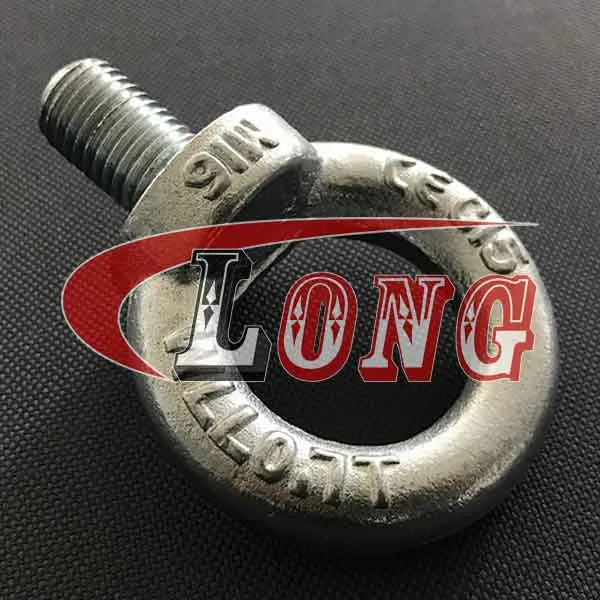

Details – DIN580 Eye Bolt,DIN580 Lifting Eye Bolt

din580 eye bolt lifting eye bolt

din580 eye bolt lifting eye bolt

din580 eye bolt lifting eye bolt

din580 eye bolt lifting eye bolt

din580 eye bolt lifting eye bolt



WARNING: The eye bolt must be of fully screwd in to achieve a perfect contact between the two mating faces. When two lifting eyes are used their mutual position shall result in the two eyes at the same level. Larger angle between the slings than 90° are not tolerated.



More Eye Bolts & Eye Nuts are available, Pls Click Here.





If you need help determining the right assembly or size for your application, e-mail our specialists at sales@lg-lifting.com for assistance. 🙂
