Information of LGRIG® Stag Horn Type Bollard

Brand	LGRIG®
Material	Cast Steel
Style	Stag Horn Type Bollard

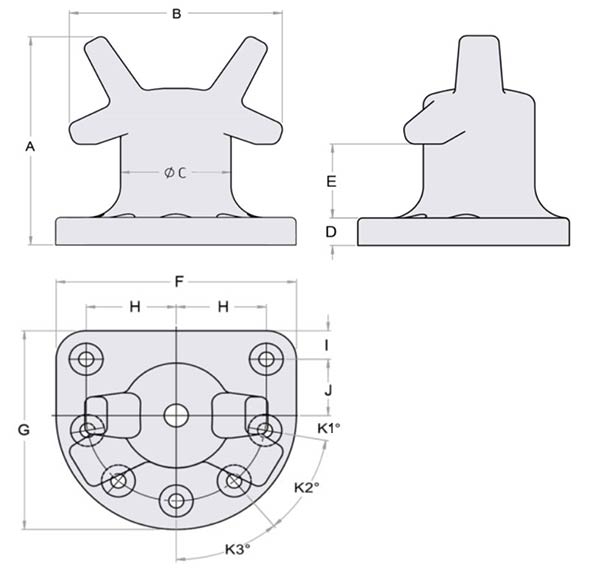

Specification of LGRIG® Stag Horn Type Bollard

Part No.	Capacity (Tons)	A	B	C	D	E	F	G	H	I	J	K1	K2	K3	Bolt
LGBSHT010	10T	320	320	160	40	125	320	270	120	40	70	30	60	-	M20*5(450mm)
LGBSHT015	15T	385	410	210	45	145	420	355	160	50	95	30	60	-	M24*5(500mm)
LGBSHT020	20T	400	415	210	50	150	530	365	165	50	100	30	60	-	M24*5(500mm)
LGBSHT030	30T	430	455	230	55	165	450	380	170	55	100	30	60	-	M30*5(600mm)
LGBSHT050	50T	525	500	300	65	195	620	525	240	70	145	30	60	-	M36*6(700mm)
LGBSHT075	75T	580	630	320	75	215	650	550	255	70	155	15	50	25	M42*6(800mm)
LGBSHT100	100T	660	730	370	80	250	780	660	300	90	170	10	40	40	M42*7(800mm)
LGBSHT125	125T	705	790	400	85	275	840	710	320	100	190	10	40	40	M48*7(900mm)
LGBSHT150	150T	750	850	430	90	290	900	760	350	100	210	10	40	40	M48*7(900mm)
LGBSHT200	200T	800	900	460	100	310	990	850	380	115	245	38	36	18	M56*8(1000mm)
