Stainless Steel Oblong Pad Eye Plate with Ring

Stainless steel oblong pad eye plate with ring, feature a smooth and shiny electro polished finish for added corrosion resistance. Oblong Eye Plates are commonly used in shade structures, architectural rigging, wire rope, marine, and general purpose applications.

Stainless Steel Diamond Pad Eye, also known as diamond eye plate stainless steel. Also referred to as a deck plate, mooring plate or eye plate.

Diamond Pad Eye Plate, made from marine grade stainless steel AISI304 or AISI316, for maximum corrosion resistance and durability, has 4 countersunk fixing holes for securing your boat securely, for easy installation.

Diamond pad eye stainless steel, use with Turnbuckles, D shackle and spring hooks to connect to your sunshade sails.

The Heavy Duty Diamond Pad Eye is precision cast and easily installed. For maximum load distribution, use it with the heavy duty back plate.

Suitable for indoor and outdoor applications.We have a wide range of pad eyes with larger sizes being used when needing to spread the load over a wider area.

Pls note that the mounting hardware not included.

Our range of diamond pad eye is available in standard 5mm, 6mm, 8mm, 10mm , 12mm as well as customized sizes.

Get A Quote
Products
Trawling Gear
Fishing Net Float & Buoy
Trawling Swivel
Trawling Shackle
Grade80 / Grade100
Rope Thimbles
Rope Splicing Spike
Hooks / Links / Rope Fittings
Trawling Chain
Lifting Sling
Trawl Block
Wire / Chain Toggles
Anchors & Fittings
Dock Products
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Black Coated Eye Strap Staple
Chain Plate Hook Galvanised
Galvanised Ring on Plate
Galvanised Staple on Plate
Mini Lashing D Ring on Plate
Stainless Steel Round Pad Eye Plate with Ring
Stainless Steel Round Eye Plate with Threaded Stud
Stainless Steel Square Eye Plate
Stainless Steel Diamond Pad Eye Diamond Eye Plate
Stainless Steel Oblong Pad Eye, Oblong Eye Plate
Stainless Steel Oblong Pad Eye Plate with Ring
Stainless Steel Round Pad Eyes of Eye Plate
Stainless Steel Square Ring Plate of Eye Plate
Stainless Steel Diamond Pad Eye with Ring of Eye Plate
Stainless steel Square Swivel Pad Eye of Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture

Information of Stainless Steel Oblong Pad Eye Plate with Ring

Material

Stainless steel AISI 304 / AISI316

Processing

Stamping / Machining / Welding

Finish

Highly-Polishing

Size

5mm, 6mm, 8mm, 9mm

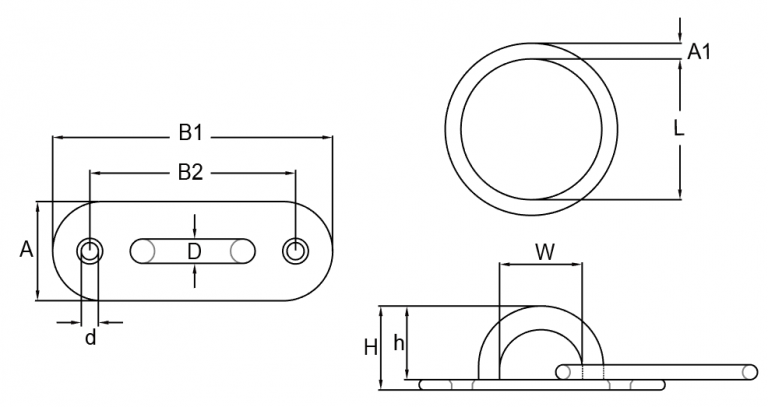

Specifications of Stainless Steel Oblong Pad Eye Plate with Ring

Specifications of Stainless Steel Oblong Pad Eye Plate with Ring


Part No.

D

B1

B2

H

h

A

d

W

A1

L

WT


mm

kgs

LG-SS-OPE+R-05

5

45

31

20

12

15

4.5

10

5

30

0.035

LG-SS-OPE+R-06

6

60

43

26

17

20

4.5

17

6

35

0.063

LG-SS-OPE+R-08

8

80

56

32

21

26

6.2

21

8

45

0.136

LG-SS-OPE+R-09

9

100

70

39

27

36

6.2

26

10

50

0.217


Bulk Photos of Stainless Steel Oblong Pad Eye Plate with Ring

bulk photos of stainless steel oblong pad eye plate with ring
We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86-0532-66851176
E-mail:
Add:
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
Request a Free Quote
Upload
or drag files here.

Related Eye Plate

Stainless steel Square Swivel Pad Eye of Eye Plate
Stainless steel Square Swivel Pad Eye of Eye Plate
Galvanised Ring on Plate
Galvanised Ring on Plate
Stainless Steel Round Eye Plate with Threaded Stud
Stainless Steel Round Eye Plate with Threaded Stud
Stainless Steel Diamond Pad Eye with Ring of Eye Plate
Stainless Steel Diamond Pad Eye with Ring of Eye Plate
Stainless Steel Round Pad Eyes of Eye Plate
Stainless Steel Round Pad Eyes of Eye Plate
Stainless Steel Round Pad Eye Plate with Ring
Stainless Steel Round Pad Eye Plate with Ring
Stainless Steel Square Ring Plate of Eye Plate
Stainless Steel Square Ring Plate of Eye Plate
Black Coated Eye Strap Staple
Black Coated Eye Strap Staple
China LG RIGGING's Updates
The Crucial Link Between the Lifespan of Ropes and the Rope Thimble
25
Apr
2024
The Crucial Link Between the Lifespan of Ropes and the Rope Thimble Learn More
Galvanized Vs. Stainless Steel Rope Thimbles: A Comparative Study
18
Apr
2024
Galvanized Vs. Stainless Steel Rope Thimbles: A Comparative Study Learn More
How to Properly Use a Rope Thimble: a Step-by-Step Guide
11
Apr
2024
How to Properly Use a Rope Thimble: a Step-by-Step Guide Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware
Resources
FAQs About LG RIGGING® Document Download Blog
About
Company News Industry News
Contact Us
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
sales@lg-lifting.com
+86-0532-66851176
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86-0532-66851176
