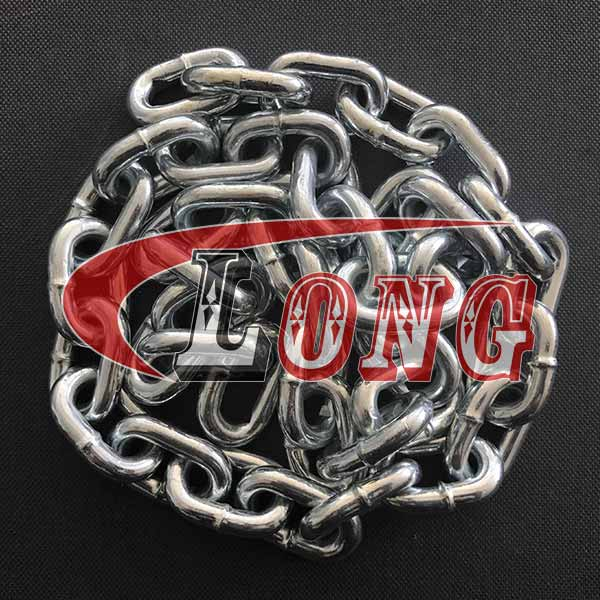

Calibrated Anchor Chain DIN 766

Calibrated Anchor Chain also known as calibrated galvanized anchor chain, this one is conform to DIN 766.

DIN 766 is an agreed metric for chain link dimensions. This trawling chain is now an industry standard and all windlass manufacturers build their product to suit this size chain.

Calibrated Anchor Chain DIN 766 size refers to the diameter of the link material. Also available in AISI 304/ AISI316 Marine Grade Stainless Steel. General: Use for anchor chain, barrier, insurance against burglary, common nonlifting assignments.

Our range of size include 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm.

8mm calibated anchor chain, 10mm calibrated galvanized anchor chain is hot selling of this series.

Trawling Gear
Shackles
Boat Fittings

Information of Calibrated Anchor Chain DIN 766

Technical Notes

To DIN 766

Material

Superior Mild Steel

Processing

Welded + Deburring

Finish

Zinc Plated / Electrophoretic Coating

Size

4mm, 5mm, 6mm, 7mm, 8mm, 9mm

10mm, 11mm, 12mm, 13mm, 14mm

Note

NOT FOR OVERLOAD LIFTING



Specifications of Calibrated Anchor Chain DIN 766

Part No.

SIZE

INSIDE LENGTH

INSIDE WIDTH

OUTSIDE WIDTH

LENGTH PER 11LINKS

WEIGHT PER M


MM

+/-MM

MM

+MM

-MM

MM

MM

MM

+MM

-MM

KG

LG-766-C-05

5

0.2

18.5

0.4

0.2

6

17

203.5

2.4

1.2

0.5

LG-766-C-06

6

0.2

18.5

0.4

0.2

7.2

20.2

203.5

2.4

1.2

0.8

LG-766-C-07

7

0.3

22

0.4

0.2

8.4

23.8

242

3

1.4

1.1

LG-766-C-08

8

0.3

24

0.4

0.2

9.6

27.2

264

3.2

1.5

1.4

LG-766-C-09

9

0.4

27

0.5

0.3

10.8

30.6

297

3.6

1.8

1.8

LG-766-C-10

10

0.4

28

0.5

0.3

12

34

308

3.7

1.9

2.2

LG-766-C-11

11

0.4

31

0.5

0.3

13.2

37.4

341

4

2

2.7

LG-766-C-12

12

0.3

36

0.6

0.3

14.4

40.8

396

4.4

2.2

3.1

LG-766-C-13

13

0.5

36

0.6

0.3

15.6

44.2

396

4.6

2.4

3.8


Bulk Photos of Calibrated Anchor Chain DIN 766

bulk photos of calibrated anchor chain din 766
