Italy Type Turnbuckle Eye and Hook

China LG Supply can provide you high quality Italy Type Turnbuckles. The turnbuckles are manufactured using superior grade raw material as per international qualitative standards. Our range of Italy Turnbuckles is available in standard as well as customized sizes.

Trawling Gear
Boat Fittings

Information of Italy Type Turnbuckle Eye and Hook

  • Made by Forged Carbon Steel

  • Heat Treated – Quenched and Tempered.

  • Galvanized or Zinc Plated.

  • Special specifications and marks can be made according to customer’s requirement.

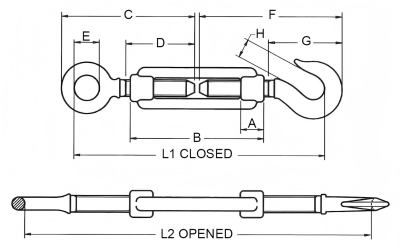

Specifications of Italy Type Turnbuckle Eye and Hook

Specifications of Italy Type Turnbuckle Eye and Hook


No.

Size

A

B

C

D

E

F

G

H

L1

L2

S.W.L.

Weight

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

kg

kg

LGITTEH101

M5

9

79

59

40

8

62

40

6

120

170

50

0,05

LGITTEH102

M6

10

88

74

50

10

76

50

8,5

143

205

75

0,06

LGITTEH103

M8

12

110

80

52

11

89

52

10

162

237

165

0,12

LGITTEH104

M10

15

130

97

60

14

103

62

12

196

277

235

0,24

LGITTEH105

M11

17,5

135

102

65

15

112

65

12,5

207

292

280

0,33

LGITTEH106

M12

18

140

106

67

17

121

65

16

223

310

320

0,38

LGITTEH107

M14

20

170

126

83

18

144

82

16

262

378

420

0,56

LGITTEH108

M16

22,5

190

160

97

23

172

105

16,5

296

420

530

0,94

LGITTEH109

M18

27

200

178

112

25

183

110

17

326

455

630

1,35

LGITTEH110

M20

30

220

190

116

25

185

110

17,5

342

475

730

1,48

LGITTEH111

M22

36

220

200

120

30

216

125

23

330

450

1120

2,13

LGITTEH112

M24

39

255

210

125

34

225

135

23

405

570

1550

2,84

LGITTEH113

M27

45

255

236

150

34

250

135

29

445

585

1870

3,89

LGITTEH114

M30

45

255

240

150

38

250

145

29

450

595

2240

4,15

LGITTEH115

M33

45

255

242

150

39

250

145

29

451

596

2850

5,88

LGITTEH116

M36

55

295

276

160

48

284

170

30

516

676

3530

7,53

LGITTEH117

M39

63

330

276

165

48

288

170

30

519

700

4150

9,82


We also carry Italy Type Turnbuckles with following ends:

Eye and Eye;

Hook and Hook;

Jaw and Jaw.


China LG Supply offers a wide variety of fittings and assemblies in wire rope turnbuckles.

We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
