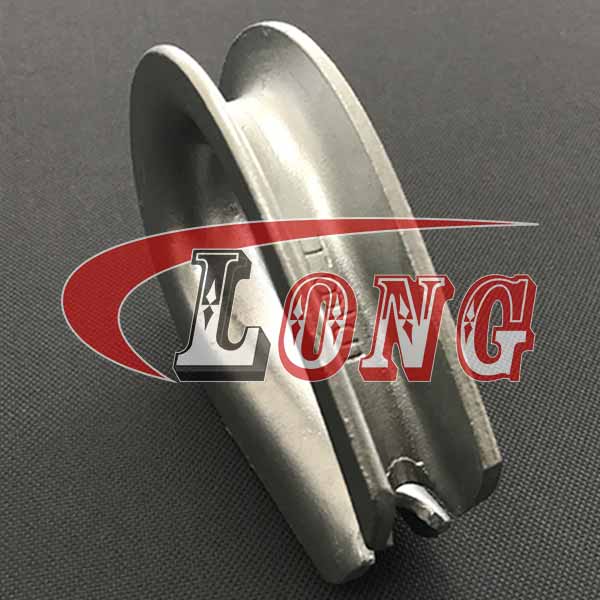

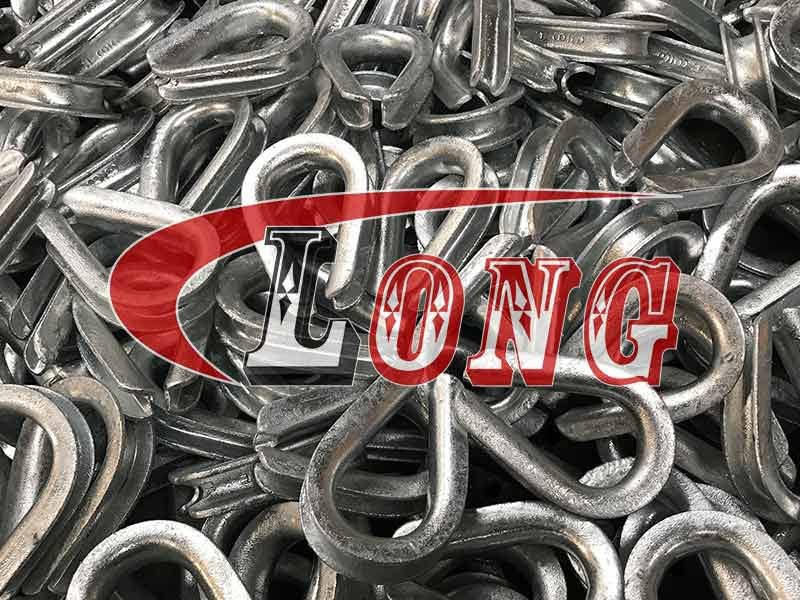

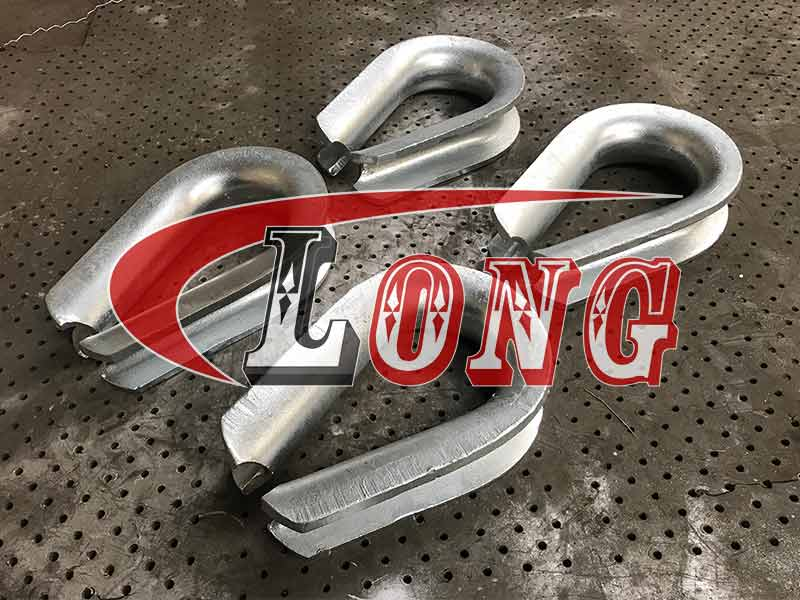

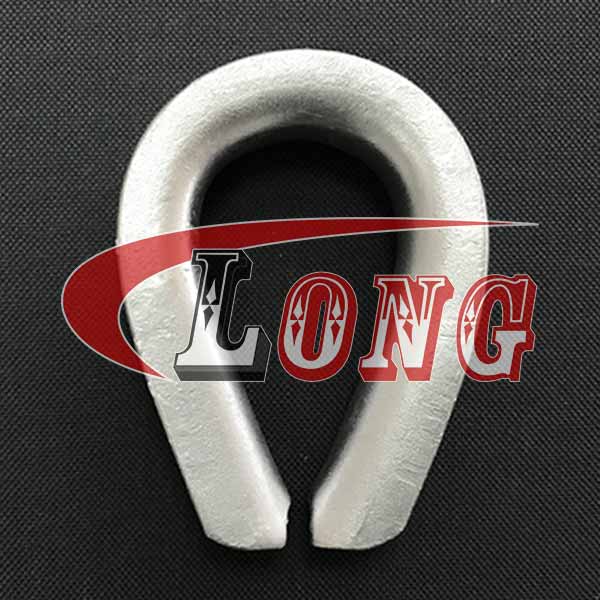

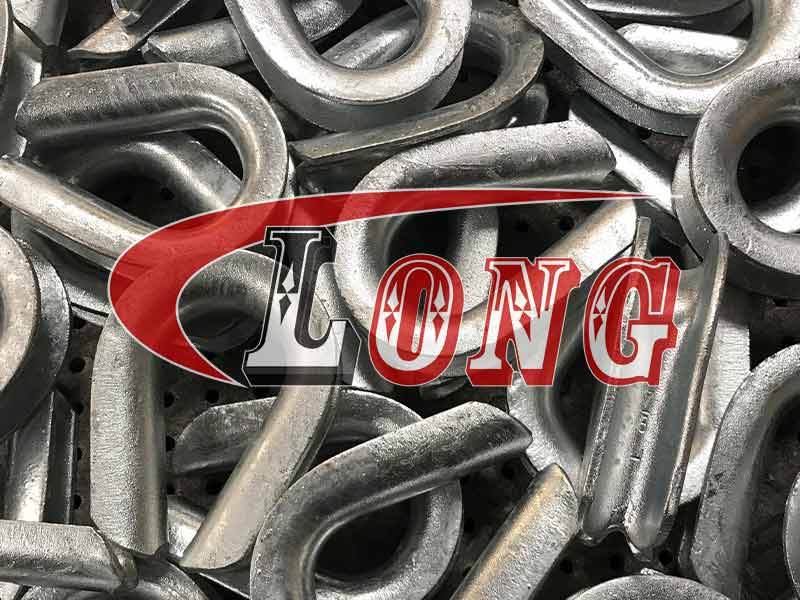

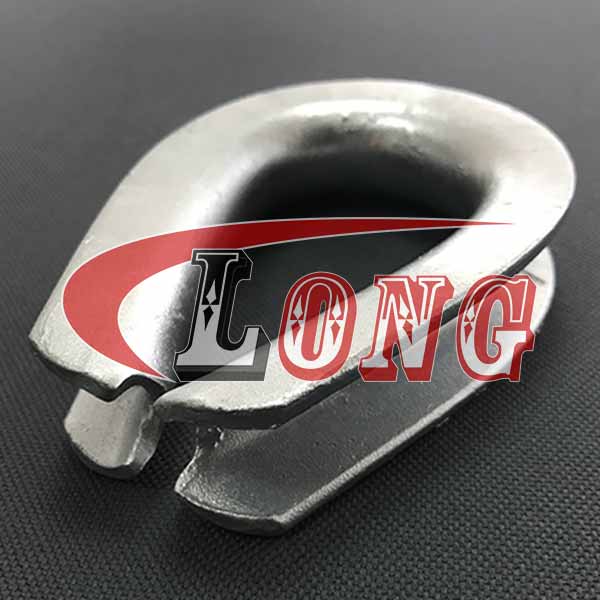

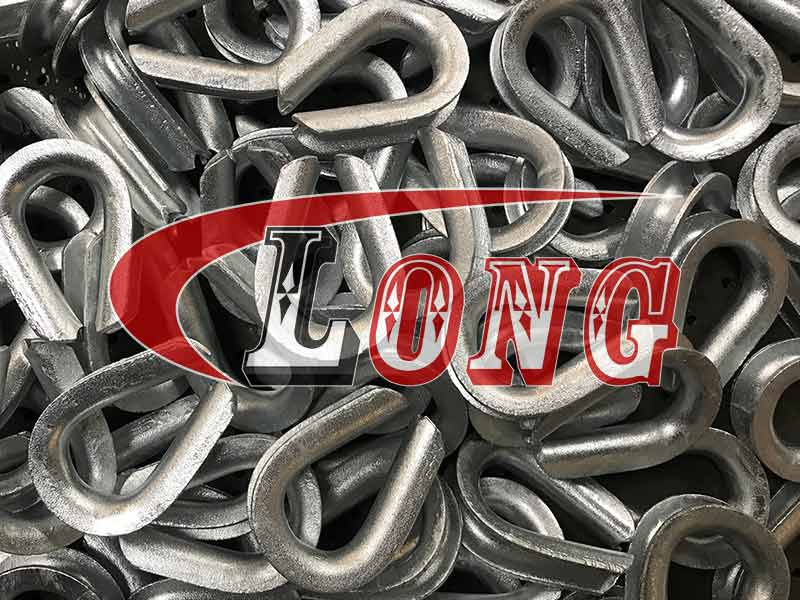

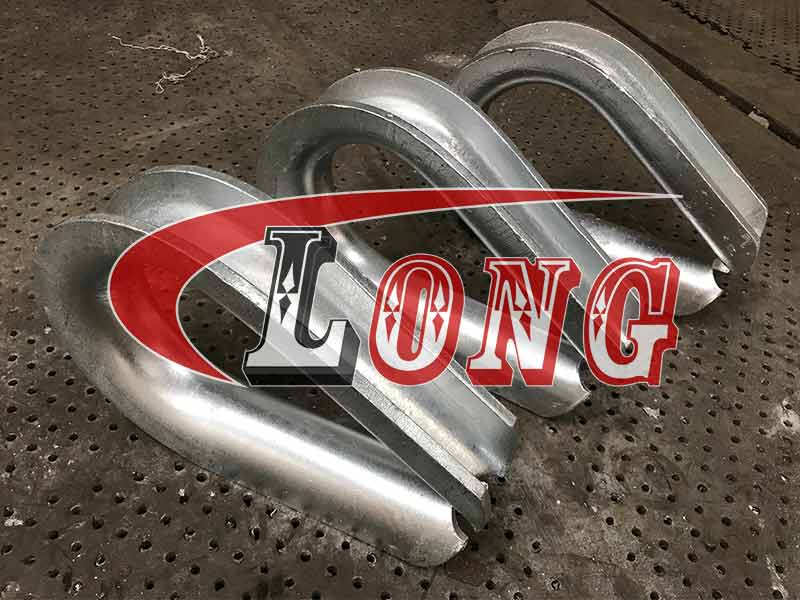

Heavy duty wire rope thimbles, also known as US type heavy duty wire rope thimble.

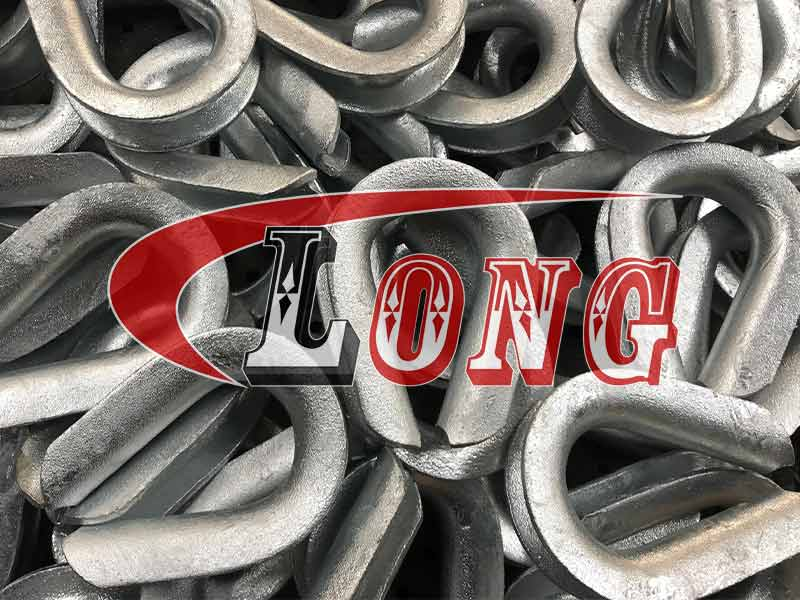

This US type wire rope thimble is made of superior mild steel, conforms to US Federal Specification, it’s heavy duty G-414, which are hot dipped galvanized for excellent protection from corrosive elements.

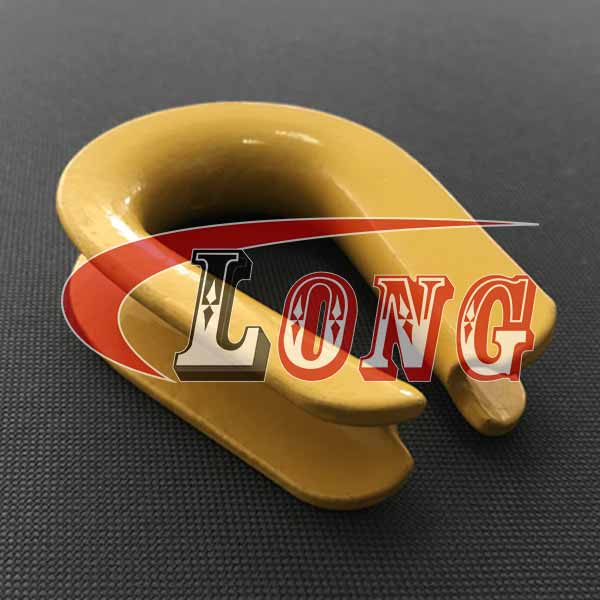

The surface finish we have is Electric Galvanized, Hot Dipped Galvanized and Powder Coated.
Our heavy duty thimbles are made to meet or exceed US Federal Speification FF-T-276b, Type III.
Heavy duty wire rope thimble ‘s size is 1/4”, 5/16”, 3/8”, 7/16”, 1/2”-9/16”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”-1-1/4”, 1-1/4”-1-3/8”, 1-3/8”-1-1/2”, 5/8”, 3/4”, 1-7/8”-2”, 2-1/4”.
Part No. | Rope Dia. | Weight/100 (lbs) | Dimensions | |||||||
A | B | C | D | E | F | G | H | |||
LG-G414-Tb-1/4 | 1/4 | 6.5 | 2.19 | 1.62 | 1.5 | 0.88 | 0.41 | 0.28 | 0.06 | 0.25 |
LG-G414-Tb-5/16 | 5/16 | 11.8 | 2.5 | 1.88 | 1.81 | 1.06 | 0.5 | 0.34 | 0.08 | 0.3 |
LG-G414-Tb-3/8 | 3/8 | 21.6 | 2.88 | 2.12 | 2.12 | 1.12 | 0.63 | 0.41 | 0.11 | 0.39 |
LG-G414-Tb-7/16 | 7/16 | 34.7 | 3.25 | 2.38 | 2.38 | 1.25 | 0.72 | 0.47 | 0.12 | 0.45 |
LG-G414-Tb-1/2 | 1/2 – 9/16 | 51 | 3.62 | 2.75 | 2.75 | 1.5 | 0.89 | 0.59 | 0.15 | 0.48 |
LG-G414-Tb-5/8 | 5/8 | 75.7 | 4.25 | 3.25 | 3.12 | 1.75 | 1 | 0.66 | 0.16 | 0.53 |
LG-G414-Tb-3/4 | 3/4 | 158.1 | 5 | 3.75 | 3.81 | 2 | 1.22 | 0.78 | 0.22 | 0.69 |
LG-G414-Tb-7/8 | 7/8 | 177.8 | 5.5 | 4.25 | 4.25 | 2.25 | 1.38 | 0.94 | 0.22 | 0.78 |
LG-G414-Tb-1/1 | 1 | 313.9 | 6.12 | 4.5 | 4.75 | 2.5 | 1.56 | 1.06 | 0.25 | 0.88 |
LG-G414-Tb-1-1/8 | 1-1/8-1-1/4 | 400 | 7 | 5.12 | 5.88 | 2.88 | 1.81 | 1.31 | 0.25 | 1.25 |
LG-G414-Tb-1-1/4 | 1-1/4-1-3/8 | 811 | 9.08 | 6.5 | 6.81 | 3.5 | 2.19 | 1.44 | 0.37 | 1.29 |
LG-G414-Tb-1-3/8 | 1-3/8-1-1/2 | 1294.8 | 9 | 6.25 | 7.12 | 3.5 | 2.56 | 1.56 | 0.5 | 1.31 |
LG-G414-Tb-5/8 | 1-5/8 | 1700 | 11.25 | 8 | 8.12 | 4 | 2.72 | 1.72 | 0.5 | 1.38 |
LG-G414-Tb-3/4 | 1-3/4 | 1775 | 12.19 | 9 | 8.5 | 4.5 | 2.84 | 1.84 | 0.5 | 1.5 |
LG-G414-Tb-1-7/8 | 1-7/8 – 2 | 2775 | 15.12 | 12 | 10.38 | 6 | 3.09 | 2.09 | 0.5 | 1.69 |
LG-G414-Tb-2-1/4 | 2-1/4 | 3950 | 17.5 | 14 | 11.88 | 7 | 3.62 | 2.38 | 0.62 | 1.82 |
Technical Notes | Conform to U.S. Federal Specification Heavy Duty (Federal Specification FF-T-276b Type III) |
Material | Superior Mild Steel |
Processing | Machining |
Finish | Electric Galvanized / Hot Dipped Galvanized / Powder Coated |
Size | 1/4”, 5/16”, 3/8”, 7/16”, 1/2”-9/16”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”-1-1/4”, 1-1/4”-1-3/8”, 1-3/8”-1-1/2”, 5/8” , 3/4”, 1-7/8”-2”, 2-1/4” |
Tips | Color Code: Customized according to customers’ requirements |
