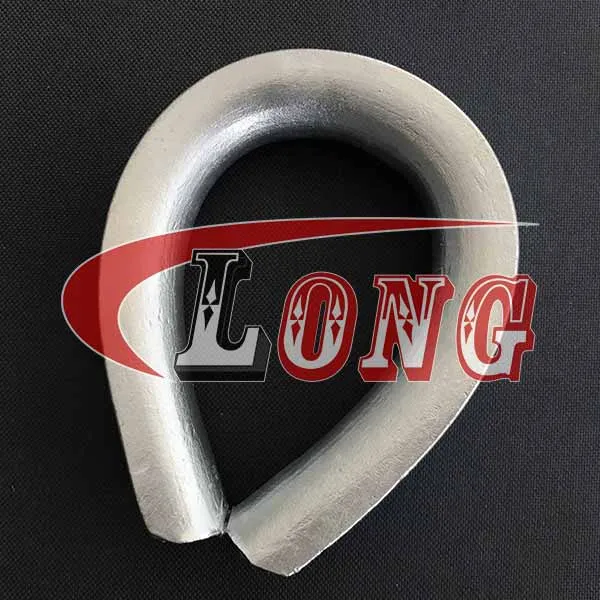

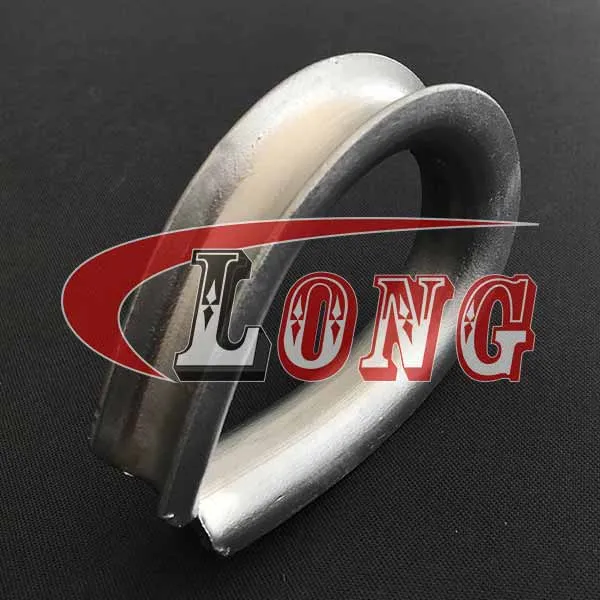

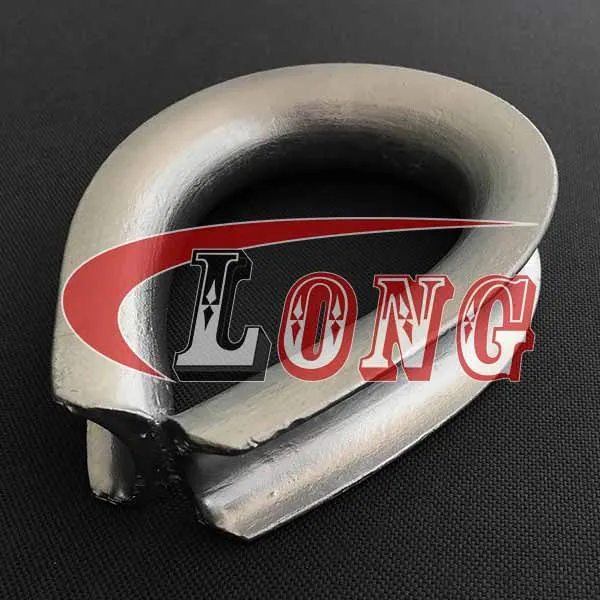

Name: JIS Standard Wire Rope Thimble
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

 Wire Rope Thimble Galvanized Commercial European Type LG RIGGING®

 Heavy Duty Wire Rope Thimble Galvanized US Type LG RIGGING®

 Wire Rope Thimble Light Duty Galvanized US Type LG RIGGING®

 Wire Rope Thimble DIN 6899 A Galvanized LG RIGGING®

 Wire Rope Thimble DIN 6899 B Galvanized LG RIGGING®

 Wire Rope Thimble BS464 Galvanised HDG EN13411-1/DIN3090 LG RIGGING®

 Wire Rope Thimble AS1138

 Tubular Thimble Galvanized without Gusset of Wire Rope Thimbles

 Tubular Thimble G2 Type for Trawling and Fishing of Wire Rope Thimbles

 Tube Thimble with Gusset TG2K LG RIGGING®

 Tubular Thimble SCG Type of Wire Rope Thimbles

 Tube Thimble without Gusset TTG7 Painted/Galvanized LG RIGGING®

 Synthetic Rope Thimble Galvanized

 Round Rope Thimble

 Manila Rope Thimble Galvanized

 DIN 3091 Solid Thimble for Wire Rope Casting

 JIS Standard Wire Rope Thimble

 K2 Heavy Duty Stub-End Thimble of Wire Rope Thimbles

 Heavy Duty Wire Rope Thimble K2-B LG RIGGING®

 K3-B Fibre rope thimble reinforced LG RIGGING®

 K3 Fibre Rope Thimble of Wire Rope Thimbles

 Galvanized Superloop Thimble Type K15 of Wire Rope Thimbles

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Information of JIS Standard Wire Rope Thimble

Made by super carbon steel.
Zinc plated finish.
JIS Standard.

Specifications of JIS Standard Wire Rope Thimble

Part No.	Size(mm)	d	B	D	D1	L1	L	t	t1
LGJIST01	6	6	8	27	16	26	36	3	1
LGJIST02	8	8	10	36	22	35	48	4	1
LGJIST03	9	9	11	40	25	38	51	4	1
LGJIST04	10	10	13	45	28	44	58	4	1.5
LGJIST05	12	12	15	54	34	52	68	5	1.5
LGJIST06	14	14	17	61	38	58	78	6	1.5
LGJIST07	16	16	20	72	44	68	92	7	2
LGJIST08	18	18	22	75	48	76	100	7	2
LGJIST09	20	20	24	86	54	85	112	8	2
LGJIST10	22	22	27	95	60	92	122	9	2.5
LGJIST11	24	24	29	105	65	102	136	10	2.5
LGJIST12	26	26	31	110	70	110	144	10	2.5
LGJIST13	28	28	33	120	75	120	156	11	2.5
LGJIST14	30	30	35	130	80	125	166	12	2.5
LGJIST15	32	32	38	140	85	135	180	13	3
LGJIST16	34	34	40	145	90	140	186	14	3
LGJIST17	36	36	42	150	95	150	196	14	3
LGJIST18	38	38	44	160	100	155	205	15	3
LGJIST19	40	40	46	170	105	165	220	16	3
LGJIST20	42	42	50	180	110	175	232	17	4
LGJIST21	44	44	52	190	115	180	242	18	4
LGJIST22	46	46	54	195	120	190	252	18	4
LGJIST23	48	48	56	205	125	195	260	19	4
LGJIST24	50	50	58	215	130	205	274	20	4
