Information of AS2741 Grade S Dee Shackle with Safety Pin & Nut

Technical Notes	Grade S Dee Shackle Safety Pin & Nut conform to AS2741
Material	Body: Superior Carbon Steel Screw Pin: Alloy Steel
Safety Factor	6: 1
Processing	Body: Drop Forged / Quenched and Tempered Screw Pin:Cold/Hot Forged / Drop Forged / Quenched and Tempered
Finish	Body: Hot Dipped Galvanized / Powder Coated Screw Pin: Zinc Plated + Powder Coated
Size	13mm, 16mm, 19mm, 22mm, 25mm, 29mm, 32mm, 35mm, 38mm, 44mm, 51mm, 57mm, 63mm
Tips	Special specification and marks can be made according to customers’ requirements

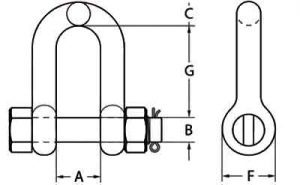

Specifications of AS2741 Grade S Dee Shackle with Safety Pin & Nut

Part No.	SIZE	WLL	WEIGHT	DIMENSIONS(mm)
	(mm)	(ton)	(kg)	A	B	C	F	G
LG-S-DS+SPN-13	13	2	0.36	21	16	13	33	41
LG-S-DS+SPN-16	16	3.2	0.76	27	19	16	40	51
LG-S-DS+SPN-19	19	4.7	1.23	32	22	19	48	60
LG-S-DS+SPN-22	22	6.5	1.79	37	25	22	54	71
LG-S-DS+SPN-25	25	8.5	2.78	43	29	25	60	81
LG-S-DS+SPN-29	29	9.5	3.75	46	32	29	67	90
LG-S-DS+SPN-32	32	12	5.31	52	35	32	76	100
LG-S-DS+SPN-35	35	13.5	6.98	57	38	35	84	113
LG-S-DS+SPN-38	38	17	9.44	60	44	38	92	124
LG-S-DS+SPN-44	44	25	15.39	73	51	44	110	146
LG-S-DS+SPN-51	51	35	23.71	83	57	51	127	171
LG-S-DS+SPN-57	57	42.5	29.01	95	63	57	143	181
LG-S-DS+SPN-63	63	55	44.58	105	70	63	152	203
