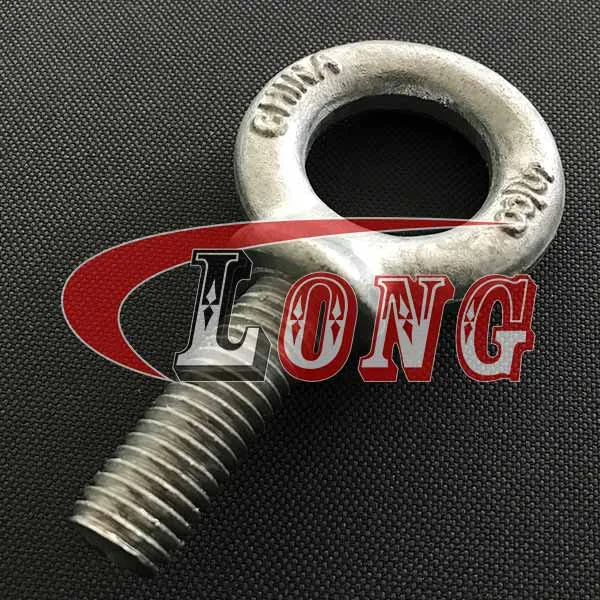

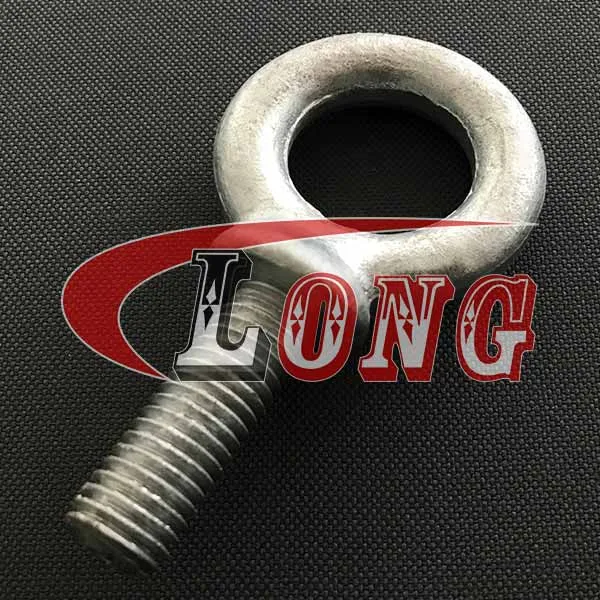

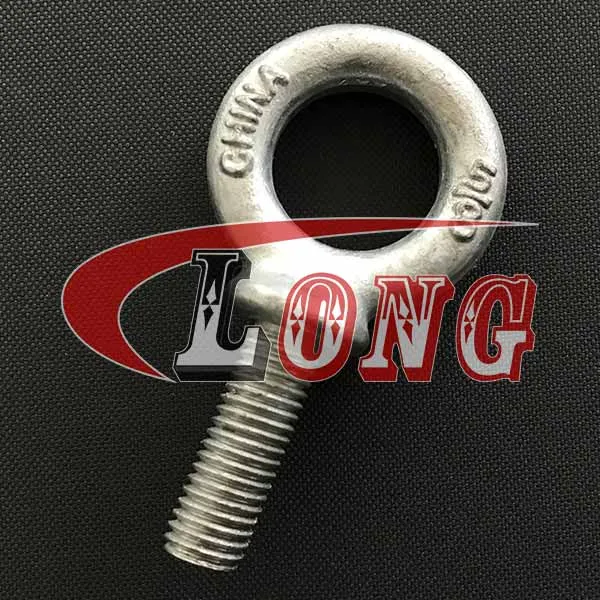

Forged Shoulder Machinery Eye Bolt S-279/M-279

Forged Shoulder Machinery Eye Bolt S-279/M-279, also known as shoulder eye bolt.

Machinery eye bolts are designed with a shoulder and rated for both in-line pulls and angular loads.

The difference between lifting eye bolts and regular and shoulder type eye bolts is that the shank and threads of the machinery eye bolt do not protrude through the base metal.

Therefore, all of the holding strength of the machinery eye bolt is on the threads.

These forged shoulder type eye bolts also meet all requirements of ASME B30.26.

Trawling Gear
Shackles
Boat Fittings

Information of Forged Shoulder Machinery Eye Bolt S-279/M-279

Technical Notes

Eye bolt meets or exceeds all requirements of ASME B30.26.

Processing

Forged, Quenched & Tempered

Finish

Electric Galvanized, Hot Dip Galvanized

Tips

Working Load Limits shown are for in-line pull.

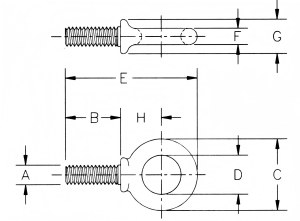

Specifications of Forged Shoulder Machinery Eye Bolt S-279/M-279

Specifications of Forged Shoulder Machinery Eye Bolt S-279/M-279


Part No.

Size

WLL (lbs.)*

Weight Per 100


(lbs.)

Dimensions (in.)

A** Thread

B

C

D

E

F

G

H

LGS279EB101

1/4×1

650

5.00

1/4 – 20

1.02

1.13

0.75

2.29

0.19

0.53

0.77

LGS279EB102

5/16 x 1-1/8

1200

9.00

5/16-18

1.15

1.38

0.88

2.74

0.25

0.59

0.95

LGS279EB103

3/8 x 1-1/4

1550

15.00

3/8 – 16

1.27

1.62

1.00

3.07

0.31

0.69

1.05

LGS279EB104

1/2 x 1-1/2

2600

28.00

1/2-13

1.53

1.95

1.19

3.70

0.38

0.91

1.27

LGS279EB105

5/8 x 1-3/4

5200

55.00

5/8-11

1.79

2.38

1.38

4.45

0.50

1.13

1.53

LGS279EB106

3/4×2

7200

96.00

3/4 – 10

2.05

2.76

1.50

5.07

0.63

1.38

1.71

LGS279EB107

7/8 x 2-1/4

10600

154.00

7/8-9

2.31

3.25

1.75

5.87

0.75

1.56

2.00

LGS279EB108

1 x 2-1/2

13300

238.00

1 -8

2.57

3.76

2.00

6.66

0.88

1.81

2.30

LGS279EB109

1-1/8 x 2-3/4

15000

320.00

1-1/8-7

2.75

4.19

2.25

7.20

0.97

2.06

2.35

LGS279EB110

1-1/4 x 3

21000

399.00

1-1/4-7

3.09

4.50

2.50

7.95

1.00

2.28

2.73

LGS279EB111

1-1/2 x 3-1/2

24000

720.00

1-1/2-6

3.60

5.50

3.00

9.49

1.25

2.75

3.28

LGS279EB112

1-3/4 x 3-3/4

34000

1040.00

1-3/4 – 5

3.75

6.26

3.50

10.48

1.38

3.00

3.60

LGS279EB113

2×4

42000

1880.00

2-4-1/2

4.00

7.62

4.00

12.31

1.81

3.38

4.50

LGS279EB114

2-1/2 x 5

65000

3250.00

2-1/2-4

5.00

8.76

4.50

14.88

2.12

4.25

5.50


Specifications of Forged Shoulder Machinery Eye Bolt S-279/M-279


Part No.

Size

WLL


(kg)*

Weight Each


(kg)

Dimensions (mm)

A**


Thread

B

C

D

E

F

G

H

LGM279EB101

M6x13

200

0.03

M6x1.0

13.0

28.7

19.1

47.0

4.9

13.5

19.6

LGM279EB102

M8x13

400

0.05

M8x 1.25

13.0

35.1

22.4

54.6

6.4

15.0

24.1

LGM279EB103

M10x17

640

0.07

M10x 1.5

17.0

41.1

25.4

64.3

7.9

17.5

26.5

LGM279EB104

M12x20.5

1000

0.11

M12x 1.75

20.5

49.5

30.2

77.7

9.7

23.1

32.8

LGM279EB105

M16x27

1800

0.25

M16x2.0

27.0

60.5

35.1

96.0

12.7

28.7

38.9

LGM279EB106

M20 x 30

2500

0.42

M20 x 2.5

30.0

70.0

38.1

108

16.0

35.1

43.4

LGM279EB107

M24 x 36

4000

1.05

M24x3.0

36.0

95.5

51.0

142

22.4

46.0

58.4

LGM279EB108

M27 x 69.8

5000

1.42

M27x3.0

69.8

107

57.1

183

24.6

52.3

59.7

LGM279EB109

M30 x 45

6000

1.77

M30x3.5

45.0

114

63.5

171

25.4

58.0

69.3

LGM279EB110

M36 x 54

8500

3.12

M36x4.0

54.0

140

76.0

207

31.8

70.0

83.3

LGM279EB111

M42 x 95.2

14000

4.58

M42x4.5

95.2

159

88.9

266

35.0

76.2

91.4

LGM279EB112

M48x102

17300

8.71

M48x5.0

102

194

101

313

46.0

85.9

114

LGM279EB113

M64x127

29500

14.74

M64x6.0

127

223

114

378

53.8

108

140
