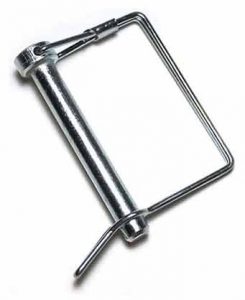

Tab Wire Lock Pin Square Type Stainless Steel – LG RIGGING®

Tab Wire Lock Pin Square Type Stainless Steel – LG RIGGING®, also known as snapper pin or square wire tab lock pin.

Tab Wire Lock Pins have a pin and cotter all in one assembly. The wire loop is pulled over the pin end to lock it in place or remove it.

This one piece fastener eliminates cotter pin loss and fits most quick release applications.Even easier to use than the standard wire lock pins. Pull up on the tab to remove, push down on the wire loop to lock.

Tab acts as a load ramp which guides wire loop to a locked position when installing.

The material of square tab lock pin is Stainless Steel (304).

The finish of square head wire lock pin highly polished.

Trawling Gear
Shackles
Boat Fittings

Information of Tab Wire Lock Pin Square Type Stainless Steel – China LG™

Material

Stainless Steel AISI304  tab wire lock pin square type


Superior Carbon Steel is also available

Processing

Stamped

Finish

Highly Polished

Size

1/4”×1-3/8”, 1/4”×1-3/4”, 1/4”×2-1/4”, 1/4”×2-1/2”, 1/4”×2-1/2”

5/16”×1-3/8”, 5/16”×1-3/4”, 5/16”×2-1/4”, 5/16”×2-1/2”, 5/16”×2-1/2”

5/16”×3”, 3/8”×1-3/8”, 3/8”×1-3/4”, 3/8”×2-1/4”, 3/8”×2-1/2”

3/8”×2-1/2”, 3/8”×3”, 1/2”×3”

Tips

Special specification and marks can be made according to customers’ requirements


Specifications of Tab Wire Lock Pin Square Type Stainless Steel – China LG™

Specifications of Tab Wire Lock Pin Square Type Stainless Steel – China LG™


Specifications of Tab Wire Lock Pin Square Type Stainless Steel – China LG™


Part No.

Pin dia

Shank length

Usable length

Wire dia

Wire clearance

Head dia

Handle type

Pcs/bag

Wgt(lbs)


/bag

LGSSTWLP010

1/4

1-5/8

1-3/8

0.091

1-5/8

9/16

RD

25

2

LGSSTWLP012

1/4

2

1-3/4

0.091

1-5/8

9/16

RD

25

2

LGSSTWLP014

1/4

2-1/2

2-1/4

0.091

1-5/8

9/16

SQ

25

2

LGSSTWLP015

1/4

2-1/2

2-1/4

0.091

1-5/8

9/16

RD

25

2

LGSSTWLP016

1/4

2-3/4

2-1/2

0.091

1-3/4

9/16

SQ

25

2

LGSSTWLP020

5/16

1-5/8

1-3/8

0.091

1-1/2

5/8

RD

25

2

LGSSTWLP022

5/16

2

1-3/4

0.091

1-1/2

5/8

RD

25

2

LGSSTWLP024

5/16

2-1/2

2-1/4

0.091

1-9/16

5/8

SQ

25

3

LGSSTWLP025

5/16

2-3/4

2-1/2

0.091

1-11/16

5/8

RD

25

3

LGSSTWLP026

5/16

2-3/4

2-1/2

0.091

1-11/16

5/8

SQ

25

3

LGSSTWLP028

5/16

3-1/4

3

0.091

1-11/16

5/8

SQ

25

4

LGSSTWLP030

3/8

1-5/8

1-3/8

0.091

1-1/2

5/8

RD

25

3

LGSSTWLP032

3/8

2

1-3/4

0.091

1-1/2

5/8

RD

25

3

LGSSTWLP034

3/8

2-1/2

2-1/4

0.091

1-1/2

5/8

SQ

25

4

LGSSTWLP035

3/8

2-3/4

2-1/2

0.091

1-5/8

5/8

RD

25

4

LGSSTWLP036

3/8

2-3/4

2-1/2

0.091

1-5/8

5/8

SQ

25

4

LGSSTWLP038

3/8

3-1/4

3

0.091

1-5/8

5/8

SQ

25

3

LGSSTWLP040

1/2

3-1/4

3

0.091

1-5/8

3/4

SQ

25

4
