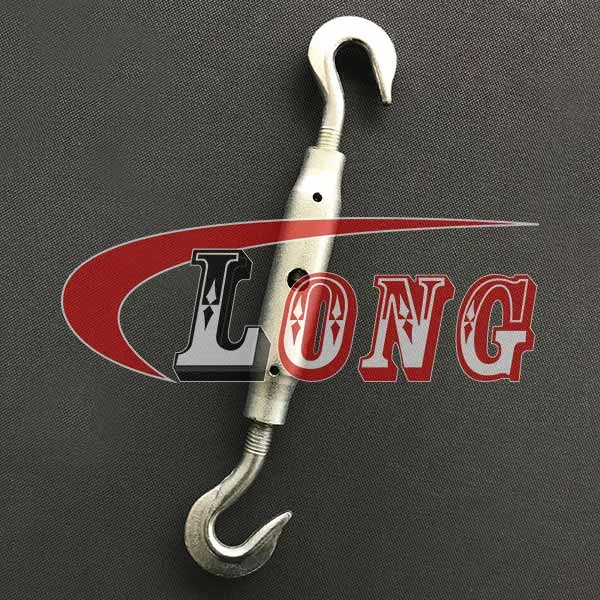

LGRIG® DIN 1478 Turnbuckle Hook-Hook Galvanized, also known as Rigging Screw, Pipe Body Turnbuckle, closed body turnbuckle, Turnbuckle Nut, Napínák navařovací, Spannschlösser, conform to DIN 1478.

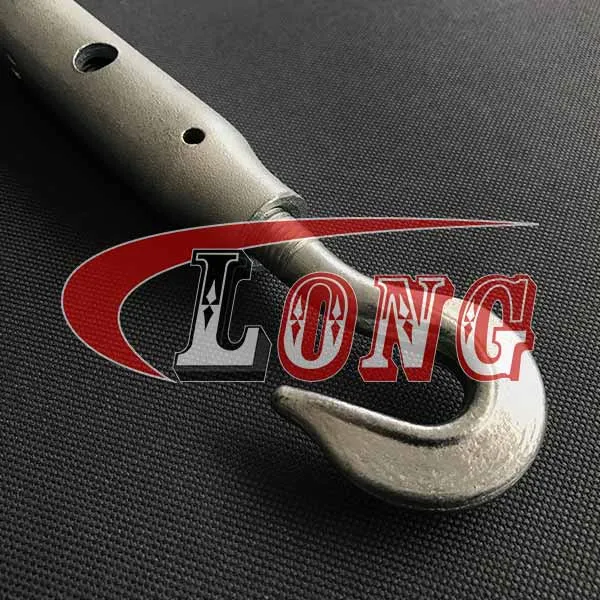

DIN 1478 closed body turnbuckle are great for architecture or marine rigging. Sight holes are provided in the bodies to verify adequate thread engagement.
The DIN 1478 pipe body turnbuckle, manufactured using superior grade raw material as per international qualitative standards.
Our range of rigging screw DIN 1478 is available in standard as well as customized sizes.
Brand | LGRIG® |
Standard | Closed body Turnbuckle To DIN1478 |
Material | Turnbuckle Body: Cold-drawn Seamless Steel Tube ( C1020 ) DIN 1478 Turnbuckle Hook and Hook Ends: C1020 / C1045 |
Finish | Zinc plated, Hot dipped galvanized |
Size | M6, M8, M10, M12, M16, M20, M24, M30, M36 DIN1478 Closed body turnbuckle |
Important Notes | Not for Lifting.Only suitable for use in tension. |
Country of Origin | China |
Tips
Turnbuckles consist of a metal frame with right hand thread one end and left hand thread the other end.
Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.

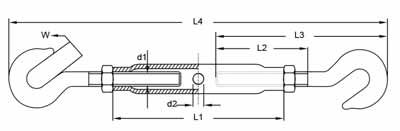

Part No. | d1 | L1 | d2 | L2 | L3 | L4 | W | Wight | |
min | max | Kg | |||||||
LG1478HH06 | M 6 | 110 | 6 | 50 | 77 | 160 | 250 | 9.5 | 0.16 |
LG1478HH08 | M 8 | 110 | 8 | 60 | 98 | 204 | 289 | 11 | 0.2 |
LG1478HH10 | M10 | 125 | 8 | 73 | 116 | 241 | 336 | 14 | 0.3 |
LG1478HH12 | M12 | 125 | 10 | 90 | 146 | 303 | 393 | 18 | 0.47 |
LG1478HH16 | M16 | 170 | 10 | 100 | 165 | 340 | 460 | 19 | 1.01 |
LG1478HH20 | M20 | 200 | 12 | 105 | 180 | 372 | 512 | 21 | 1.4 |
LG1478HH24 | M24 | 255 | 12 | 135 | 225 | 463 | 543 | 29 | 2.86 |
LG1478HH30 | M30 | 255 | 16 | 140 | 225 | 527 | 687 | 31 | 4.09 |
LG1478HH36 | M36 | 295 | 16 | 170 | 300 | 617 | 697 | 35 | 6.85 |
