Grade 70 Eye Slip Hook with Latch

Grade 70 Eye Slip Hook with Latch are versatile because of their full, wide throat. Easily hooked up to shackles, eyes or chain tied loads. Often used in towing, pulling and securing applications. These sturdy hooks meet U.S. Federal Specification for toughness and durability.

Our range of grade 70 Eye Slip hook is available in standard as well as customized sizes.

Exclusive design and spring-loaded safety latch help ensure secure attachment.

Trawling Gear
Shackles
Boat Fittings

Information of Grade 70 Eye Slip Hook with Latch

Technical Notes

U.S. Federal Specification

Material

Super Alloy Steel

Safety Factor

4: 1

Processing

Body: Drop Forged / Quenched and Tempered

Latch: Stamping

Finish

Body: Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color

Latch: Dacroment / Stainless steel

Size

1/4”, 5/16”, 3/8”, 7/16”, 1/2”

Tips

Finish: Customized according to customers’ requirements

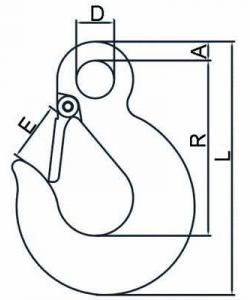

Specifications of Grade 70 Eye Slip Hook with Latch

Specifications of Grade 70 Eye Slip Hook with Latch


Part No.

Size

WEIGHT

WLL

A±0.3


(mm)

D±0.5


(mm)

R±1


(mm)

E±1


(mm)

L±1


(mm)

lbs

lbs

LG-70-ESH+L-1/4

1/4″

0.22

2750

8.5

13

65.5

18.5

93

LG-70-ESH+L-5/16

5/16″

0.3

4300

9

16

74

24.5

107

LG-70-ESH+L-3/8

3/8″

0.67

5250

10.25

18

86.5

32.5

123.8

LG-70-ESH+L-7/16

7/16″

0.71

7000

12.7

20.6

98.8

32

142.5

LG-70-ESH+L-1/2

1/2″

0.95

9000

14.5

23

109.5

41.5

156


Warning!!!

Do not exceed the working load limit.

Not to be used for overhead lifting.

The latch is only designed to retain slings and rigging attachments. The latch must not support the load.


Also available in  Eye Slip Hook with Latch Grade 43.


China LG Supply offers a wide variety of Regular Forged Hook.
