Clevis Winged Grab Hook Grade 70 Australia Standard

Clevis Winged Grab Hook Grade 70 Australia Standard, also known as clevis winged shortening grab hook.

Our This Clevis Winged Grab Hook Grade 70 combined with Grade 70 Chain are an effective way to restraint heavy loads for transport operations with the benefit of a cradle built into the hook to achieve full lashing capacity.

The hooks are manufactured using superior grade raw material as per international qualitative standards.

Our range of clevis grab hooks is available in standard as well as customized sizes.

Trawling Gear
Shackles
Boat Fittings

Information of Clevis Winged Grab Hook Grade 70 Australia Standard

Technical Notes

Shortening grab hook Comply with AS 4344

Material

Superior Alloy Steel

Processing

Drop Forged, Quenched and Tempered

Finish

Self-Colored, Electric Galvanized

Size

6mm, 8mm, 10mm, 13mm

L.C.

2300KGS,3800KGS,6000KGS,9000KGS

Tips

Suitable for use with Grade 70 chain.

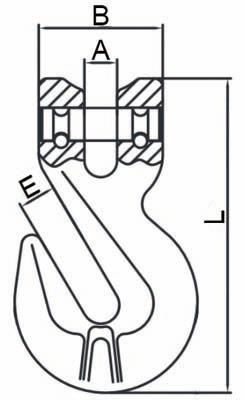

Specifications of Clevis Winged Grab Hook Grade 70 Australia Standard

Specifications of Clevis Winged Grab Hook Grade 70 Australia Standard


Part No.

N.W

L.C.

B.L

DIMENSIONS

(KG)

A(mm)

B(mm)

E(mm)

L(mm)

LGGHW-6

0.21

2300

4600

9.5

26

9.5

83

LGGHW-8

0.35

3800

7600

12

35

12

99

LGGHW-10

0.57

6000

12000

13.5

36

13.5

115

LGGHW-13

1.25

9000

18000

18

48.5

18

152


Australia Standard Hooks are also available in:

① Grade 70 Clevis Slip Hook,

② Grade 70 Clevis Slip Hook w/Latch,

③ Grade 70 Clevis Grab Hook without cradle.
