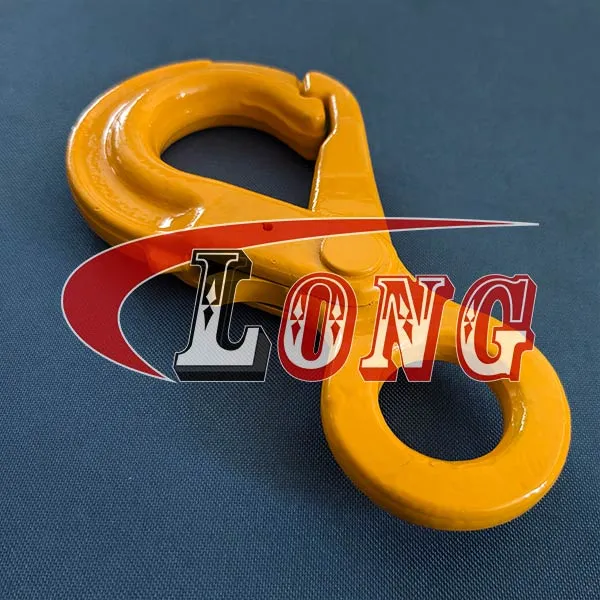

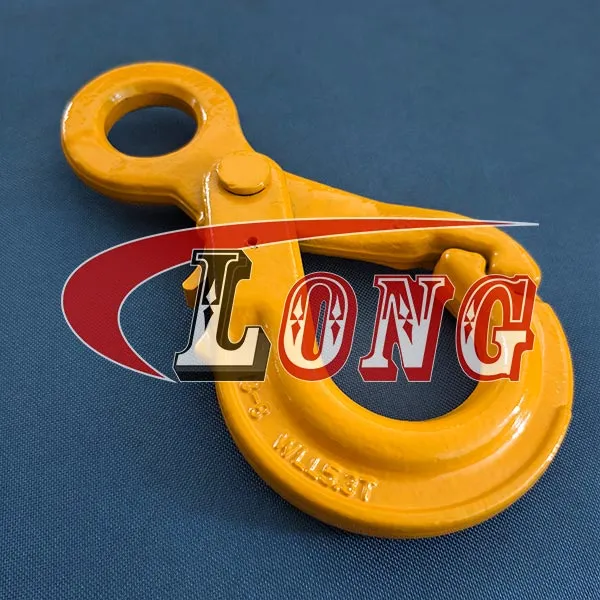

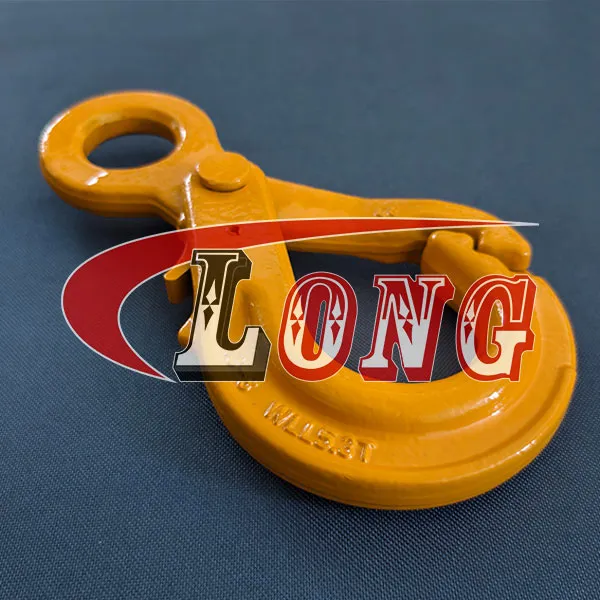

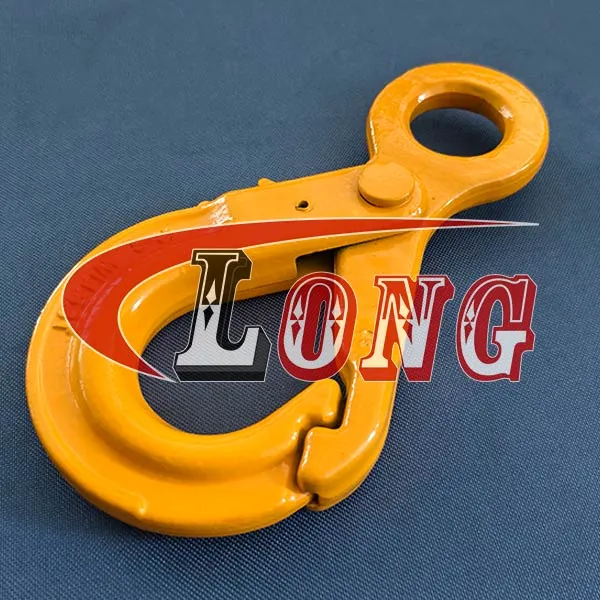

Name: LGRIG® G80 Grip Self Locking Hook Eye Type NE
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Trawling Swivel 

Hooks 

 LGRIG® SWIVEL SAFETY HOOKS BKL TYPE G100 WITH RECESSED TRIGGER

 LGRIG® SAFETY HOOKS BK EYE TYPE G100 WITH RECESSED TRIGGER

 G100 Safety Hook Eye Self Locking Hook LG RIGGING®

 Grade 100 Safety Hooks OBK with Grip Latch LG RIGGING®

 G100 Safety Hook Clevis Self Locking Hook LG RIGGING®

 Grade 100 Swivel Safety Hook LBK LG RIGGING®

 G100 Eye Foundry Hook LG RIGGING®

 Safety Hook Dacromet G80 LG RIGGING®

 LGRIG® Grade 8 Swivel Safety Hook Dacromet

 G80 Safety Hook with Swivel Eye (Improved)

 G80 Safety Hook with Swivel Eye Ball Bearing LG RIGGING®

 Grade 80 Swivel Latch Hook LKNK with Ball Bearing LG RIGGING®

 G80 Safety Hook Eye Self-locking Hook (Improved)

 LGRIG® G80 Safety Hook Clevis Self-Locking Hook (Improved)

 LGRIG® Grade 80 Swivel Hoist Hook with Latch

 LGRIG® G80 Eye Sling Hook with Latch GS Type

 LGRIG® G80 Eye Sling Hook with Safety Latch GH Type

 G80 Viking G Hook EVG Fishing & Trawling Gear LG RIGGING®

 G80 Viking G Hook EAG for Trawl and Fishing LG RIGGING®

 Viking G hook OFG Hook G80 Alloy Steel LG RIGGING®

 Viking G Hook EG Made of Cutting Steel Plate LG RIGGING®

 LGRIG® G80 Viking G Hook ELG for Trawl and Fishing

 LGRIG® Grade 8 Swivel Viking G Hook

 Stainless Steel Trawl G Hook Viking G Hook for Trawl LG RIGGING®

 Carabine Hook DIN5299 Form C Stainless Steel for Trawl LG RIGGING®

 Carabine Hook DIN 5299 with Screw Nut Stainless Steel for Trawl LG RIGGING®

 Carabine Hook with Spring Snap Stainless Steel for Trawling Gear LG RIGGING®

 S Hooks Stainless Steel for Trawl LG RIGGING®

 LGRIG® Stainless Steel Eye Hoist Hook with Latch S-320

 Stainless Steel Swivel Eye Hook with Latch for Trawling Gear LG RIGGING®

 LGRIG® G80 Grip Self Locking Hook Eye Type NE

Trawling Shackle 

Rope Thimbles 

Rings & Links 

Kelly's Eye & Stoppers 

G-Hooks & Recessed Links 

Connectors 

Tools 

Rockhopper Spare Parts 

Trawling Chain 

Synthetic Rope 

Trawl Wire 

Anchors & Fittings 

Wire Rope Clips 

Ferrules & Terminals 

Rigging Screws 

Fishing Net Float 

Fenders & Buoys 

Lashing/Slings/Load Binders 

Trawl Blocks & Pulley 

Toggles & Spacers 

Safety Appliance 

Footrope Gear 

Lifting & Rigging

 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® G80 Grip Self Locking Hook Eye Type NE

Brand	LGRIG®
Standard	EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015.
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered.
Finish	Powder Coated
Size	8mm, 10mm, 13mm, 16mm
Tips	Color Code: Customized according to customers’ requirements
Note	Use Only Grade 100 Attachments For Overhead Lifting

Specification of LGRIG® G80 Grip Self Locking Hook Eye Type NE


Part No.	WEIGHT (kg)	WLL (T)	B.L (T)	B±1	E±1	∅±1	H±1	K±2	L±1
8LGGSLHE08	0.81	2.5	10	37.5	35	45	21	136	12
8LGGSLHE10	1.41	4	16	48	46	56	30.5	169	15
8LGGSLHE13	2.61	6.7	26.8	52	56	64	39	205	20
8LGGSLHE16	4.45	10	40	67.5	86	77	45	250	27
