DIN 1480 Turnbuckle Cast Hook & Hook

DIN 1480 Turnbuckle Cast Hook&Hook, also known as straining screw, conform to DIN1480.

This DIN1480 Straining Screw, is made from superior mild steel, the body of straining screw is casting, the hook end fitting is forged.

The surface finish of Casting Turnbuckles Hook/Hook to DIN1480 is self-colored and Electric galvanized.

China LG Supply can provide you high quality DIN1480 hook & hook Turnbuckles cast.

Our range of casting turnbuckles DIN1480 is available in standard as well as customized sizes.

Special specifications and marks can be made according to customer’s requirement.

Trawling Gear
Shackles
Boat Fittings

Information of DIN 1480 Turnbuckle Cast Hook & Hook

Technical Notes

Casting turnbuckle Conform to DIN 1480

Material

Superior Mild Steel

Processing

Body: Casting.

End Fittings: Forged.

Finish

Self-Colored, Zinc Plated

Size

M5, M6, M8, M10, M12, M16, M20

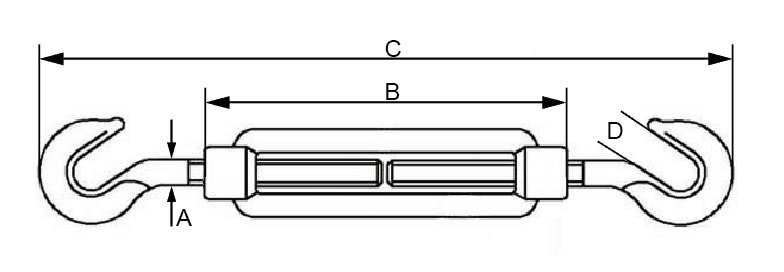

Specifications of DIN 1480 Turnbuckle Cast Hook & Hook

Specifications of DIN 1480 Turnbuckle Cast Hook&Hook


Part No.

A

B

C

D

W.L.L.

B.L.

WT

(mm)

(N)

(kg)

LG-C1480-HH-05

M5

70

130

9

994.5

1491.75

0.08

LG-C1480-HH-06

M6

100

160

9

1462.5

2193.75

0.11

LG-C1480-HH-08

M8

125

200

10

2665

3997.5

0.21

LG-C1480-HH-10

M10

150

245

11

4225

6337.5

0.34

LG-C1480-HH-12

M12

200

300

14

6045

9067.5

0.65

LG-C1480-HH-16

M16

250

400

18

11505

17257.5

1.3

LG-C1480-HH-20

M20

300

480

20

17550

26325

2.5


China LG Supply offers a wide variety of fittings and assemblies in wire rope turnbuckles.

We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
