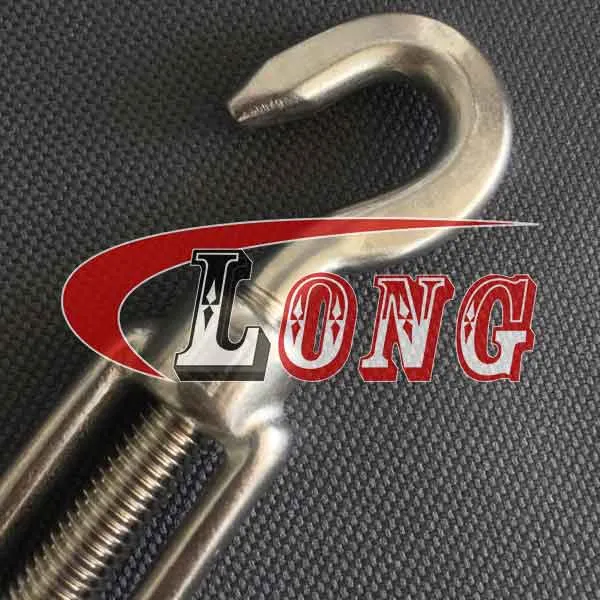

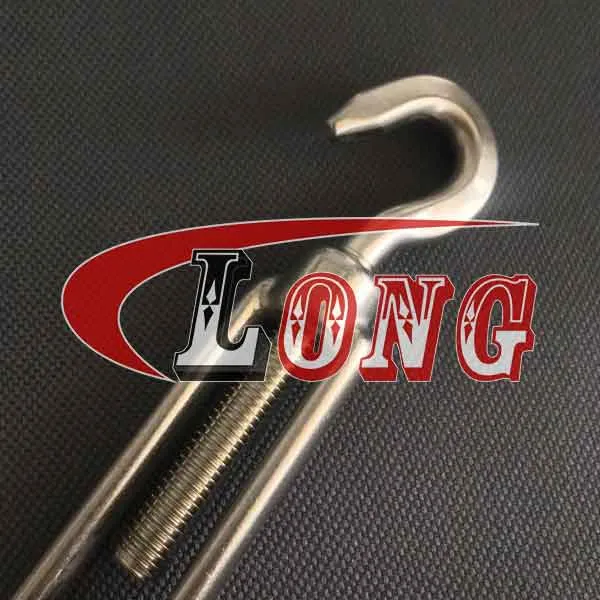

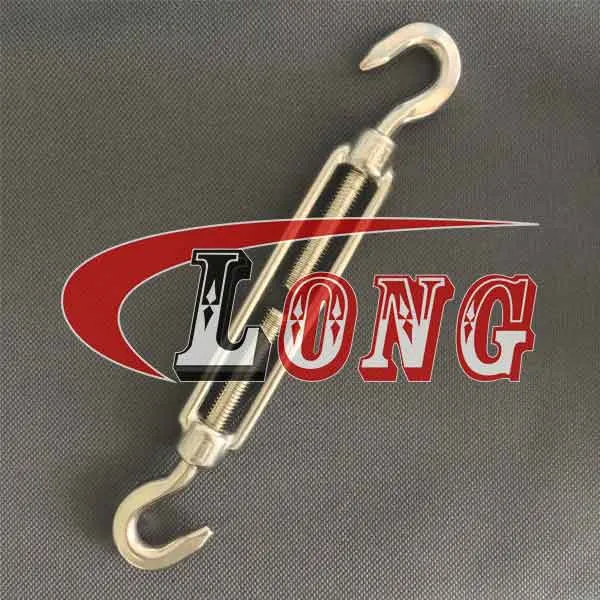

Turnbuckle DIN 1480 Stainless Steel Hook & Hook, also known as straining screw.
DIN 1480 turnubckle, manufactured in AISI 304 or AISI 316 grade stainless steel for maximum corrosion resistance and durability.
Also available in Eye&Hook end, Hook&Hook end.
This open body turnbuckle, conform to DIN 1480, features a threaded eye at one end and a threaded hook at the other end. It is ideal for marine rigging, fencing and architectural use.
This DIN 1480 straining screw with hook-hook ends is available in a variety sizes ranging M5 M6 M8 M10 M12 M16 M20.
Technical Notes | Straining screw conform to DIN 1480 |
Material | 316 Stainless steel turnbuckle or 304 stainless steel turnbuckle |
Size | M5 M6 M8 M10 M12 M16 M20 |
Processing | Body: Cast / Forged |
Finish | Highly Polishing |
Tips | Corrosion Resistant |

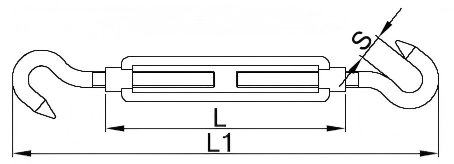

Part No. | Size | L(mm) | L1(mm) | S(mm) | WLL(kg) |
LG-SS-1480-HH05 | M5 | 90 | 140 | 7 | 40 |
LG-SS-1480-HH06 | M6 | 110 | 170 | 9 | 80 |
LG-SS-1480-HH08 | M8 | 110 | 180 | 10 | 140 |
LG-SS-1480-HH10 | M10 | 125 | 210 | 11 | 220 |
LG-SS-1480-HH12 | M12 | 125 | 240 | 14 | 300 |
LG-SS-1480-HH16 | M16 | 170 | 320 | 18 | 600 |
LG-SS-1480-HH20 | M20 | 200 | 370 | 20 | 900 |
We carry a full line of turnbuckles and other rigging supplies.
