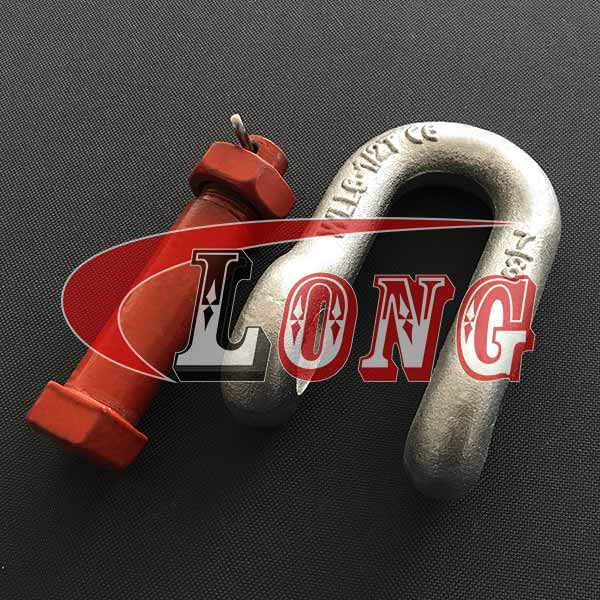

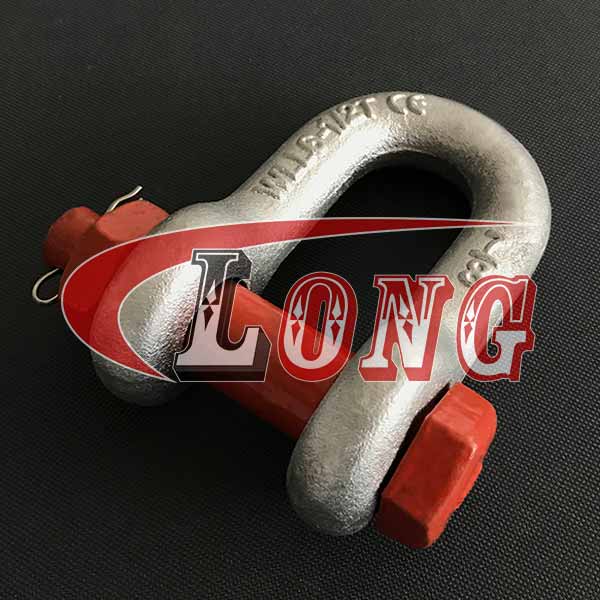

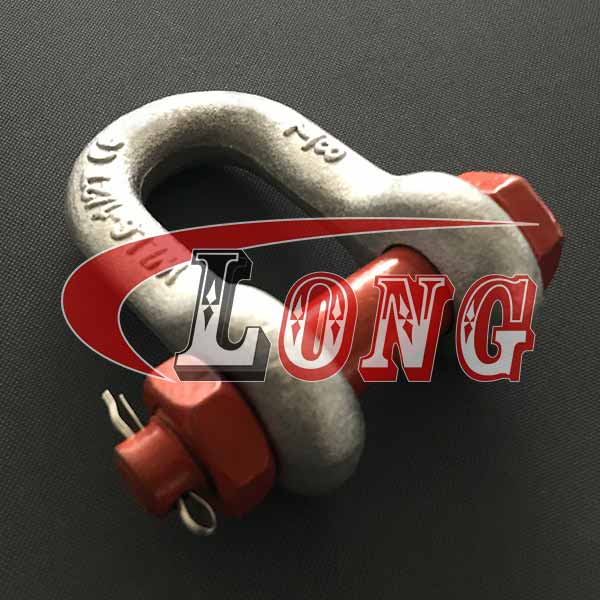

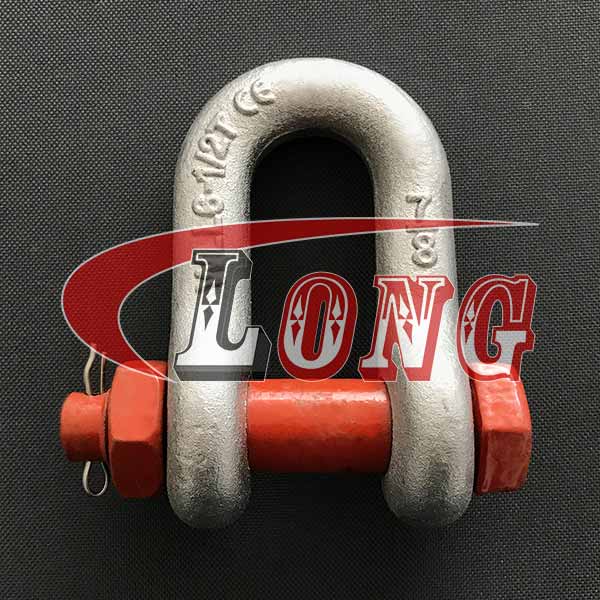

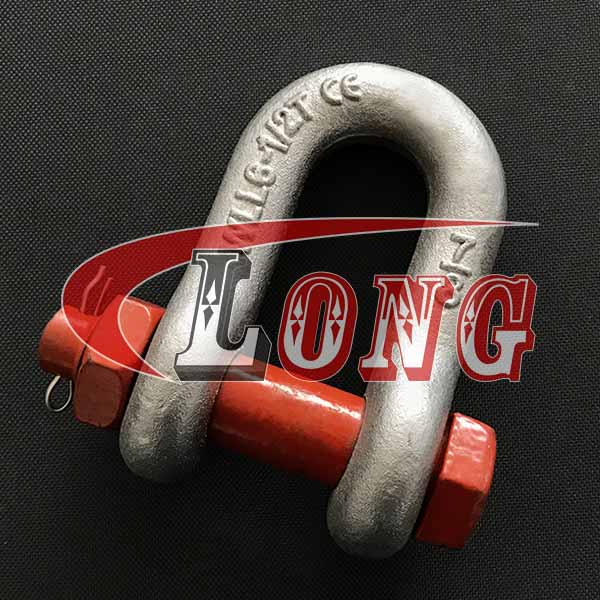

Information of Bolt Type Chain Shackle U.S. Type

Technical Notes	U.S. Federal Specification (ASME B30.26)
Material	Body: Superior Carbon Steel Screw Pin: Alloy Steel / Superior Carbon Steel
Safety Factor	6 : 1 / 4 : 1
Processing	Body: Drop Forged / Quenched and Tempered Screw Pin:Cold/Hot Forged / Drop Forged / Quenched and Tempered
Finish	Body: Hot Dipped Galvanized / Powder Coated / Zinc Plated Screw Pin: Powder Coated / Zinc Plated
Size	3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8” 1/1/4”, 1-3/8”, 1-1/2”, 1-3/4”, 2”, 2-1/2”, 3”, 3-1/2”, 4”
Tips	Special specification and marks can be made according to customers’ requirements

Specifications of Bolt Type Chain Shackle U.S. Type

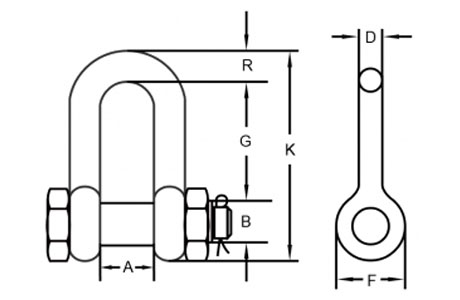

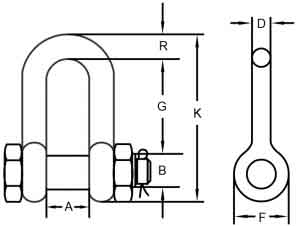

Specifications of Bolt Type Chain Shackle G-2150 U.S. Type

Part No.	Size	WLL	Weight	Dimensions (in.)									Tolerance +/-(in.)
Part No.	(in)	(t)	(lbs)	A	B	D	F	G	K	M	P	R	G	A
LG-2150-BTDS-3/16	3/16	1/3	0.06	0.38	0.25	0.88	0.19	0.6	0.56	1.47	0.98	0.19	0.06	0.06
LG-2150-BTDS-1/4	1/4	1/2	0.11	0.47	0.31	1.13	0.25	0.78	0.61	1.84	1.28	0.25	0.06	0.06
LG-2150-BTDS-5/16	5/16	3/4	0.22	0.53	0.38	1.22	0.31	0.84	0.75	2.09	1.47	0.31	0.06	0.06
LG-2150-BTDS-3/8	3/8	1	0.33	0.66	0.44	1.44	0.38	1.03	0.91	2.49	1.78	0.38	0.13	0.06
LG-2150-BTDS-7/16	7/16	1-1/2	0.49	0.75	0.5	1.69	0.44	1.16	1.06	2.91	2.03	0.44	0.13	0.06
LG-2150-BTDS-1/2	1/2	2	0.79	0.81	0.64	1.88	0.5	1.31	1.19	3.28	2.31	0.5	0.13	0.06
LG-2150-BTDS5/8-	5/8	3-1/4	1.68	1.06	0.77	2.38	0.63	1.69	1.5	4.19	2.94	0.69	0.13	0.06
LG-2150-BTDS-3/4	3/4	4-3/4	2.72	1.25	0.89	2.81	0.75	2	1.81	4.97	3.5	0.81	0.25	0.06
LG-2150-BTDS-7/8	7/8	6-1/2	3.95	1.44	1.02	3.31	0.88	2.28	2.09	5.83	4.03	0.97	0.25	0.06
LG-2150-BTDS-1/1	1	8-1/2	5.66	1.69	1.15	3.75	1	2.69	2.38	6.56	4.69	1.06	0.25	0.06
LG-2150-BTDS-1-1/8	1-1/8	9-1/2	8.27	1.81	1.25	4.25	1.13	2.91	2.69	7.47	5.16	1.25	0.25	0.06
LG-2150-BTDS-1-1/4	1/1/4	12	11.71	2.03	1.4	4.69	1.29	3.25	3	8.25	5.75	1.38	0.25	0.06
LG-2150-BTDS-1-3/8	1-3/8	13-1/2	15.83	2.25	1.53	5.25	1.42	3.63	3.31	9.16	6.38	1.5	0.25	0.13
LG-2150-BTDS-1-1/2	1-1/2	17	19	2.38	1.66	5.75	1.53	3.88	3.63	10	6.88	1.62	0.25	0.13
LG-2150-BTDS-1-3/4	1-3/4	25	33.91	2.88	2.04	7	1.84	5	4.19	12.34	8.8	2.25	0.25	0.13
LG-2150-BTDS-2/1	2	35	52.25	3.25	2.3	7.75	2.08	5.75	4.81	13.68	10.15	2.4	0.25	0.13
LG-2150-BTDS-2-1/2	2-1/2	55	98.25	4.13	2.8	10.5	2.71	7.25	5.69	17.9	12.75	3.13	0.25	0.25
LG-2150-BTDS-3-1	3	85	154	5	3.3	13	3.12	7.88	6.5	21.5	14.62	3.62	0.25	0.25
LG-2150-BTDS-3-1/2	3-1/2	120	265	5.25	3.76	14.63	3.62	9	8	24.88	17.02	4.38	0.25	0.25
LG-2150-BTDS-4/1	4	150	338	5.5	4.26	14.5	4	10	9	25.68	18	4.56	0.25	0.25
