Information of Italy Type Galvanized Dee Shackle

Technical Notes	Bow shackle conform to Italy Type
Material	Superior Carbon Steel
Processing	Drop Forged / Quenched and Tempered
Finish	Hot Dipped Galvanized / Powder Coated / Zinc Plated
Size	5mm, 6mm, 8mm, 10mm, 11mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 32mm, 36mm, 40mm, 42mm, 45mm, 50mm, 56mm, 63mm Dee shackle screw pin
Tips	Special specification and marks can be made according to customers’ requirements

Specifications of Italy Type Galvanized Dee Shackle

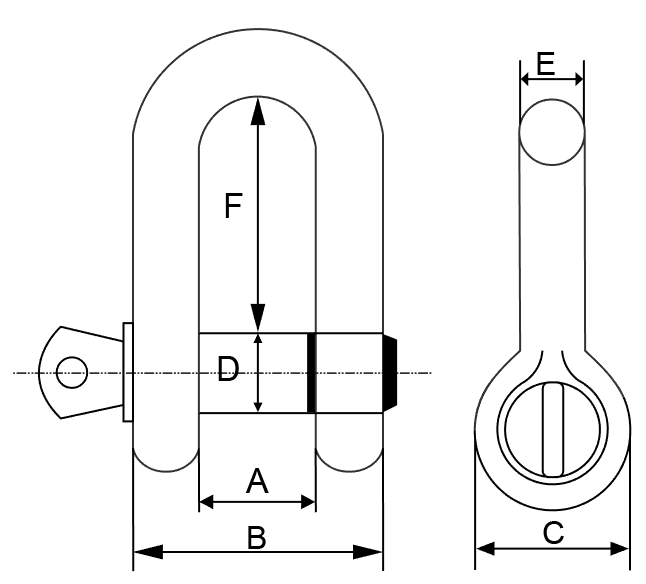

Part No.	Size	A	B	C	D	E	F	S.W.L.	Weight
Part No.	mm								kg
LGITDS05	5	8	18	12	5	5	23	70	0,020
LGITDS06	6	11	23	14	6	6	29	100	0,040
LGITDS08	8	16	32	18	8	8	37	250	0,080
LGITDS10	10	19	38	21	10	10	41	400	0,110
LGITDS11	11	23	45	26	11	11	48	470	0,200
LGITDS12	12	26	50	28	12	12	54	630	0,250
LGITDS14	14	28	56	30	14	14	57	750	0,340
LGITDS16	16	30	64	35	16	16	63	1000	0,510
LGITDS18	18	28	64	37	18	18	62	1300	0,750
LGITDS20	20	35	68	39	20	18,5	65	1600	0,940
LGITDS22	22	41	83	44	22	21	75	2000	1,300
LGITDS25	25	36	80	50	25	22	81	2500	1,600
LGITDS28	28	40	88	56	28	24	90	3150	2,000
LGITDS32	32	45	99	64	32	27	99	4000	2,900
LGITDS36	36	50	110	74	36	30	109	5000	4,300
LGITDS40	40	55	123	80	40	34	120	6300	6,000
LGITDS42	42	60	136	85	42	38	131	8000	7,400
LGITDS45	45	65	149	90	45	42	135	10000	10,000
LGITDS50	50	70	165	103	48	47	155	12500	13,700
LGITDS56	56	80	184	114	56	52	170	16000	16,600
LGITDS63	63	90	204	128	60	57	190	20000	26,500

Also available in Galvanized Bow Shackle Italy Type.

China LG Supply specialized in supplying kinds of shackles, including bow shackle, dee shackle, trawling shackle, grade s shackle, commercial shackle, high tensile shackle, JIS type shackles, stainless steel shackles, and etc.

We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
