Turnbuckle Drop Forged Stainless Steel Eye&Eye US Type

Description

Turnbuckle Drop Forged Stainless Steel Eye&Eye US Type – China LG Supply

Description

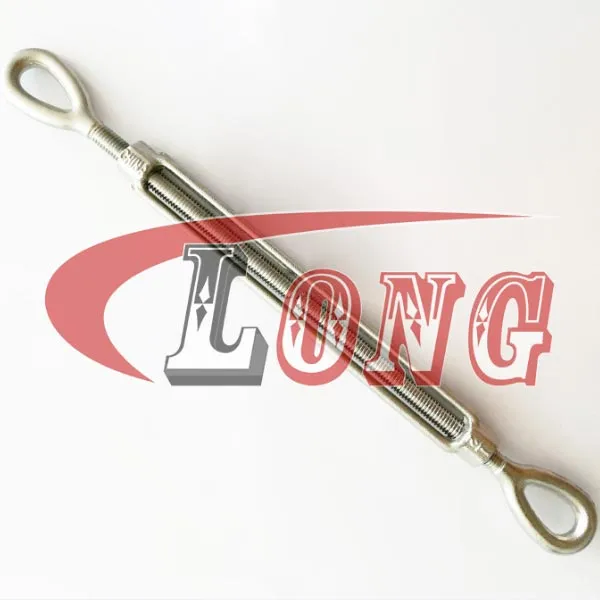

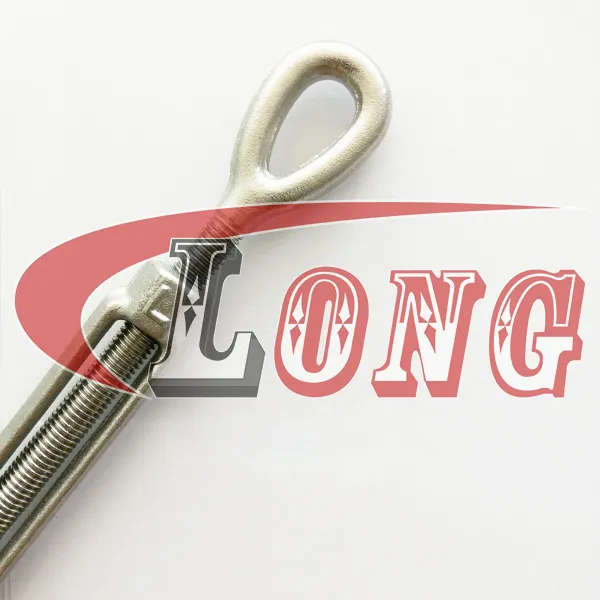

Turnbuckle Drop Forged Stainless Steel Eye&Eye US Type, made of marine grade stainless steel , which offers the highest level of corrosion protection and rust resistance.

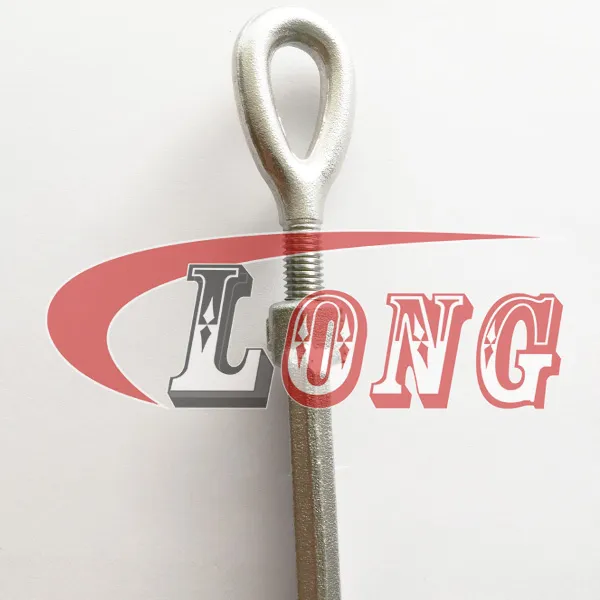

Stainless steel forged turnbuckle with eye ends, and you also could match with the other end,such as jaw ends , hook ends .

The turnbuckle eye and turnbuckle body are UNC thread so they can be interchanged between other turnbuckle fittings as you need.

The forging stainless steel turnbuckles eye & eye are a valuable commodity for rigging for their fast connect/disconnect properties.

Technical & Application

Technical Notes	Forged Turnbuckle conform to US Federal Specification
Material	Stainless steel 304 or 316 turnbuckle
Size	1/4×4 , 5/16×4 1/2 , 3/8×6 , 1/2×6 , 1/2×9 , 1/2×12 , 5/8×6 , 5/8×9 , 5/8×123/4×6 3/4×9 , 3/4×12 , 3/4×18 , 7/8×12 , 7/8×18 , 1×6 , 1×12 , 1×18 , 1×24 , 1 1/4×12 1 1/4×18 , 1 1/4×24 , 1 1/2×12 , 1 1/2×18 , 1 1/2×24 , 1 3/4×18 , 1 3/4×24 , 2×24 , 2 1/2×24 , 2 3/4×24
Processing	Drop Forged
Tips	Corrosion Resistant

Specification

Part No.	Thread Dia &Take Up (in)	W.L.L.	U.W	Dimensions(in)
		W.L.L.	U.W	J	K	M	N	R	S	X
		lbs	lbs/pc	Open	Closed	Open	Closed	R	S	Closed
LG-SS-F-T-EE-01	1/4×4	500	0.29	11.94	7.94	12.38	8.38	0.81	0.34	1.76
LG-SS-F-T-EE-02	5/16×41/2	800	0.48	13.92	9.42	14.48	9.98	0.95	0.44	2.2
LG-SS-F-T-EE-03	3/8×6	1200	0.75	17.56	11.56	18.24	12.24	1.13	0.53	2.48
LG-SS-F-T-EE-04	1/2×6	2200	1.72	19.94	13.94	20.82	14.82	1.41	0.71	3.56
LG-SS-F-T-EE-05	1/2×12	2200	2.63	32.23	20.23	33.11	21.11	1.41	0.71	3.54
LG-SS-F-T-EE-06	5/8×6	3500	2.75	21.72	15.72	22.72	16.72	1.8	0.88	4.35
LG-SS-F-T-EE-07	5/8×12	3500	4.12	34.06	22.06	35.06	23.06	1.8	0.88	4.34
LG-SS-F-T-EE-08	3/4×6	5200	4.22	23.24	17.24	24.5	18.5	2.09	1	5.12
LG-SS-F-T-EE-09	3/4×12	5200	6.12	35.64	23.64	36.9	24.9	2.09	1	5.09
LG-SS-F-T-EE-10	3/4×18	5200	7.83	47.64	29.64	48.9	30.9	2.09	1	5.12
LG-SS-F-T-EE-11	7/8×12	7200	8.83	36.7	24.7	38.2	26.2	2.38	1.25	5.79
LG-SS-F-T-EE-12	7/8×18	7200	11.5	49.17	31.17	50.67	32.67	2.38	1.25	5.79
LG-SS-F-T-EE-13	1×6	10000	9.62	26.24	20.24	28	22	3	1.43	6.5
LG-SS-F-T-EE-14	1×12	10000	13	38.24	26.24	40	28	3	1.43	6.5
LG-SS-F-T-EE-15	1×18	10000	16.3	50.24	32.24	52	34	3	1.43	6.5
LG-SS-F-T-EE-16	1×24	10000	20.2	62.84	38.84	64.6	40.6	3	1.43	6.47
LG-SS-F-T-EE-17	1 1/4×12	15200	19.9	42.14	30.14	44.38	32.38	3.59	1.82	8.49
LG-SS-F-T-EE-18	1 1/4×18	15200	23.8	54.14	36.14	56.38	38.38	3.59	1.82	8.49
LG-SS-F-T-EE-19	1 1/4×24	15200	27.8	66.7	42.7	68.94	44.94	3.59	1.82	8.49
LG-SS-F-T-EE-20	1 1/2×12	21400	28.7	44.24	32.24	46.74	34.74	4.09	2.12	9.46
LG-SS-F-T-EE-21	1 1/2×18	21400	34.1	56.24	38.24	58.74	40.74	4.09	2.12	9.46
LG-SS-F-T-EE-22	1 1/2×24	21400	39.6	68.86	44.86	71.36	47.36	4.09	2.12	9.46
LG-SS-F-T-EE-23	1 3/4×18	28000	50.7	57.38	39.38	60.38	42.38	4.65	2.38	9.97
LG-SS-F-T-EE-24	1 3/4×24	28000	58.2	69.38	45.38	72.38	48.38	4.65	2.38	9.97
LG-SS-F-T-EE-25	2×24	37000	83.5	75.68	51.68	79.18	55.18	5.81	2.69	13.03
LG-SS-F-T-EE-26	2 1/2×24	60000	149	79.18	55.18	83.18	59.18	6.49	3.12	13.76
LG-SS-F-T-EE-27	2 3/4×24	75000	174	81.34	57.34	85.84	61.84	7	3.25	15.09
