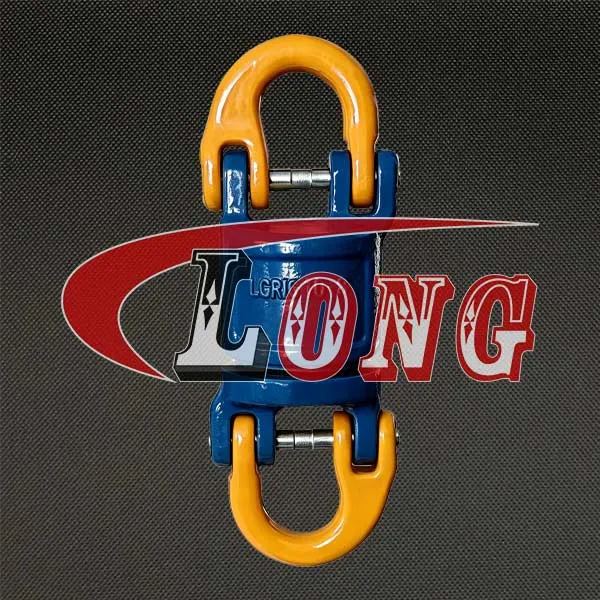

Name: LGRIG® Grade 80 Insulated Swivel Connector with 2 Half Links
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Trawling Swivel 

 Stainless Steel Flexible Swivel for Trawl WDF Type LG RIGGING®

 Stainless Steel Flexible Swivel WF Type Fishing for Fishing & TrawlingTrawling Gear LG RIGGING®

 Flexible Swivel Stainless Steel Longer DLF Type for Trawling Gear

 Stainless Steel Swivel D Type Fishing & Trawling Gear

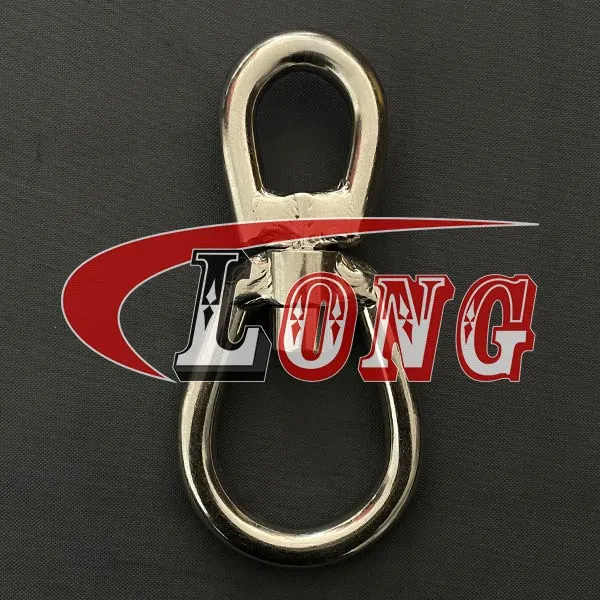

 Stainless Steel Swivel Bow Type for Trawling Gear

 LGRIG® Chain Swivel Galvanized G-401

 LGRIG® Regular Swivel G-402 Galvanized Eye & Eye for Trawling Gear

 Swivel for Connector Stainless Steel for Trawling Gear

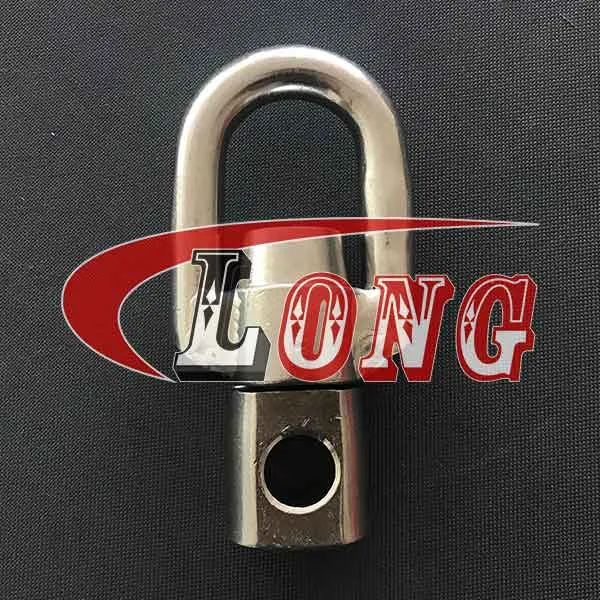

 Trawling Swivel for Shackles Stainless Steel

 Swivel Jaw Stainless Steel for Connector or Shackle for Trawling LG RIGGING®

 Stainless Steel Swivel dD Type for Trawling Gear

 Trawl Swivel BRD Type for Fishing Trawling LG RIGGING®

 Trawl Swivel Type FO Swivel Carbon Steel for Fishing Trawling LG RIGGING®

 Trawl Swivel JIS Type Single Eye Type for Fishing Trawling LG RIGGING®

 Trawl Swivel Drop Forged Mild Steel for Fishing Trawling LG RIGGING®

 LGRIG® G80 Eye Swivel for Trawl

 Trawl Swivel WDD Type Welded Steel LG RIGGING®

 LGRIG® Trawl Swivel WPD Type

 Trawl Swivel Forged Stainless Steel LG RIGGING®

 LGRIG® Grade 80 Trawl Swivel with Roller Bearing

 LGRIG® Grade 80 Insulated Swivel Connector with 2 Half Links

Hooks 

Trawling Shackle 

Rope Thimbles 

Rings & Links 

Kelly's Eye & Stoppers 

G-Hooks & Recessed Links 

Connectors 

Tools 

Rockhopper Spare Parts 

Trawling Chain 

Synthetic Rope 

Trawl Wire 

Anchors & Fittings 

Wire Rope Clips 

Ferrules & Terminals 

Rigging Screws 

Fishing Net Float 

Fenders & Buoys 

Lashing/Slings/Load Binders 

Trawl Blocks & Pulley 

Toggles & Spacers 

Safety Appliance 

Footrope Gear 

Trawl Door 

Lifting & Rigging

 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Grade 80 Insulated Swivel Connector with 2 Half Links

Brand	LGRIG®
Product Name	Grade 80 Insulated Swivel Connector with 2 Half Links
Alternative Name	Insulated Swivel / Insulated Swivel Link / Insulated Swivel Connector
Product Type	Insulated Lifting & Rigging Swivel
Material	Forged Alloy Steel
Grade	Grade 80 / G80
Connection Type	2 Half Connector Links
Swivel Type	Insulated Ball Bearing Swivel
Bearing	Ball Bearing
Surface Finish	Powder Coated / Painted
Electrical Insulation	Up to 1000 V*
Working Load Limit	According to model
Safety / Design Factor	4:1*
Rotation	Allows rotation under load
Main Feature	Electrical isolation and load rotation
Compatible Chain	Grade 80 Lifting Chain
Application	Lifting, rigging and suspended-load welding
Typical Use	Overhead crane and electric hoist welding operations
Industries	Construction, welding, fabrication, steel, shipbuilding, maintenance and material handling
Origin	China

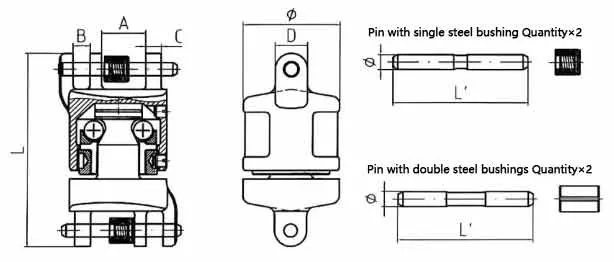

Specification of LGRIG® Grade 80 Insulated Swivel Connector with 2 Half Links


Part No.	WLL/T	BF/T	A	B	C	D	ø	L	ø′	L′	WEIGHT/KG
8LGSIC7/8	2	8	20.5±0.5	7.9±0.5	7.2±0.5	15±0.5	45±1	91±3	6	54.5	0.61
8LGSIC10	3.15	12.6	28±0.5	9.5±0.5	8.5±0.5	18±0.5	58±1	113±3	7.8	69	1.2
8LGSIC13	5.3	21.2	30±1	13±0.5	12±0.5	24±1	76±2	148±3	10	82.5	2.5
8LGSIC16	8	32	36.3±1	16.5±0.5	15.5±0.5	30±1	90±2	171±4	12	101.5	4.4
8LGSIC18/20	12.5	50	44±1	18.5±0.8	17.2±0.8	37±1	104±2	196±5	15	116.5	6.8
