boat turnbuckle
boat turnbuckle

G80 Eye Bend Hook US Type Forged Alloy Steel

G80 Eye Bend Hook US Type is a special-shaped hook, only suitable for lashing and pulling, Not for lifting.

Grade 80 Eye type bend hook, drop forged from superior alloy steel, with the surface finish of powder coated, Hot dip galvanized and zinc plated to prevent from rust.

Eye allows easy connection to coup links and can be attached to lifting apparatus.

The body of G80 eye bend hook marked with WLL.

Get A Quote
Products
Trawling Gear
Fishing Net Float & Buoy
Trawling Swivel
Trawling Shackle
Grade80 / Grade100
Rope Thimbles
Rope Splicing Spike
Hooks / Links / Rope Fittings
Trawling Chain
Lifting Sling
Trawl Block
Wire / Chain Toggles
Anchors & Fittings
Dock Products
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
G80 Hooks
G80 Lifting Points
G80 Links, Rings
G80 Swivels
G80 Other Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture

Information of G80 Eye Bend Hook US Type Forged Alloy Steel

Technical Notes

G80 eye bend hook conform to US Type

Material

Superior Alloy Steel.

Safety Factor

4: 1

Processing

Forged / Quenched and Tempered.

Finish

Powder coated / Hot dip galvanized / Galvanized

Size

5/16″, 3/8″, 1/2″
13mm, 20mm

Tips

Color Code: Customized according to customers’ requirements

Note

Only suitable for lashing and pulling, Not for lifting

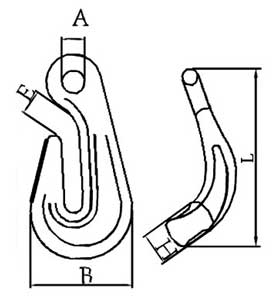

Specifications of G80 Eye Bend Hook US Type Forged Alloy Steel

Specifications of G80 Eye Bend Hook US Type Forged Alloy Steel


G80 Eye Bend Hook Type -1

Part No.

Size

Dimensions

MBS

U.W.

A

K

L

O

KGS

KGS

LG-EBH-516

5/16”

5/16”

2.24

3.07

0.51

10000

0.81

LG-EBH-38

3/8”

3/8”

2.71

3.97

0.67

13000

1.76

LG-EBH-12

1/2”

1/2”

3.26

4.4

0.82

27000

2.97


Specifications of G80 Eye Bend Hook US Type Forged Alloy Steel


G80 Eye Bend Hook Type -2

Part No.

Size

Dimensions

MBS

U.W

A

B

E

L

H

TONS

KGS

LGEBH-1.86T

13MM

13MM

57

15

100

18.5

7.44

0.4

LGEBH-2T

13MM

13MM

58

10

105

20

8

0.5

LGEBH-5T

20MM

20MM

92.5

16

170

30

20

1.7

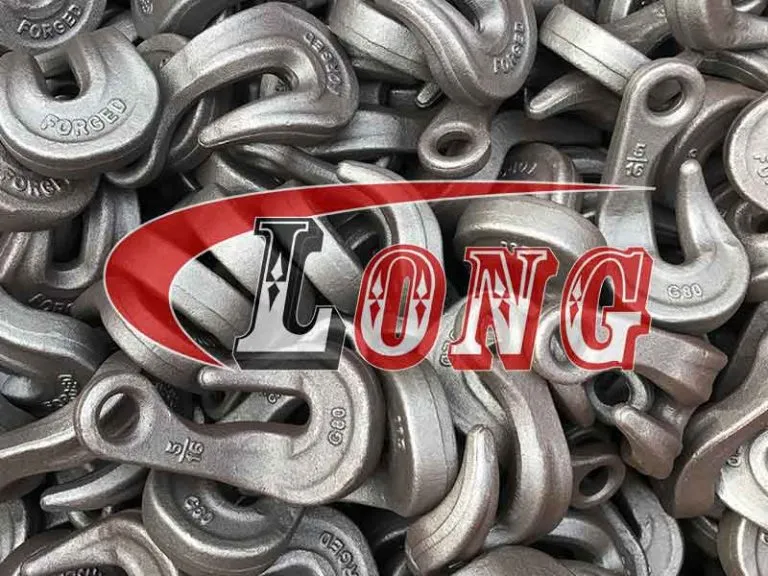

Bulk Photos of G80 Eye Bend Hook US Type Forged Alloy Steel

bulk photos of g80 eye bend hook us type forged alloy steel
