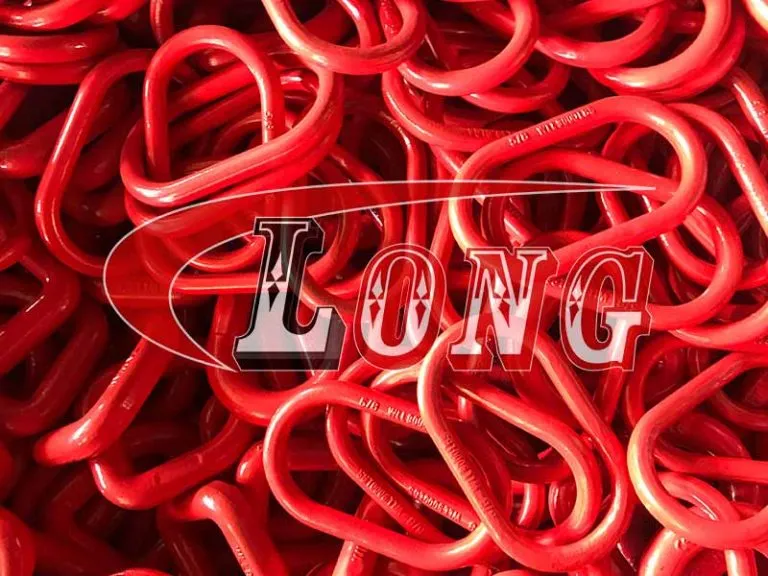

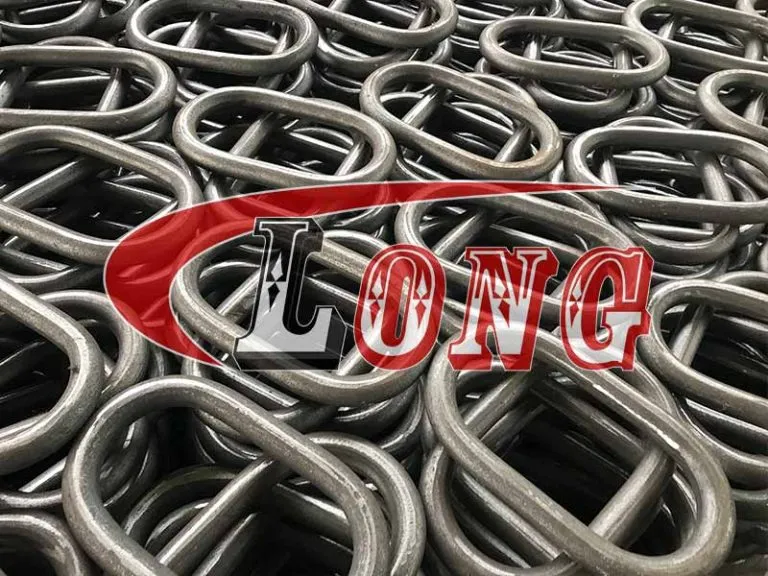

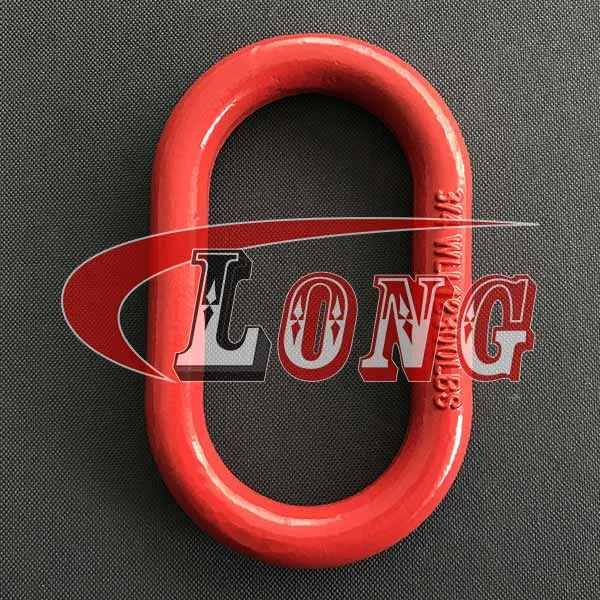

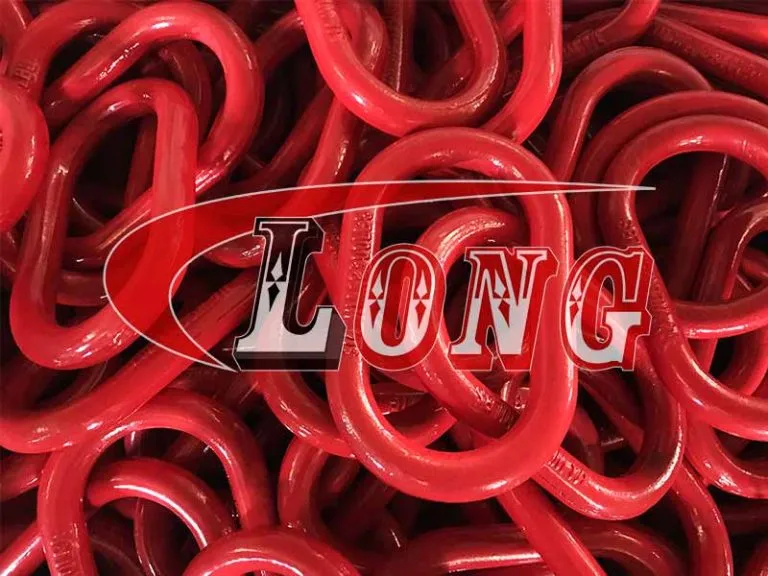

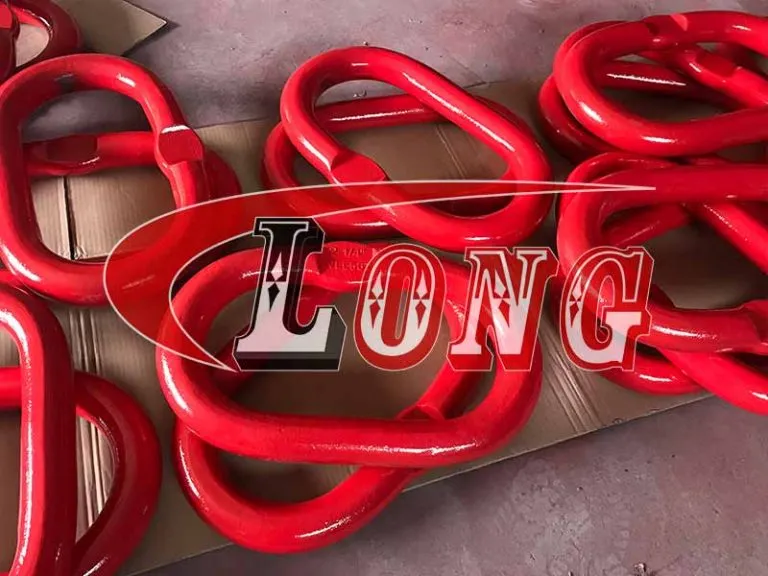

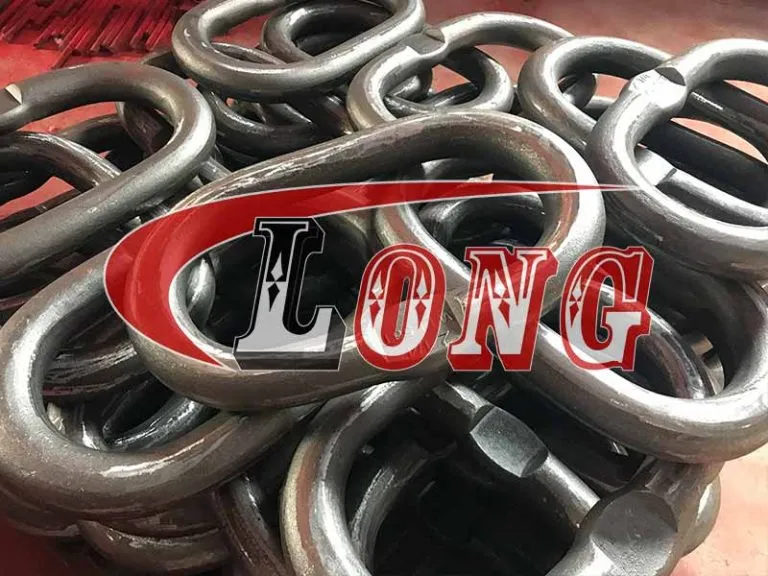

Name: LGRIG® Grade 80 Oblong Mater Link Forged US Standard
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

 G80 Hooks

 G80 Lifting Points

 G80 Links, Rings

 G80 Swivels

 G80 Other Products

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Grade 80 Oblong Mater Link Forged US Standard

Standard	U.S. Type (ASME B30.26 )
Material	Super Alloy Steel
Safety Factor	4: 1

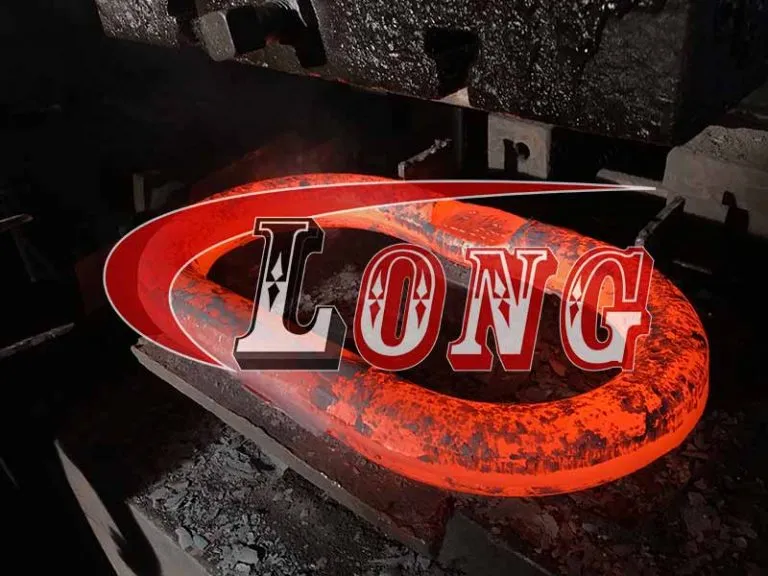

processing	All Size are Forged / Quenched and Tempered.
Finish	Powder Coated
Size	1/2, 5/8,3/4, 7/8 1, 1-1/4, 1-1/2, 1-3/4 2, 2-1/4, 2-1/2, 2-3/4, 3 ,3-1/4, 3-1/2 ,3-3/4, 4, 4-1/,4, 4-1/2, 4-3/4, 5
Tips	Color Code: Customized according to customers' requirements
Δ Note	There will be pressing flat only on request. Use Only Grade 80 Attachments For Overhead Lifting

Specifications of LGRIG® Grade 80 Oblong Mater Link Forged US Standard


Part No.	SIZE (in)	WEIGHT (KG)	Chain	WLL 1 LEG (T)	WLL 2 LEG-45° (T)	WLL ROPE (T)	DIMENSION(MM)

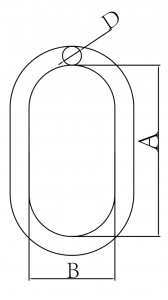

Part No.	SIZE (in)	WEIGHT (KG)	Chain	WLL 1 LEG (T)	WLL 2 LEG-45° (T)	WLL ROPE (T)	A	B	D
8LGFMLUS1/2	1/2	0.36	1/4	1.5	2.12	3.4	127±6	63.5±5	13±1
8LGFMLUS1/2	1/2	0.36	5/16	2	2.8	3.4	127±6	63.5±5	13±1
8LGFMLUS5/8	5/8	0.7	5/16	2	2.8	4	152±6	76±5	16±1
8LGFMLUS5/8	5/8	0.7	3/8	3.15	–	4	152±6	76±5	16±1
8LGFMLUS3/4	3/4	0.93	3/8	3.15	4.25	5.6	140±6	70±5	19±1
8LGFMLUS7/8	7/8	1.5	3/8	3.15	4.25	6.9	160±6	90±5	22±1
8LGFMLUS7/8	7/8	1.5	1/2	5.3	–	6.9	160±6	90±5	22±1
8LGFMLUS1/1	1	2.1	1/2	5.3	7.5	11.8	178±6	89±5	25±1
8LGFMLUS1/1	1	2.1	5/8	8	11.2	11.8	178±6	89±5	25±1
8LGFMLUS1-1/4	1-1/4	4.24	5/8	8	11.2	17.7	222±7	111±6	32±1/-2
8LGFMLUS1-1/4	1-1/4	4.24	3/4	11.2	16	17.7	222±7	111±6	32±1/-2
8LGFMLUS1-1/2	1-1/2	7.17	3/4	11.2	16	27.7	267±7	135±6	38±1/-2
8LGFMLUS1-1/2	1-1/2	7.17	7/8	15	21.2	27.7	267±7	135±6	38±1/-2
8LGFMLUS1-3/4	1-3/4	11.55	7/8	15	21.2	38.5	305±10	152±6	45±1/-2
8LGFMLUS1-3/4	1-3/4	11.55	1	21.2	–	38.5	305±10	152±6	45±1/-2
8LGFMLUS2/1	2	17.2	1	21.2	30	46.5	355±10	178±6	51±1/-2
8LGFMLUS2/1	2	17.2	11/4	31.5	–	46.5	355±10	178±6	51±1/-2
8LGFMLUS2-1/4	2-1/4	24.5	11/4	31.5	45	64.9	406±10	203±7	57±1/-2
8LGFMLUS2-1/2	2-1/2	30.9	–			72.6	406±10	203±7	63±3
8LGFMLUS2-3/4	2-3/4	39.5	—			98.4	406±10	241±7	70±3
8LGFMLUS3/1	3	50.34	–			103	457±15	228±7	76±3
8LGFMLUS3-1/4	3-1/4	65.68	–			119	508±15	254±7	82.5±3
8LGFMLUS3-1/2	3-1/2	90.24	–			126	610±15	305±10	89±3
8LGFMLUS3-3/4	3-3/4	89.27	–			152	508±15	254±7	95±3
8LGFMLUS4/1	4	103.43	–			169	508±15	254±7	102±3
8LGFMLUS4-1/4	4-1/4	137	–			160	610±15	305±7	108±3
8LGFMLUS4-1/2	4-1/2	156	–			163	711±18	356±7	114±3
8LGFMLUS4-3/4	4-3/4	198	–			176	711±18	356±7	121±4
8LGFMLUS5/1	5	234	–			179	762±20
