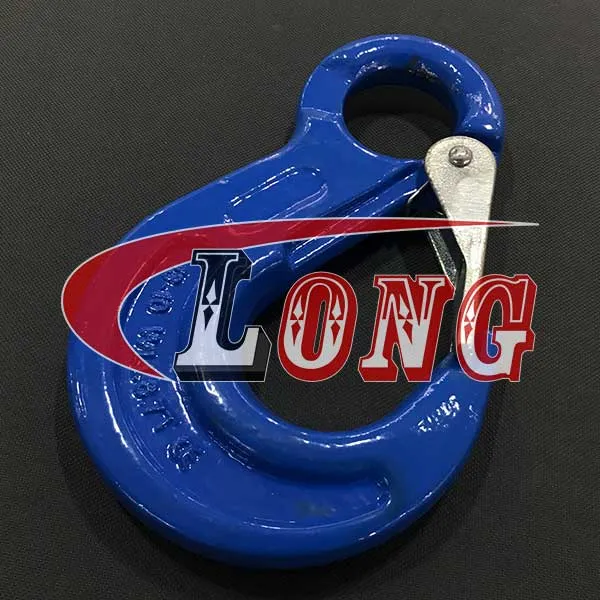

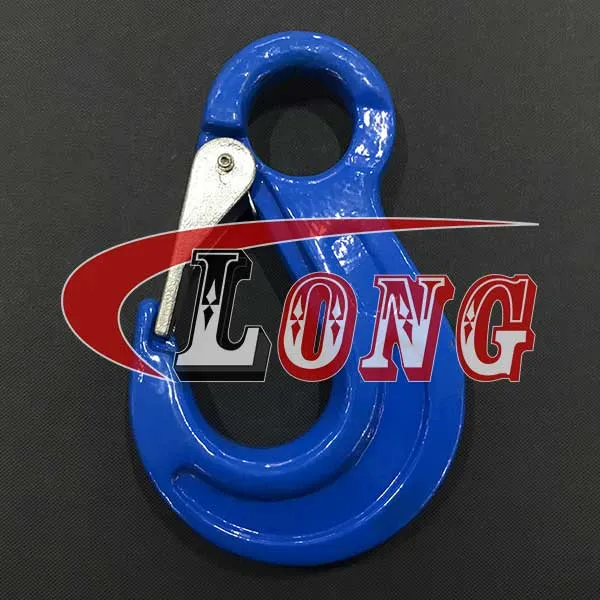

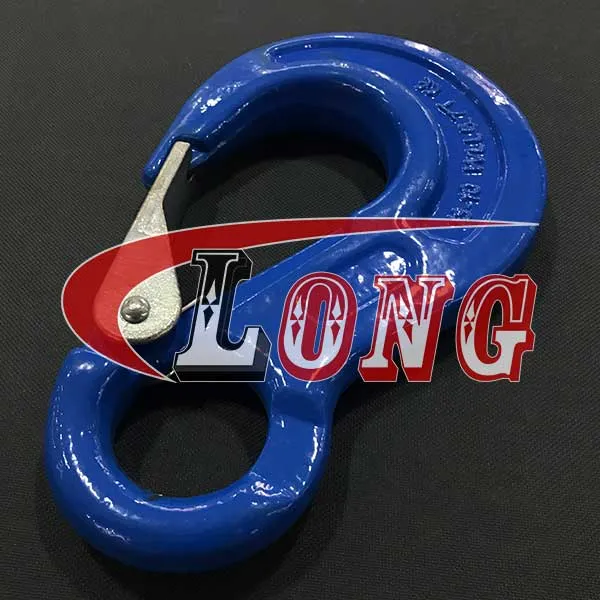

G100 Eye Sling Hook with Latch

G100 Eye Sling Hook with Latch, also known as grade 100 lifting eye sling hook.

Grade 100 lifting eye sling hook, made from superior alloy steel, strong and durable.

Grade 100 eye sling hook, a general purpose hook suitable for general slinging applications and come with a cast latch for added safety.

Eye allows easy connection to coup links and can be attached to lifting apparatus. Our sizes of g100 eye sling hooks range from 6mm to 32mm.

Trawling Gear
Shackles
Boat Fittings

Information of G100 Eye Sling Hook with Latch

Technical Notes

G100 eye sling hook conform to European Type

Material

Superior Alloy Steel.

Safety Factor

4: 1

Processing

Body: Forged / Quenched and Tempered.

Latch: Forged / Precision Cast

Finish

Body: Powder Coated

Latch: Hot dip galvanized / Galvanized / Dacroment

Size

6mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 26mm, 32mm

Tips

Color Code: Customized according to customers’ requirements

Note

Use Only Grade 100 Attachments For Overhead Lifting


Specifications of G100 Eye Sling Hook with Latch

Specifications of G100 Eye Sling Hook with Latch


Part No.

Weight (kg)

WLL(t)

Breaking load (t)

D±1

E±2

H±1

M±1

L±2.5

10-LG-ESH+L-06

0.32

1.4

5.6

10

18.5

21

20.5

111

10-LG-ESH+L-08

0.6

2.5

10

11

25

27.5

25

137.5

10-LG-ESH+L-10

1.2

4

16

16

28

33

34

171.5

10-LG-ESH+L-13

2.2

6.7

26.8

19

38

43.5

43

219

10-LG-ESH+L-16

3.5

10

40

24.5

44

50

50

260

10-LG-ESH+L-20

7.15

16

64

27

52

56

55

298

10-LG-ESH+L-22

11.5

19

76

29

66

62

60

330

10-LG-ESH+L-26

12.2

26.5

106

35

73

75

70

376

10-LG-ESH+L-32

17.5

39.3

157.2

39

87

89

81.5

458

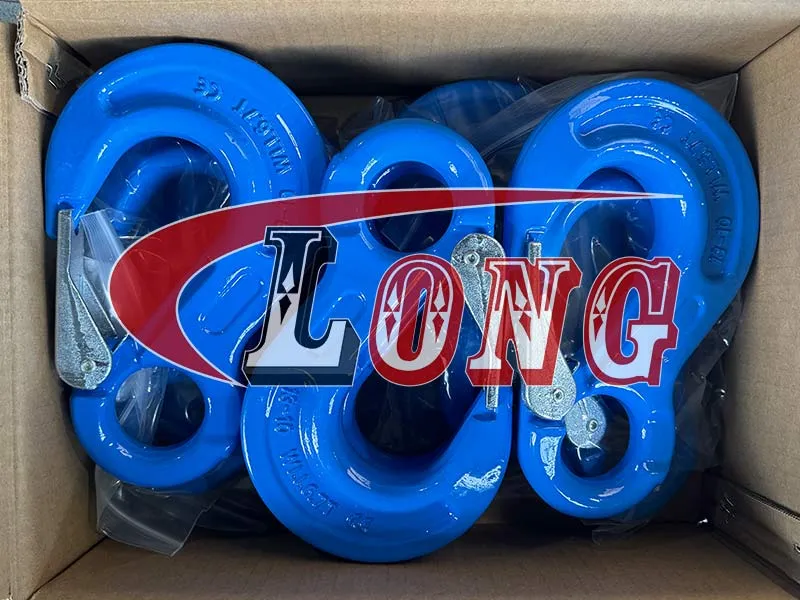

Bulk Photos of G100 Eye Sling Hook with Latch

bulk photos of g100 eye sling hook with latch
We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Request a Free Quote
Upload
or drag files here.

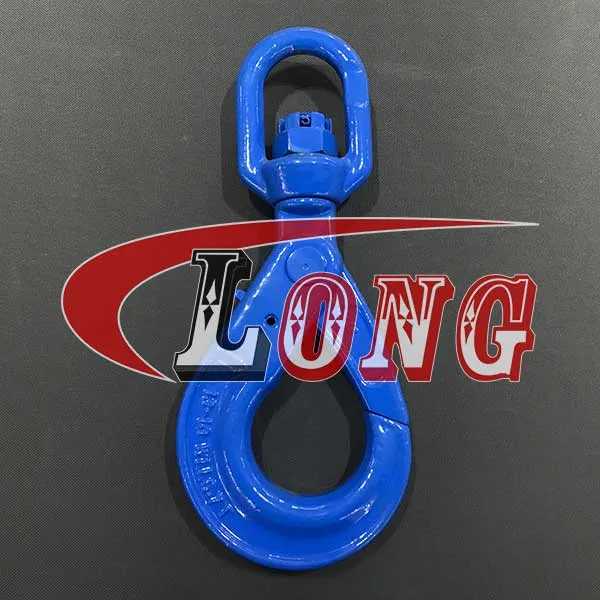

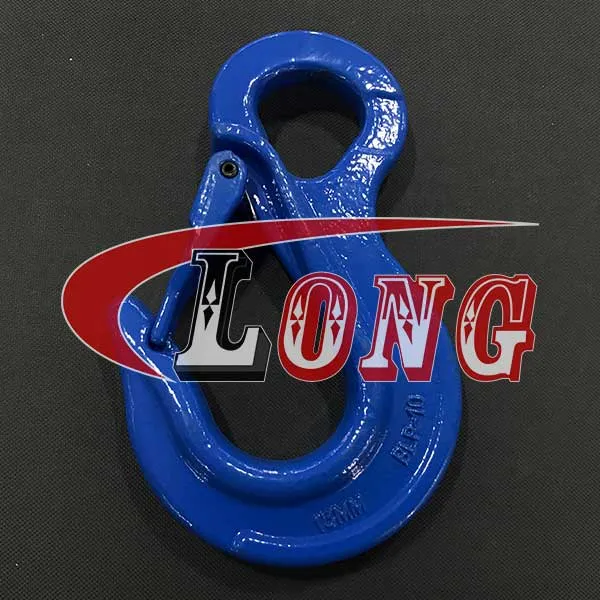

Related G100 Hooks
