G80 Twist Eye Choke Hook

China LG Supply provide you high quality G80 Twist Eye Choke Hook, manufactured using superior grade raw material as per international qualitative standards.

Grade 80 twist eye choke hook is forged by superior alloy steel with heat treatment, and can only be used for lashing and pulling but not lifting.

Each workpiece should pass testing at 2.5 times of working load limit.

Trawling Gear
Shackles
Boat Fittings

Information of G80 Twist Eye Choke Hook

Material

Super Alloy Steel

Safety Factor

4: 1

Processing

Drop Forged / Quenched and Tempered

Finish

Powder Coated

Size

7/8mm, 10mm, 13mm, 16mm, 18mm, 20mm/22mm

Tips

Color Code: Customized according to customers’ requirements

Note

Never exceed working load limit

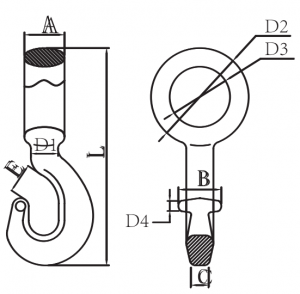

Specifications of G80 Twist Eye Choke Hook

Specifications of G80 Twist Eye Choke Hook


Item No.

Weight
(KG)

WLL
(T)

BL
(T)

A±1


(mm)

B±1


(mm)

C±0.5


(mm)

D1±1


(mm)

D2±0.3


(mm)

D3±1.5


(mm)

D4


(mm)

E±0.5


(mm)

L±2


(mm)

8-LG-EGH-US-7/8

0.36

2

8

19

28

6.5

17

52

30.5

7.5

16

123

8-LG-EGH-US-10

0.72

3.2

12.8

26

40

17.5

20

68

39

8

20

157

8-LG-EGH-US-13

1.4

5.4

21.6

34

43

21

25

85

52

9.5

27

195

8-LG-EGH-US-16

3.17

8.2

32.8

51

45.5

31

30

108

64

10.5

30

246

8-LG-EGH-US-18

3.8

10

40

49.5

53

22

33.5

121

75

12

37

268

8-LG-EGH-US-20/22

8.95

15.3

61.2

70

80

14

52

146

84

14

47

367


*Ultimate load is 4 times the Working Load Limit.

Bulk Photos of G80 Twist Eye Choke Hook

bulk photos of g80 twist eye choke hook
