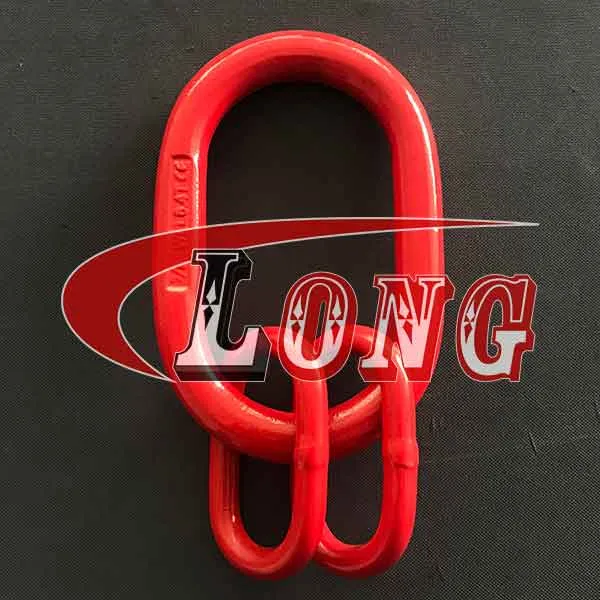

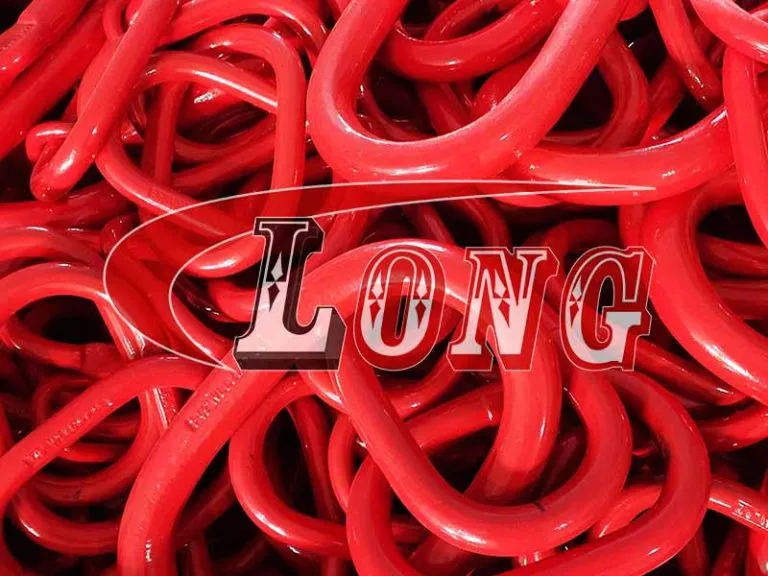

G80 Forged Master Link Assembly US Standard meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements.
Oblong master link assemblies of U.S type are manufactured using superior grade raw material as per international qualitative standards.
Masterlink Assembly designed for triple and quad branch HA 800 slings.

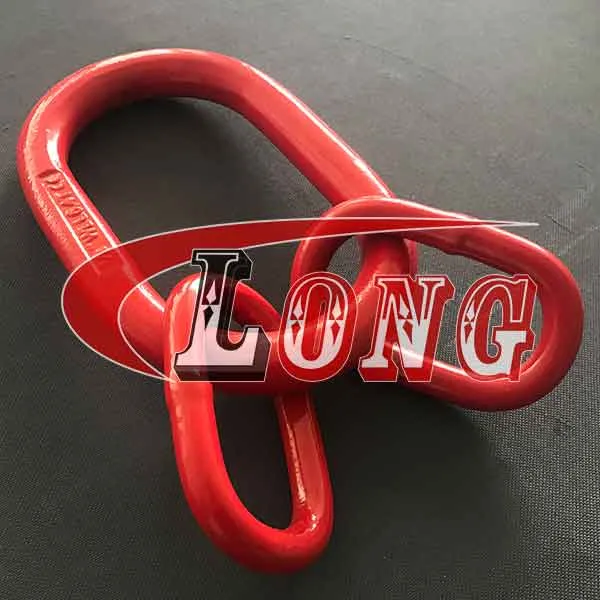

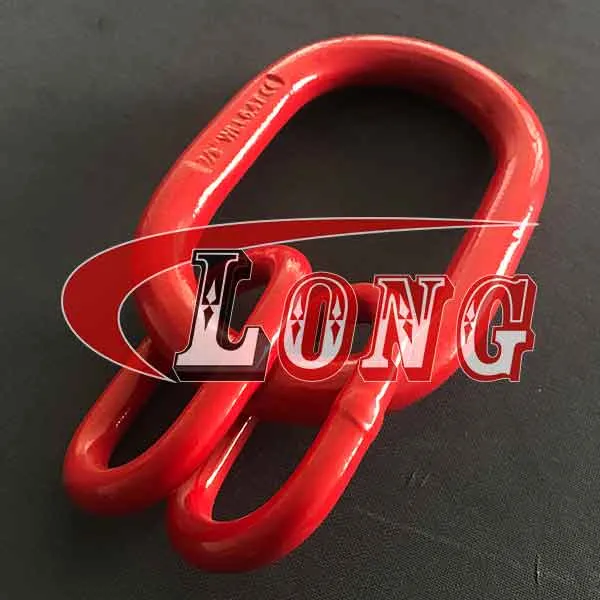

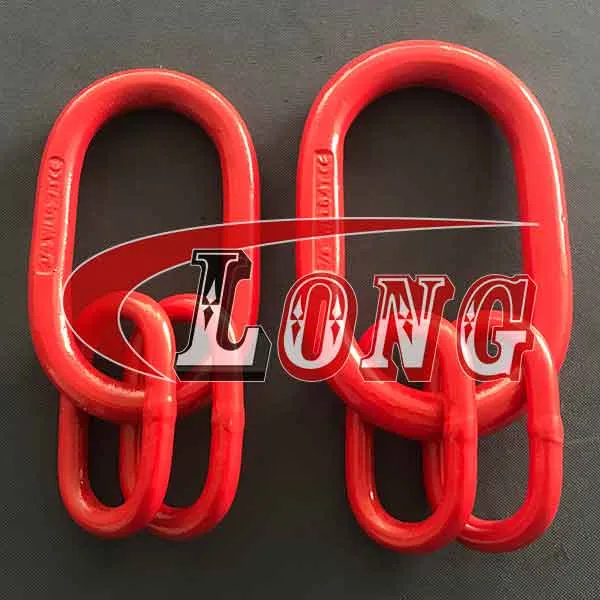

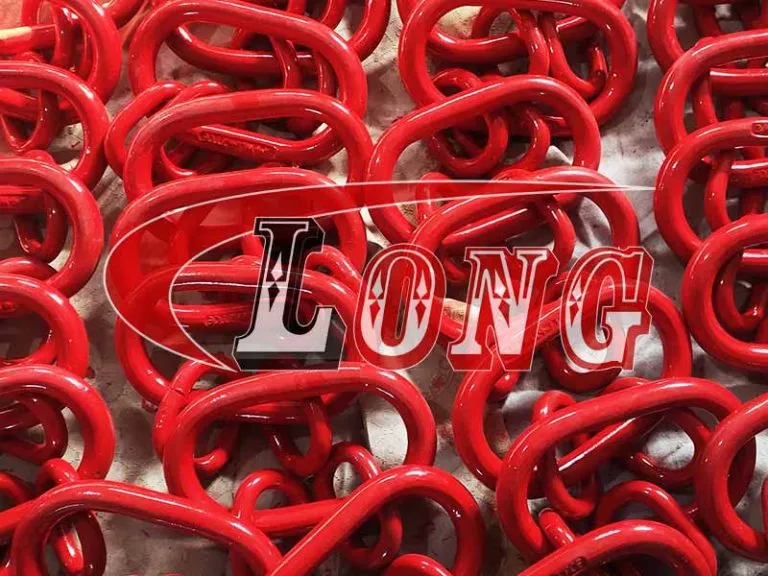

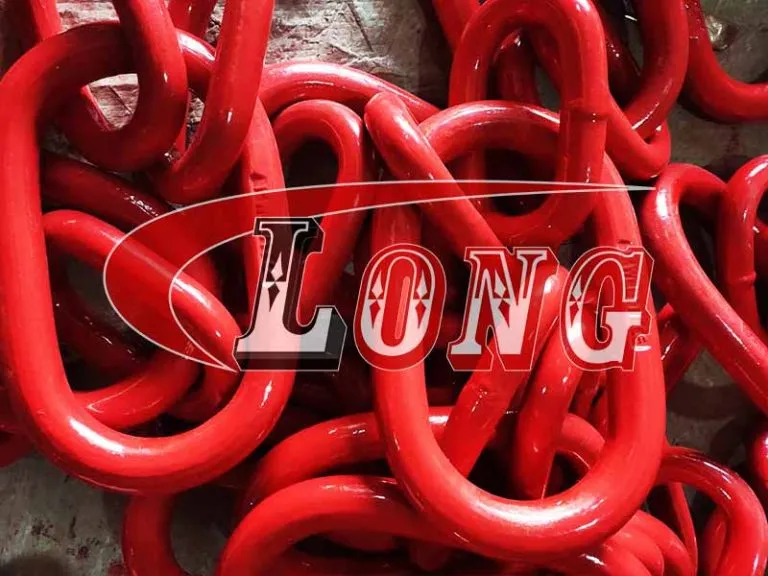

Consists of an Oblong Master link and two Master Coupling link.
Our range of G80 master link assembly is available in standard as well as customized sizes.
Technical Notes | Conform to US Standard (ASME B30.26 ) |
Material | Superior Alloy Steel |
Safety Factor | For chain sling: Minimum Ultimate Load is 4 times the Working Load Limit For steel rope sling: Minimum Ultimate Load is 5 times the Working Load Limit |
processing | Main link: Drop Forged Sub links: Welded Quenched and Tempered |
Finish | Powder Coated |
Size | 3/4, 7/8, 1, 1-1/4, 1-1/2, 1-3/4, 2, 2-1/2, 2-3/4 |
Tips | Color Code: Customized according to customers’ requirements |
Note | There will be pressing flat only on request. Use Only Grade 80 Attachments For Overhead Lifting |

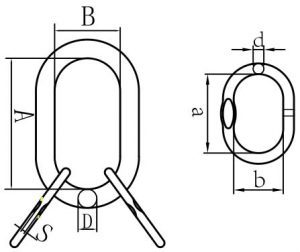

Part No. | SIZE | WEIGHT | Chain | WLL | WLL | DIMENSION(MM) | |||||
A | B | D | a | b | d | ||||||
8-LG-FMLA-US-3/4 | 3/4 | 1.55 | 1/4 | 3.15 | 5.6 | 140±6 | 70±5 | 20±1 | 85±5 | 40±3 | 14±1 |
5/16 | 4.25 | ||||||||||
8-LG-FMLA-US-7/8 | 7/8 | 2.18 | 5/16 | 4.25 | 6.9 | 160±6 | 90±5 | 22±1 | 85±5 | 40±5 | 14±1 |
3/8 | 6.7 | ||||||||||
8-LG-FMLA-US-1/1 | 1 | 3.29 | 3/8 | 6.7 | 11.8 | 178±6 | 89±5 | 25±1 | 100±5 | 60±5 | 18±1 |
8-LG-FMLA-US-1/4 | 1-1/4 | 7.18 | 1/2 | 11.2 | 17.7 | 222±7 | 110±6 | 32±1/-2 | 100±5 | 60±5 | 22±1 |
5/8 | 17 | ||||||||||
8-LG-FMLA-US-1-1/2 | 1-1/2 | 12.91 | 5/8 | 17 | 27.7 | 267±7 | 135±6 | 38±1/-2 | 180±6 | 100±5 | 30±1/-2 |
3/4 | 23.6 | ||||||||||
8-LG-FMLA-US-1-3/4 | 1-3/4 | 21.25 | 3/4 | 23.6 | 38.5 | 305±10 | 152±6 | 45±1/-2 | 180±6 | 100±5 | 32±1/-2 |
7/8 | 31.5 | ||||||||||
8-LG-FMLA-US-2/1 | 2 | 30.34 | 7/8 | 31.5 | 46.5 | 356±10 | 178±6 | 50±1/-2 | 180±6 | 100±5 | 38±1/-2 |
8-LG-FMLA-US-2-1/2 | 2-1/2 | 64.4 | 1 | 45 | 72.6 | 406±10 | 203±7 | 64±3 | 355±8 | 178±6 | 51±1/-2 |
8-LG-FMLA-US-2-3/4 | 2-3/4 | 89 | 11/4 | 67 | 98.4 | 406±10 | 241±7 | 70±3 | 406±8 | 203±6 | 57±1/-2 |
For chain sling: Minimum Ultimate Load is 4 times the Working Load Limit
For steel rope sling: Minimum Ultimate Load is 5 times the Working Load Limit
