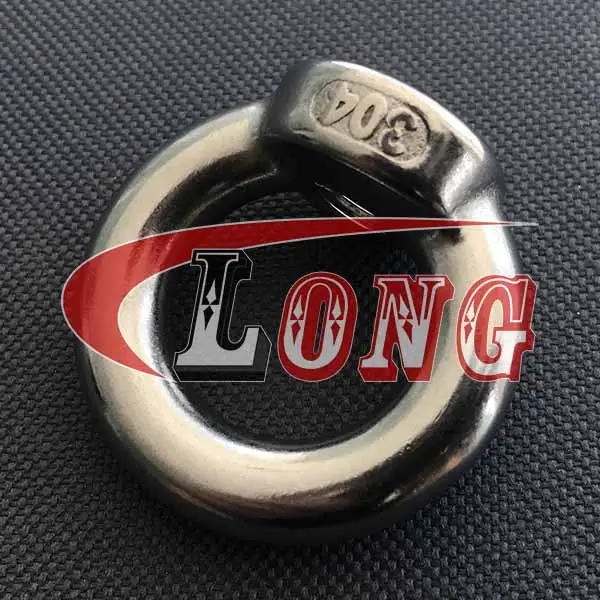

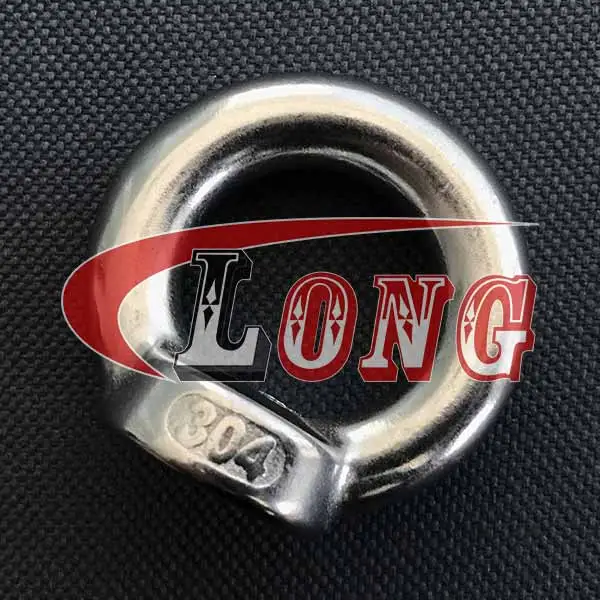

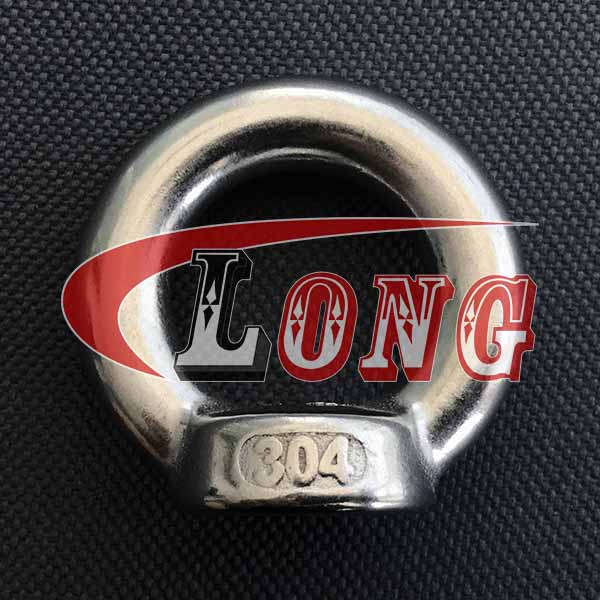

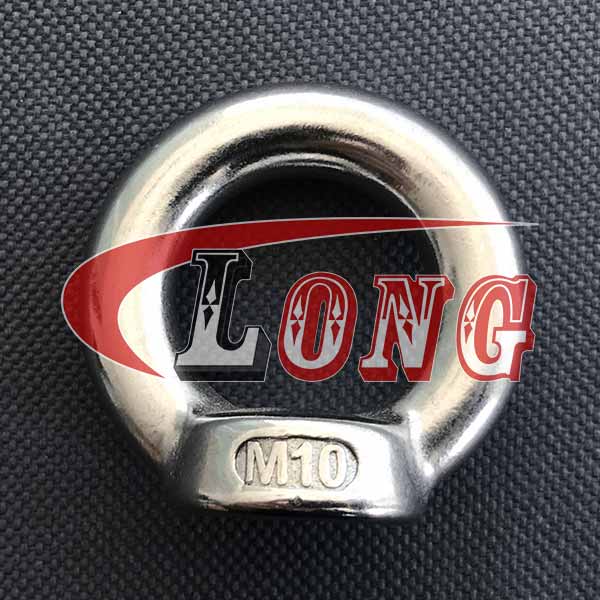

Name: Lifting Eye Nut DIN 582 Stainless Steel LG RIGGING®
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Shade Sail Hardware 

Stainless Shackles 

Stainless Turnbuckle 

Stainless Eye Bolts & Nuts 

 Lifting Eye Bolt DIN 580 UNC Thread Stainless Steel

 Lifting Eye Nut DIN 582 UNC Thread Stainless Steel

 Stainless Steel Long Shank Eye Bolt with Nut and Washer LG RIGGING®

 Stainless Steel Lifting Eye Bolt DIN 580 LG RIGGING®

 Lifting Eye Nut DIN 582 Stainless Steel LG RIGGING®

 Stainless Steel Eye Bolt JIS 1168 Standard

 Stainless Steel Lifting Eye Nut JIS 1169 UNC Thread

 Stainless Steel Lifting Eye Nut JIS 1169

 Stainless Steel Shoulder Eye Bolt UNC Thread with Nut and Washer

 Stainless Steel Forged Shoulder Nut Eye Bolt G-277

 Regular Nut Eye Bolts G-291 Stainless Steel-LG RIGGING®

 Shoulder Type Machinery Eye Bolt Stainless Steel G-279

 Stainless Steel Lag Eye Bolt

 Stainless Steel Lag Eye Screw

 Stainless Steel Eye Bolt Unwelded

 Stainless Steel Swing Eye Bolt UNC Thread

 Stainless Steel Ring Eye Bolt

 Stainless Steel Welded Eye Bolt with Nut & Washer

 DIN444 Eye Swing Bolts Stainless Steel

Stainless Thimbles 

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

Stainless Terminals 

Stainless U Bolts 

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

Stainless Chains 

Eye Plate, Eye Straps, Angles 

Boat Fittings

 

Pole Line Hardware

 

Information of Lifting Eye Nut DIN 582 Stainless Steel

Brand	LG RIGGING®
Standard	Eye Nut Conform To DIN582
Material	Stainless Steel (AISI 304 / AISI 316)
Processing	Precision Cast
Finish	Highly Polishing
Size	M6, M8, M10, M12, M16, M20, M24, M30, M36
Note	Never to be used for overhead lifting

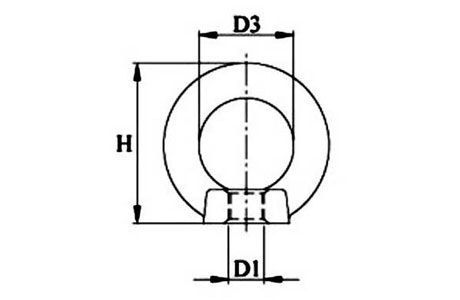

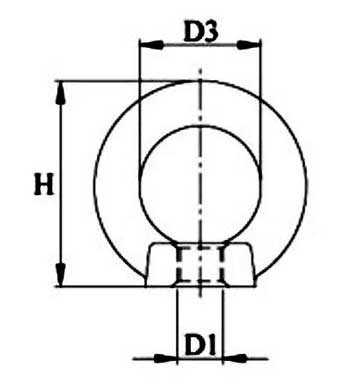

Specifications of Lifting Eye Nut DIN 582 Stainless Steel


Part No.	D1	D3	H	Min.BL
Part No.	mm			KN
LGSSEN58206	M6	16	28	6.2
LGSSEN58208	M8	20	33	8.2
LGSSEN58210	M10	25	42	13.5
LGSSEN58212	M12	30	51	20
LGSSEN58216	M16	35	60	41.2
LGSSEN58220	M20	40	68.8	70.6
LGSSEN58224	M24	50	86.8	105.9
LGSSEN58230	M30	60	104.8	188.3
LGSSEN58236	M36	70	122.6	270.7

The following guidelines of the Stainless Steel-Lifting eye nuts DIN 582 have to be observed in addition to the load values given in the above table.
The eye nut must be of fully screwd in to achieve a perfect contact between the two mating faces.
Both threads must be of a equal length and the base material of equal strength to that of the nut.
