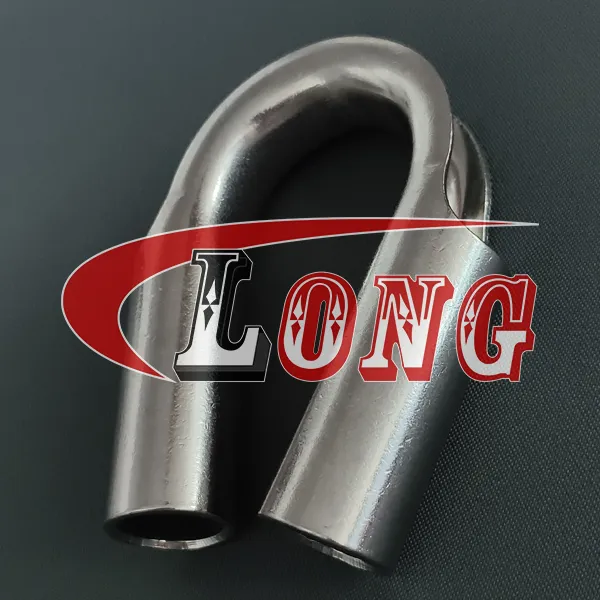

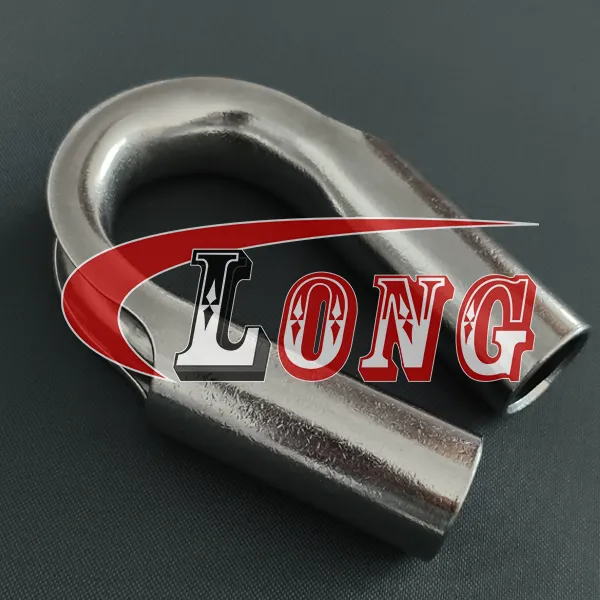

Name: Tube Thimble Stainless Steel Heavy Duty LG RIGGING®
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Shade Sail Hardware 

Stainless Shackles 

Stainless Turnbuckle 

Stainless Eye Bolts & Nuts 

Stainless Thimbles 

 Tubular Thimble Stainless Steel without Gusset G5 LG RIGGING®

 Tube Thimble Cast Stainless Steel without Gusset LG RIGGING®

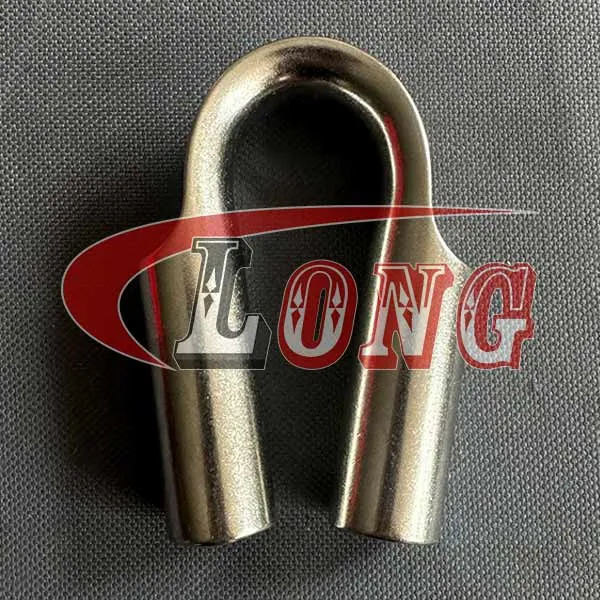

 Tubular Thimble Stainless Steel Light Duty LG RIGGING®

 Tube Thimble Stainless Steel Heavy Duty LG RIGGING®

 Tubular Thimble Cast Stainless Steel with Gusset LG RIGGING®

 Tube Thimble Stainless Steel with Gusset G8K LG RIGGING®

 Stainless Steel Wire Rope Thimble Heavy Duty G-414 LG RIGGING®

 Stainless Steel Wire Rope Thimble Light Duty G-411 LG RIGGING®

 Stainless Steel Wire Rope Thimble European Type LG RIGGING®

 Stainless Steel Wire Rope Thimble Italian Type LG RIGGING®

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

Stainless Terminals 

Stainless U Bolts 

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

Stainless Chains 

Eye Plate, Eye Straps, Angles 

Boat Fittings

 

Pole Line Hardware

 

Information of Tube Thimble Stainless Steel Heavy Duty LG RIGGING®

Brand	LG RIGGING®
Material	Type 316 or 304 Stainless steel
Processing	Machining / Stamping
Finish	Highly Polishing
Size	G512, G515, G521 G808, G810, G812, G815, G819, G824, G827, G831, G839, G848, G860
for Wire	8mm, 10mm, 12mm, 15mm, 19mm, 24mm, 27mm, 31mm, 39mm, 48mm, 60mm
Tips	Supplied in open finish or with welded gusset plate

Specifications of Tube Thimble Stainless Steel Heavy Duty LG RIGGING®

Specifications of Tubular Thimble Stainless Steel Heavy Duty

Part No.	A	B	C	D	E	Weight
Part No.	mm					kg
LGSSTTG512	12	80	21	2.4	11	0.12
LGSSTTG515	15	93	23	2.8	14	0.19
LGSSTTG521	21	116	27	2.7	16	0.28

Part No.	A	B	C	D	E	Weight	For wire max.
Part No.	mm					kg	mm
LGSSTTG808	8	60	17	3.0	7	0.08	6
LGSSTTG810	10	70	20	3.0	9	0.12	8
LGSSTTG812	12	84	20	4.0	7	0.33	10
LGSSTTG815	15	91	27	5.0	9	0.39	12
LGSSTTG819	19	113	31	5.0	11	0.79	16
LGSSTTG824	24	136	46	5.0	15	1.04	21
LGSSTTG827	27	142	45	5.0	15	1.29	24
LGSSTTG831	31	163	48	7.0	19	1.84	28
LGSSTTG839	39	179	60	5.5	20	1.68	35
LGSSTTG848	48	220	74	5.5	32	2.71	44
LGSSTTG860	60	260	100	8.5	38	5.75	54
