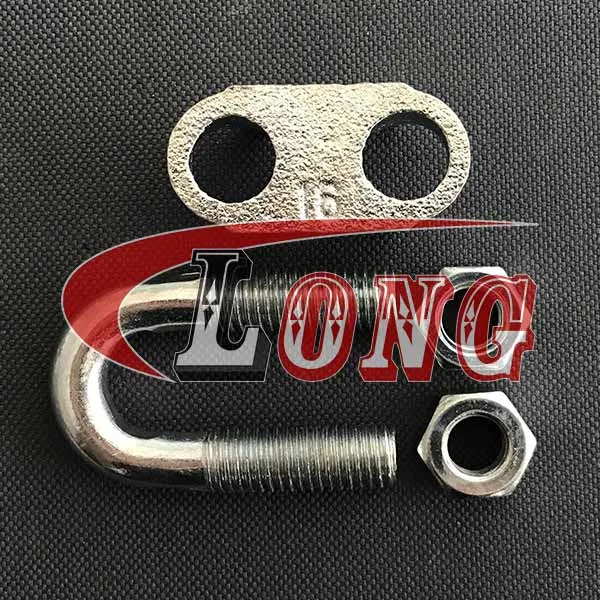

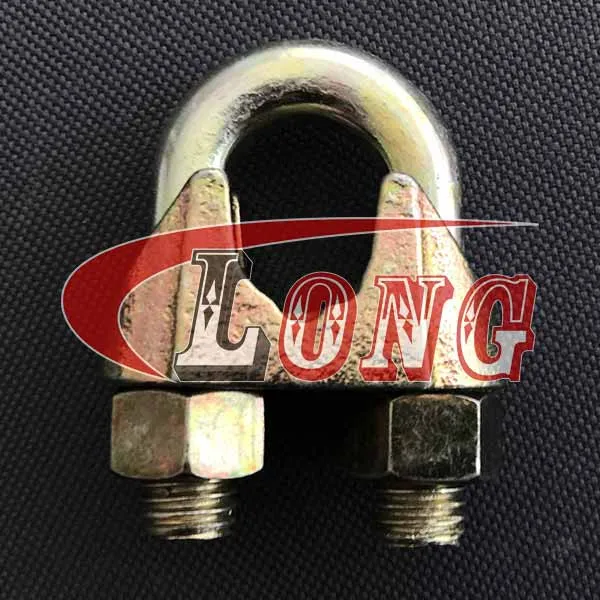

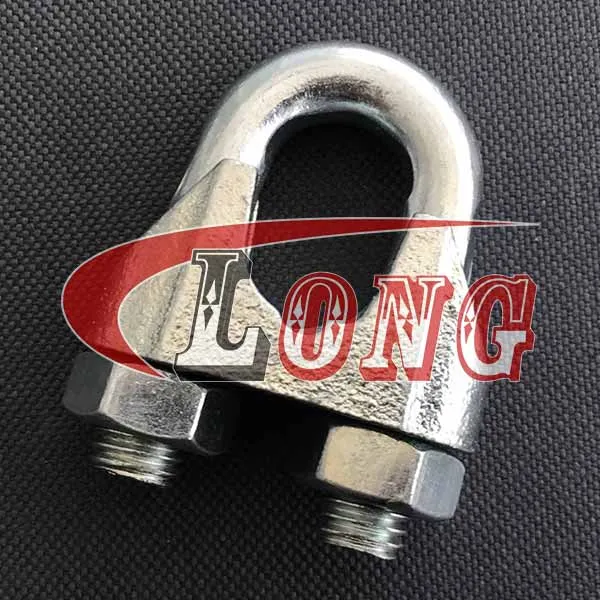

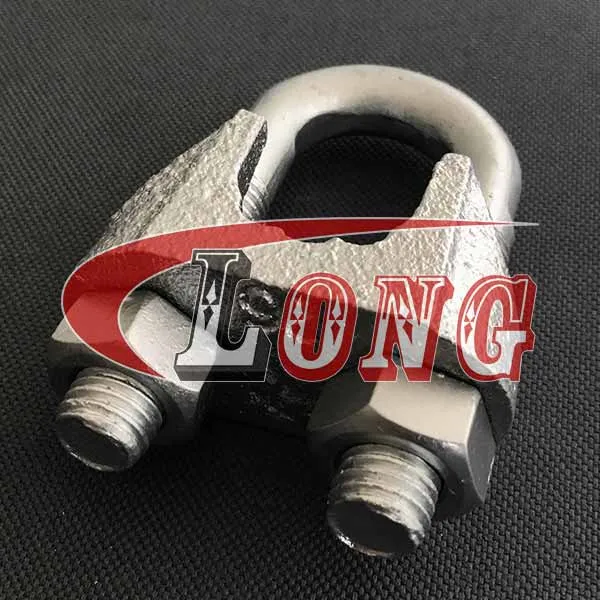

Name: LGRIG® Wire Rope Clip DIN741 Galvanized Malleable
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

 LGRIG® Wire Rope Clip DIN741 Galvanized Malleable

 LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)

 LGRIG® Malleable Wire Rope Clip LG-450 US Standard

 LGRIG® Drop Forged Wire Rope Clips LG450 US.Fed.Spec.

 LGRIG® Wire Rope & Cable Grip 0.5Ton 1Ton 2Ton 3Ton

 LGRIG® Simplex Wire Rope Grips Zinc Plated

 LGRIG® Duplex Wire Rope Clips/Grips Zinc plated

 LGRIG® Australian Standard Wire Rope Grips AS2076

 LGRIG® Closed Spelter Socket G-417 US Type

 Open Spelter Wire Rope Socket G-416 US Type

 Fist Grip Wire Rope Clips Hot Dip Galvanized

 Drop Forged Wire Rope Clips Italy Type

 Deka Wire Rope Clips Galvanized Malleable Cast Iron

 Drop Forged Wire Rope Clips G450 Stainless Steel US Type for Wire Rope Clips & Grips

 American Wire Rope Cable Grip

 Japanese Type Wire Rope Cable Grip

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Wire Rope Clip DIN741 Galvanized Malleable

Brand	LGRIG®
Standard	Wire Cable Clamp To DIN741
Material	Super Mild Steel
Finish	Zinc Plated / Hot Dipped Galvanized / Dacromet
Size	3mm, 5mm, 6mm, 8mm, 10mm, 11mm, 12mm, 14mm, 16mm 19mm, 22mm, 26mm, 30mm, 32mm, 34mm, 40mm
Note	Never to be used for overhead lifting
Country of Origin	China

Specifications of LGRIG® Wire Rope Clip DIN741 Galvanized Malleable

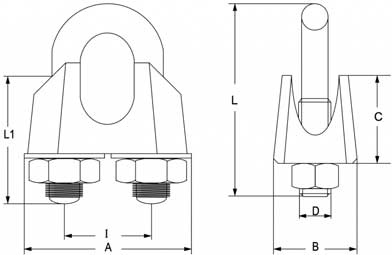

Part No.	Rope Size	A	B	C	D	I	L	L1	Unit Weight
Part No.	mm								Kg
LG741G03	3	21	10	10	M 4	9	20	12	0,008
LG741G05	5	24	11	10	M 5	11	24	13	0,018
LG741G06	6	26	12	11	M 5	13	28	15	0,020
LG741G08	8	30	14	15	M 6	16	34	19	0,027
LG741G10	10	37	20	19	M 8	20	42	22	0,065
LG741G11	11	38	20	20	M 8	21	44	22	0,065
LG741G12	12	44	25	23	M 10	25	55	30	0,105
LG741G14	14	46	25	25	M 10	27	57	30	0,120
LG741G16	16	52	28	28	M 12	30	63	33	0,165
LG741G19	19	58	32	34	M 12	34	75	38	0,225
LG741G22	22	64	35	35	M 14	38	85	44	0,270
LG741G26	26	68	38	38	M 14	42	95	45	0,405
LG741G30	30	80	40	45	M 16	50	110	50	0,500
LG741G32	32	80	40	45	M 16	50	118	50	0,650
LG741G34	34	88	45	52	M 16	54	120	55	0,720
LG741G40	40	95	48	58	M 16	60	140	60	0,880
