tubular-thimble-cast-stainless-steel-with-gusset
tubular-thimble-cast-stainless-steel-with-gusset

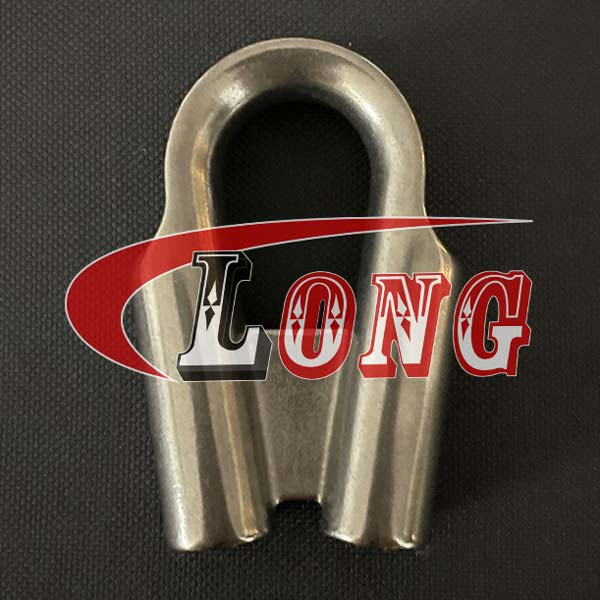

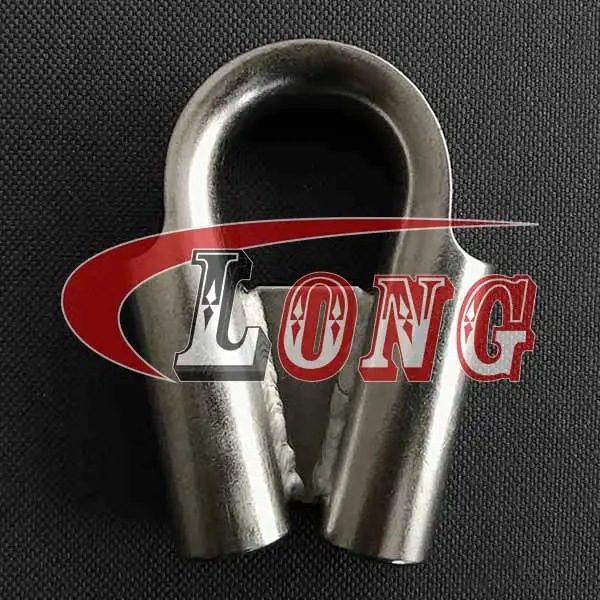

Tubular Thimble Cast Stainless Steel with Gusset LG RIGGING®

Tubular Thimble Cast Stainless Steel with Gusset LG RIGGING®, also known as stainless steel Tubular Thimble with Gusset, and some customers also called it stainless steel Pipe Thimble.

Our Tubular Thimble Cast Stainless Steel with Gusset comes in stainless steel for added resistance to high moisture or corrosive environments.

Tube thimble is easy to install, it well keep the rope line into the tube groove, avoid the line fall off from thimble. make safer on working.

This tube thimble will protect your line and keep it from twisting and fraying at the ends. Our range of tube thimble is available in standard as well as customized sizes.

Stainless steel tubular thimble is one kind of wire rope thimble, and it is deal for marine and industrial rigging and wire rope applications.

Get A Quote
Products
Trawling Gear
Grade80 / Grade100
Trawling Swivel
Trawling Shackle
Hooks / Links / Rope Fittings
Rope Thimbles
Tools
Trawling Chain
Synthetic Rope
Trawl Wire
Fishing Net Float & Buoy
Lifting Sling
Trawl Block
Wire / Chain Toggles
Anchors & Fittings
Dock Products
Safety Appliance
Rockhopper Spare Parts
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Tubular Thimble Stainless Steel without Gusset G5 LG RIGGING®
Tube Thimble Cast Stainless Steel without Gusset LG RIGGING®
Tubular Thimble Stainless Steel Light Duty LG RIGGING®
Tube Thimble Stainless Steel Heavy Duty LG RIGGING®
Tubular Thimble Cast Stainless Steel with Gusset LG RIGGING®
Tube Thimble Stainless Steel with Gusset G8K LG RIGGING®
Stainless Steel Wire Rope Thimble Heavy Duty G-414 LG RIGGING®
Stainless Steel Wire Rope Thimble Light Duty G-411 LG RIGGING®
Stainless Steel Wire Rope Thimble European Type LG RIGGING®
Stainless Steel Wire Rope Thimble Italian Type LG RIGGING®
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture

Information of Tubular Thimble Cast Stainless Steel with Gusset LG RIGGING®

BrandLG RIGGING®

Material

Type 316 or 304 Stainless steel

Processing

Cast

Finish

Highly polishing

Typewith Gusset

Size-Wire

4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 27mm, 31mm

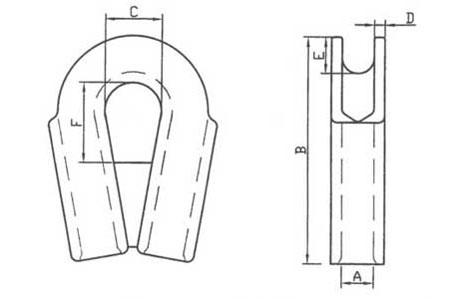

Specifications of Tubular Thimble Cast Stainless Steel with Gusset LG RIGGING®


Part No.

A

B

C

D

E

F

weight

mm

kg

LGSSTTCG04

11

23

4

1

6

Customize

0.008

LGSSTTCG06

16

38

6

1

8

Customize

0.014

LGSSTTCG08

17

52

8.3

1.5

11.5

14

0.025

LGSSTTCG10

21

64

10.5

1.5

13.2

16

0.051

LGSSTTCG12

23

75

12.4

1.7

15.8

28

0.091

LGSSTTCG14

24.5

83

13.8

2

17.5

28

0.11

LGSSTTCG16

25

90

15.5

2.2

20.4

33

0.145

LGSSTTCG18

25

94

18.3

2

22

35

0.152

LGSSTTCG20

31

95

21

3

27

35

0.24

LGSSTTCG22

30

100

22.5

2.3

27

38

0.245

LGSSTTCG24

35

105

24

3

30.5

42

0.35

LGSSTTCG27

50.5

130

30

3.9

38



LGSSTTCG31

70

182

34

4

42




We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86 19524345486
E-mail:
Add:
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
Request a Free Quote
Upload
or drag files here.

Related Stainless Thimbles

Tube Thimble Stainless Steel with Gusset G8K LG RIGGING®
Tube Thimble Stainless Steel with Gusset G8K LG RIGGING®
Tubular Thimble Stainless Steel Light Duty LG RIGGING®
Tubular Thimble Stainless Steel Light Duty LG RIGGING®
Tube Thimble Stainless Steel Heavy Duty LG RIGGING®
Tube Thimble Stainless Steel Heavy Duty LG RIGGING®
Stainless Steel Wire Rope Thimble European Type LG RIGGING®
Stainless Steel Wire Rope Thimble European Type LG RIGGING®
Tubular Thimble Stainless Steel without Gusset G5 LG RIGGING®
Tubular Thimble Stainless Steel without Gusset G5 LG RIGGING®
Stainless Steel Wire Rope Thimble Italian Type LG RIGGING®
Stainless Steel Wire Rope Thimble Italian Type LG RIGGING®
Stainless Steel Wire Rope Thimble Light Duty G-411 LG RIGGING®
Stainless Steel Wire Rope Thimble Light Duty G-411 LG RIGGING®
Tube Thimble Cast Stainless Steel without Gusset LG RIGGING®
Tube Thimble Cast Stainless Steel without Gusset LG RIGGING®
China LG RIGGING's Updates
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles
27
Jan
2025
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles Learn More
Introduction to Rigging Turnbuckles: Advantages and Applications
13
Jan
2025
Introduction to Rigging Turnbuckles: Advantages and Applications Learn More
Exhibition in Chile 2024
29
Oct
2024
Exhibition in Chile 2024 Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware
Resources
Video Blog FAQs About LG RIGGING® Document Download
About
Company News Industry News
Contact Us
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
sales@lg-lifting.com
+86 19524345486
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86 19524345486
