Name: Stainless Steel U Bolt TPN Type with 2 Plates & Nuts LG RIGGING®
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Shade Sail Hardware 

Stainless Shackles 

Stainless Turnbuckle 

Stainless Eye Bolts & Nuts 

Stainless Thimbles 

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

Stainless Terminals 

Stainless U Bolts 

 Stainless Steel U Bolt TPN Type with 2 Plates & Nuts LG RIGGING®

 Stainless Steel U Bolt Clamp PSN Type with Safety Nut

 Stainless Steel U Bolt SPWN Type with Plates & Nuts

 U Clamp Stainless Steel PFSN Type with Plate & Special Nut

 U Bolt Stainless Steel PNN Type with Nylon Lock Nut

 Stainless Steel U Bolt Clamp TPFN Type with 2 Plates & 4 Nuts

 Stainless Steel U Bolt MPWN Type with Nut

 Stainless Steel U Bolt Clamp TN Type

 U Bolt Clamp Stainless Steel TLF Type

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

Stainless Chains 

Eye Plate, Eye Straps, Angles 

Boat Fittings

 

Pole Line Hardware

 

Information of Stainless Steel U Bolt TPN Type with 2 Plates & Nuts

Brand	LG RIGGING®
Material	Stainless Steel 304 or 316 U bolt
Processing	Stamping & Machining
Finish	Highly Polished
U Bolt Clamp Sizes	4mm, 5mm, 6mm, 8mm, 10mm, 12mm stainless steel U bolt Clamp

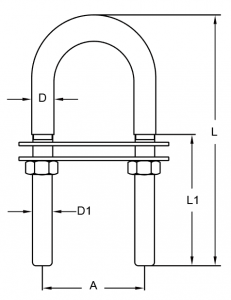

Specifications of Stainless Steel U Bolt TPN Type with 2 Plates & Nuts


Part No.	D1	L1	L	D	A	WT
Part No.	mm					kgs
LGSSUB2PN01	4	30	62	5	30	0.035
LGSSUB2PN02	5	48	78	6	36	0.048
LGSSUB2PN03	6	42	80	8	36	0.072
LGSSUB2PN04	6	42	90	8	36	0.08
LGSSUB2PN05	8	40	80	10	35	0.114
LGSSUB2PN06	8	52	100	10	45	0.133
LGSSUB2PN07	10	35	90	12	50	0.199
LGSSUB2PN08	10	35	110	12	50	0.219
LGSSUB2PN09	10	80	135	12	50	0.243
LGSSUB2PN10	12	65	130	14	60	0.34
LGSSUB2PN11	12	85	150	14	60	0.38
