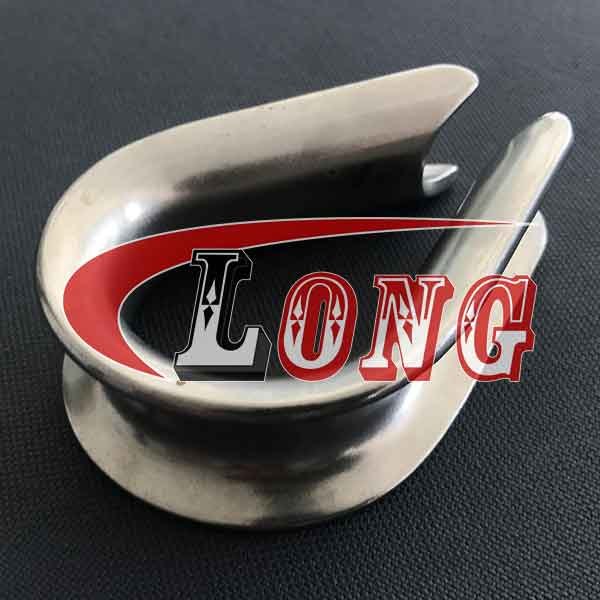

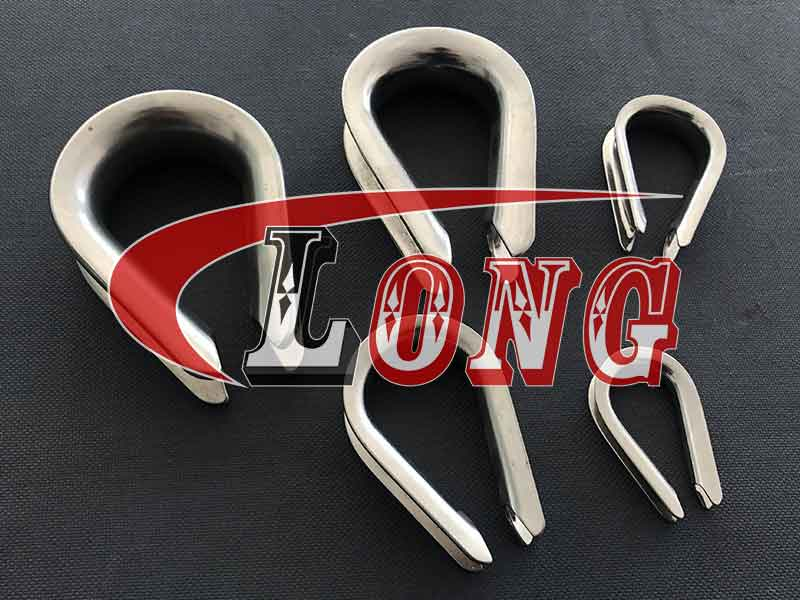

Name: Stainless Steel Wire Rope Thimble Light Duty G-411 LG RIGGING®
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Shade Sail Hardware 

Stainless Shackles 

Stainless Turnbuckle 

Stainless Eye Bolts & Nuts 

Stainless Thimbles 

 Tubular Thimble Stainless Steel without Gusset G5 LG RIGGING®

 Tube Thimble Cast Stainless Steel without Gusset LG RIGGING®

 Tubular Thimble Stainless Steel Light Duty LG RIGGING®

 Tube Thimble Stainless Steel Heavy Duty LG RIGGING®

 Tubular Thimble Cast Stainless Steel with Gusset LG RIGGING®

 Tube Thimble Stainless Steel with Gusset G8K LG RIGGING®

 Stainless Steel Wire Rope Thimble Heavy Duty G-414 LG RIGGING®

 Stainless Steel Wire Rope Thimble Light Duty G-411 LG RIGGING®

 Stainless Steel Wire Rope Thimble European Type LG RIGGING®

 Stainless Steel Wire Rope Thimble Italian Type LG RIGGING®

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

Stainless Terminals 

Stainless U Bolts 

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

Stainless Chains 

Eye Plate, Eye Straps, Angles 

Boat Fittings

 

Pole Line Hardware

 

Information of Stainless Steel Wire Rope Thimble Light Duty G-411 LG RIGGING®

Brand	LG RIGGING®
Standard	Meets or exceeds ASTM A148 & ASME B30.26 requirements.
Type	G-411
Material	Type 316 or 304 Stainless steel
Processing	Machining / Stamping
Finish	Highly Polishing
Size-Wire	1/16", 3/32", 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/4", 1-3/8"

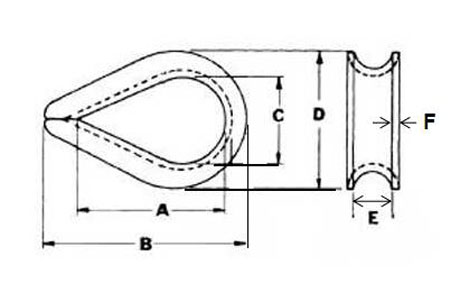

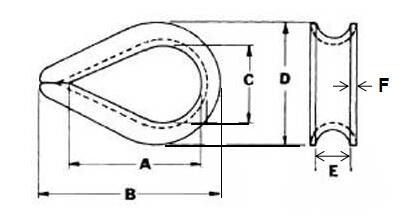

Specifications of Stainless Steel Wire Rope Thimble Light Duty G-411 LG RIGGING®


Part No.	Size		E ±1~2mm	C ±1~2mm	D ±1~3mm	A ±1~2mm	B ±1~2mm	F	Weight
Part No.	in	mm	mm						g
LGSSG4111/16	1/16	2	4.6	14.7	19.2	29	35.3	0.8	4.9
LGSSG4113/32	3/32	2.5	5.7	13.5	18.7	27.3	34.4	0.8	5
LGSSG4111/8	1/8	3	6.5	17.5	25.5	37	46	1.2	11
LGSSG4115/32	5/32	4	7	17.5	25.6	37	46	1.2	12
LGSSG4113/16	3/16	5	7.5	17.8	26	37.5	46.5	1.2	12
LGSSG4111/4	1/4	6	8	17.5	25.3	39	46.5	1.2	12.6
LGSSG4115/16	5/16	8	9.6	20.5	30.9	39.7	51.9	1.2	18
LGSSG4113/8	3/8	10	11	24.6	35	48	59	1.5	31
LGSSG4111/2	1/2	12	13.6	28.3	42.5	53.7	69.5	2	54
LGSSG4115/8	5/8	16	20	35	57	58.5	81	3	142
LGSSG4113/4	3/4	20	22	42.3	64.8	69.8	91.3	4	248
LGSSG4117/8	7/8	22	26	49	77	94	123	4	370
LGSSG4111	1	25	30	67.6	95.5	117	146	4	456
LGSSG4111-1/4	1-1/4	32	66	75	113	130	164	5	792
LGSSG4111-3/8	1-3/8	36	–	90	–	–	–	6	1668
