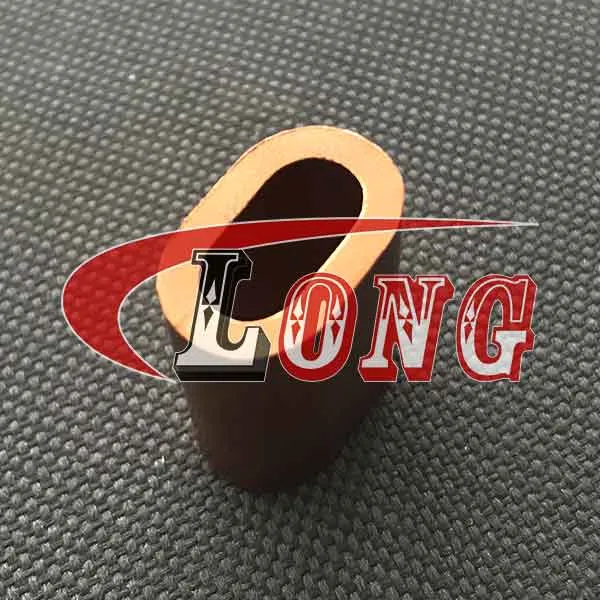

 Copper Ferrule Oval Type for Trawling Gear

 Wire Rope Stop Sleeve for Trawling Gear

 Rings Steel Painted for trawling LG RIGGING®

 Oval Ring Steel Welded Painted LG RIGGING®

 Rings Pear Steel Painted Welded LG RIGGING®

 Metal Washer Steel Washer Round Hole LG RIGGING®

 Stainless Steel Commercial Hook and Hook Turnbuckle European Type for Trawling Gear

 Stainless Steel Turnbuckle Eye and Eye Commercial European Type for Trawling Gear

 Stainless Steel Turnbuckle Eye & Hook European Type for Trawling Gear

 Stainless Steel Rigging Screw Jaw & Jaw for Trawling Gear

 Stainless Steel Rigging Screw Jaw to Swage Stud for Trawling LG RIGGING®

 Stainless Steel Swage Jaw Terminal for Trawling LG RIGGING®

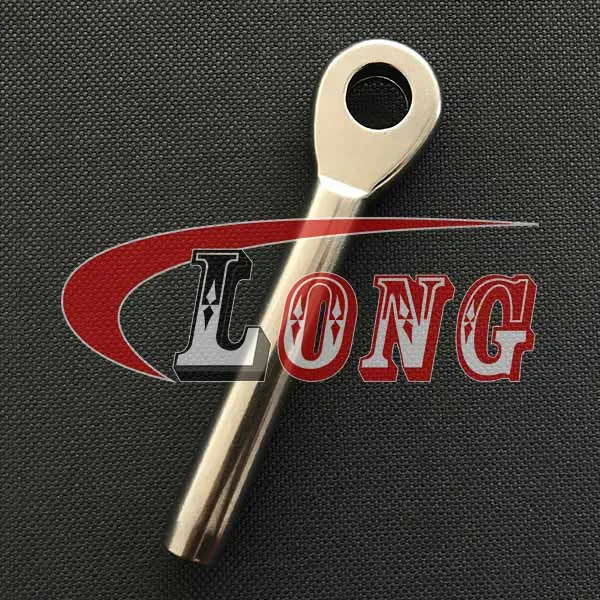

 Stainless Steel Swage Eye Terminal for Trawling Gear

 Stainless Steel Swage Stud Terminal for Trawling Gear LG RIGGING®

 Stainless Steel Dome Head Terminal for Trawling Gear LG RIGGING®

 Carabine Hook DIN5299 Form C Stainless Steel for Trawling Gear

 Carabine Hook DIN 5299 with Screw Nut Stainless Steel for Trawling Gear

 Carabine Hook with Spring Snap Stainless Steel for Trawling Gear LG RIGGING®

 Stainless Steel Eye Swivel Snap Shackle for Sailboat for Trawling Gear LG RIGGING®

 Stainless Steel Jaw Swivel Snap Shackle for Sailboat for Trawling Gear LG RIGGING®

 Stainless Steel Fixed Bail Snap Shackle for Trawling Gear LG RIGGING®

 Stainless Steel Wire Rope Clips DIN741 for Trawling Gear LG RIGGING®

 Stainless Steel Simplex Wire Rope Clip for Trawling Gear LG RIGGING®

 Stainless Steel Duplex Wire Rope Clip for Trawling Gear LG RIGGING®

 Stainless Steel Quick Links for Trawling Gear LG RIGGING®

 S Hooks Stainless Steel for Trawling Gear LG RIGGING®

 Lifting Eye Bolt DIN 580 Stainless Steel for Trawling Gear LG RIGGING®

 Lifting Eye Nut DIN 582 Stainless Steel for Trawling Gear LG RIGGING®

 Stainless Steel Long Shank Eye Bolt with Nut and Washer for Trawling Gear LG RIGGING®

 Stainless Steel U Bolt TPN Type with 2 Plates & Nuts for Trawling Gear LG RIGGING®

 Chain Tension Lever LG RIGGING®

Rope Thimbles 

Tools 

Trawling Chain 

Synthetic Rope 

Trawl Wire 

Fishing Net Float & Buoy 

Lifting Sling 

Trawl Block 

Wire / Chain Toggles 

Anchors & Fittings 

Dock Products 

Safety Appliance 

Rockhopper Spare Parts 

Lifting & Rigging

 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

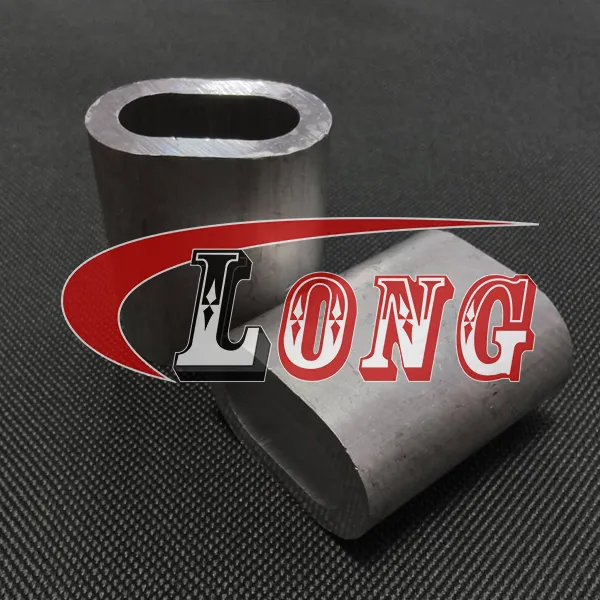

Information of Aluminium Ferrules DIN 3093(EN 13411-3) LG RIGGING®

Brand	LG RIGGING^®
Material	Superior Aluminium
Processing	Machining + Extruded
Finish	Self-colored, Nickel Plated or others
Size	1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 6mm, 6.5mm, 7mm, 8mm, 9mm,10mm, 11mm, 12mm, 13mm, 14mm, 16mm, 18mm, 20mm , 22mm , 24mm, 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm, 44mm, 46mm, 48mm, 50mm, 52mm, 54mm, 56mm, 58mm, 60mm

When durability and precision matter, a DIN 3093 aluminium ferrule ensures a reliable, long-lasting wire rope termination. Whether for industrial rigging, marine applications, or overhead lifting, the DIN 3093 aluminium ferrule meets strict standards for safety and performance.

Specifications of Aluminium Ferrules DIN 3093(EN 13411-3) LG RIGGING®

Specifications of Cable Ferrule Aluminium DIN 3093(EN 13411-3)

Part No.	Size	A(mm)	B(mm)	S(mm)	L(mm)	Weight	L'(mm)
Part No.	Size	A(mm)	B(mm)	S(mm)	L(mm)	kgs/1000pcs	L'(mm)
LGWRFA309301	1	1.2	2.4	0.65	5	0.098	–
LGWRFA30931.5	1.5	1.7	3.4	0.75	6	0.176	–
LGWRFA309302	2	2.2	4.4	0.85	7	0.285	–
LGWRFA30932.5	2.5	2.7	5.4	1.05	9	0.439	–
LGWRFA309303	3	3.3	6.6	1.25	11	0.907	–
LGWRFA30933.5	3.5	3.8	7.6	1.5	13	1.18	–
LGWRFA309304	4	4.4	8.8	1.7	14	1.63	–
LGWRFA30934.5	4.5	4.9	9.8	1.9	16	2.39	–
LGWRFA309305	5	5.5	11	2.1	18	3.62	–
LGWRFA309306	6	6.6	13.2	2.5	21	5.87	25
LGWRFA30936.5	6.5	7.2	14.4	2.7	23	7.18	–
LGWRFA309307	7	7.8	15.6	2.9	25	9.83	30
LGWRFA309308	8	8.8	17.6	3.3	28	12.96	34
LGWRFA309309	9	9.9	19.8	3.7	32	18.94	38
LGWRFA309310	10	10.9	21.8	4.1	35	24.09	42
LGWRFA309311	11	12.1	24.2	4.5	39	35.35	47
LGWRFA309312	12	13.2	26.4	4.9	42	44.18	50
LGWRFA309313	13	14.2	28.4	5.4	46	59.86	55
LGWRFA309314	14	15.3	30.6	5.8	49	73.5	59
LGWRFA309316	16	17.5	35	6.7	56	111	67
LGWRFA309318	18	19.6	39.2	7.6	63	156	76
LGWRFA309320	20	21.7	43.4	8.4	70	217	84
LGWRFA309322	22	24.3	48.6	9.2	77	292	92
LGWRFA309324	24	26.4	52.8	10	84	376	101
LGWRFA309326	26	28.5	57	10.9	91	481	109
LGWRFA309328	28	31	62	11.7	98	603	118
LGWRFA309330	30	33.1	66.2	12.5	105	739	126
LGWRFA309332	32	35.2	70.4	13.4	112	897	134
LGWRFA309334	34	37.8	75.6	14.2	119	1077	143
LGWRFA309336	36	39.8	79.6	15	126	1275	152
LGWRFA309338	38	41.9	83.8	15.8	133	1503	160
LGWRFA309340	40	44	88	16.6	140	1734	168
LGWRFA309342	42	46.2	92.4	17.5	147	2024	–
LGWRFA309344	44	48.4	96.8	18.3	154	2314	184
LGWRFA309346	46	50.6	101.2	19.2	161	2662	–
LGWRFA309348	48	52.8	105.6	20	168	3010	200
LGWRFA309350	50	55	110	20.8	175	3412	–
LGWRFA309352	52	57.2	114.4	21.6	182	3813	216
LGWRFA309354	54	59.4	118.8	22.5	189	4293	–
LGWRFA309356	56	61.6	123.2	23.3	196	4772	232
LGWRFA309358	58	63.8	127.6	24.2	203	5326	–
LGWRFA309360	60	66	132	25	210	5880	248
