Information of Screw Pin Chain Shackle High Tensile U.S. Type

Brand	LG RIGGING^®
Technical Notes	U.S. Federal Specification (ASME B30.26)
Material	Body: Super Carbon Steel Screw Pin: Alloy Steel / Super Carbon Steel
Safety Factor	6 : 1 / 4 :1
Shackle Shape	D Shape (Chain Shackle)
Pin	Screw Pin
Processing	Body: Drop Forged / Quenched and Tempered Screw Pin: Cold/Hot Forging / Drop Forged / Quenched and Tempered
Finish	Body: Hot Dipped Galvanized / Powder Coated / Zinc Plated Screw Pin: Powder Coated / Zinc Plated
Size	1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/2”, 1/1/4”, 1-3/8”, 1-1/2”, 1-3/4”, 2”, 2-1/2”
Tips	Special specification and marks can be made according to customers' requirements.

Specifications of Screw Pin Chain Shackle High Tensile U.S. Type

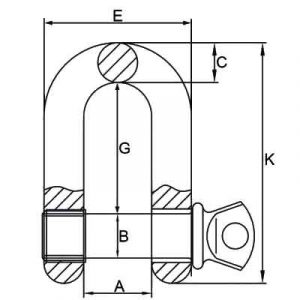

Part No.	Size (in.)	WLL (t)*	Weight	Dimensions (in.)						Tolerance+/-
Part No.	Size (in.)	WLL (t)*	Weight	A	B	C	E	G	K	G	A
LG210SPCS1/4	1/4	1/2	0.11	0.47	0.31	0.25	0.97	0.97	1.59	0.06	0.06
LG210SPCS5/16	5/16	3/4	0.17	0.53	0.38	0.31	1.15	1.07	1.91	0.06	0.06
LG210SPCS3/8	3/8	1	0.28	0.66	0.44	0.38	1.42	1.28	2.31	0.13	0.06
LG210SPCS7/16	7/16	1-1/2	0.43	0.75	0.5	0.44	1.63	1.48	2.67	0.13	0.06
LG210SPCS1/2	1/2	2	0.59	0.81	0.63	0.5	1.81	1.66	3.03	0.13	0.06
LG210SPCS5/8	5/8	3-1/4	1.25	1.06	0.75	0.63	2.32	2.04	3.76	0.13	0.06
LG210SPCS3/4	3/4	4-3/4	2.63	1.25	0.88	0.81	2.75	2.4	4.53	0.25	0.06
LG210SPCS7/8	7/8	6-1/2	3.16	1.44	1	0.97	3.2	2.86	5.33	0.25	0.06
LG210SPCS1/1	1	8-1/2	4.75	1.69	1.13	1	3.69	3.24	5.94	0.25	0.06
LG210SPCS1-1/2	1-1/2	9-1/2	6.75	1.81	1.25	1.25	4.07	3.61	6.78	0.25	0.06
LG210SPCS1-1/4	1-1/4	12	9.06	2.03	1.38	1.38	4.53	3.97	7.5	0.25	0.13
LG210SPCS1-3/8	1-3/8	13-1/2	11.63	2.25	1.5	1.5	5.01	4.43	8.28	0.25	0.13
LG210SPCS1-1/2	1-1/2	17	15.95	2.38	1.63	1.62	5.38	4.84	9.05	0.25	0.13
LG210SPCS1-3/4	1-3/4	25	26.75	2.88	2	2.12	6.38	5.78	10.97	0.25	0.13
LG210SPCS2/1	2	35	42.31	3.25	2.25	2.36	7.25	6.77	12.74	0.25	0.13
LG210SPCS2-1/2	2-1/2	55	71.75	4.12	2.75	2.63	9.38	8.07	14.85	0.25	0.25
