32mm decking rope fittings
32mm decking rope fittings

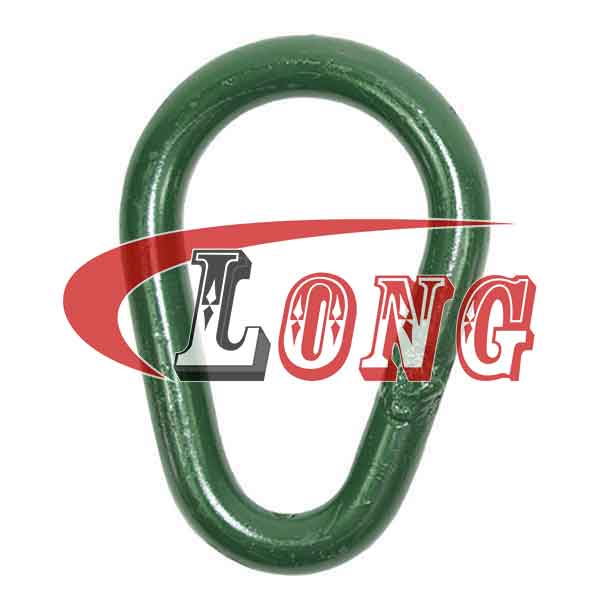

Master Link Pear Shape Welded Steel-LG RIGGING®

Master Link Pear Shape Welded Steel also called welded ring pear shape steel. And it is made of superior mild steel, been powder coated.

Welded Pear Master Link is great for overhead lifting, picking, placing, and towing applications.

Pear shape master link steel can be easily attached to hoists, cranes, slings, and wenches directly or paired with a shackle as needed.

Our range of mild steel welded pear link is available in standard as well as customized sizes.

Trawling Gear
Shackles
Boat Fittings

Information of Master Link Pear Shape Welded Steel-China LG™

Material

Superior Mild Steel

Safety Factor

5: 1

Processing

Welded

Finish

Powder Coated

W.L.L.

1T, 0.8T, 1.8T, 3T, 4.1T, 5.1T, 7.2T

Tips

Color Code: Customized according to customers’ requirements


Specifications of Master Link Pear Shape Welded Steel-China LG™

Specifications of Master Link Pear Shape Welded Steel-China LG™


Part No.

Dia.


mm

WLL 5:1


ton

A


mm

B


mm

C


mm

Weight


kg

LG-ML-PS-MS-1.0T

12

1

70

35

15

0.22

LG-ML-PS-MS-0.8T

12

0.8

125

65

24

0.33

LG-ML-PS-MS-1.8T

16

1.8

110

60

28

0.5

LG-ML-PS-MS-3.0T

19

3

120

70

36

0.8

LG-ML-PS-MS-4.1T

22

4.1

130

85

45

1.4

LG-ML-PS-MS-5.1T

25

5.1

160

100

45

2.2

LG-ML-PS-MS-7.2T

30

7.2

160

100

45

3
