LGRIG® Grade 80 Welded Master Link US Type
LGRIG® Grade 80 Welded Master Link US Type
LGRIG® Grade 80 Welded Master Link US Type
LGRIG® Grade 80 Welded Master Link US Type
LGRIG® Grade 80 Welded Master Link US Type
LGRIG® Grade 80 Welded Master Link US Type
LGRIG® Grade 80 Welded Master Link US Type
LGRIG® Grade 80 Welded Master Link US Type
LGRIG® Grade 80 Welded Master Link US Type

LGRIG® Grade 80 Welded Master Link US Type

LGRIG® Grade 80 Welded Master Link US Type, also known as Oblong Master Link.

Grade 80 Welded Oblong Master Link, engineered for multi-sling compatibility, such as chain, wire rope, synthetic.

This Oblong Masterlink, forged from Grade 80 quenched and tempered alloy steel, this Welded Master Link delivers enhanced load capacity for 1 or 2-leg chain sling configurations, featuring ASME B30.26-compliant performance with validated fatigue life and impact resistance.

Each unit undergoes rigorous 2.5× WLL proof testing, 100% magnaflux crack detection, and full material traceability, while its sliding coupling design and silver epoxy finish ensure secure integration in lifting assemblies.

Certified with a 4:1 safety factor, this central anchor point meets critical industrial requirements for ductility, temperature resilience, and structural integrity in demanding rigging operations.

Get A Quote
Products
Trawling Gear
Trawling Swivel
Hooks
Trawling Shackle
Rope Thimbles
Rings & Links
Kelly's Eye & Stoppers
G-Hooks & Recessed Links
Connectors
Tools
Rockhopper Spare Parts
Trawling Chain
Synthetic Rope
Trawl Wire
Anchors & Fittings
Wire Rope Clips
Ferrules & Terminals
Rigging Screws
Fishing Net Float
Fenders & Buoys
Lashing/Slings/Load Binders
Trawl Blocks & Pulley
Toggles & Spacers
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
G80 Hooks
G80 Lifting Points
G80 Links, Rings
G80 Swivels
G80 Other Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Mooring Compensators / Springs
Brake Lining
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture
Building Components
LGRIG® Lifting Clutch - Concrete Precast Element Lifting

Information of LGRIG® Grade 80 Welded Master Link US Type

Brand

LGRIG®

Standard

G80 Oblong Master Link conform to U.S. Type ( ASME B30.26 )

Material

Superior Alloy Steel

Safety Factor

For chain sling: Minimum Ultimate Load is 4 times the Working Load Limit

For steel rope sling: Minimum Ultimate Load is 5 times the Working Load Limit

Processing

ALL Size are Welded / Quenched and Tempered

Finish

Powder Coated

Size

7/16”, 1/2”, 11/16”, 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-3/4”, 2”

Tips

Color Code: Customized according to customers’ requirements

Note

There will be pressing flat only on request.

Use Only Grade 80 Attachments For Overhead Lifting

Country of Origin

China


Specifications of LGRIG® Grade 80 Welded Master Link US Type


For chain sling: Minimum Ultimate Load is 4 times the Working Load Limit.

For steel rope sling: Minimum Ultimate Load is 5 times the Working Load Limit.

Part No.

SIZE
(in)

WEIGHT
(KG)

Chain

WLL
1 LEG(T)

WLL
2 LEG-45°(T)

WLL
ROPE(T)

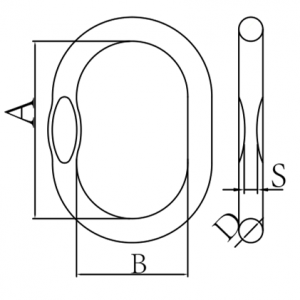

DIMENSION(MM)

A

B

D

8LGWMLUS7/16

7/16

0.27

1/4

1.12

1.6

1.6

100±5

60±5

6±0.5

9/32

1.5

–

8LGWMLUS1/2

1/2

0.38

9/32

1.5

2.12

2.5

100±5

60±5

7.6±0.5

5/16

2

–

8LGWMLUS11/16

11/16

0.85

5/16

2

2.8

4

160±6

90±5

8.4±0.5

3/8

3.15

–

8LGWMLUS3/4

3/4

1.2

3/8

3.15

4.25

6.5

160±6

90±5

10.5±0.5

1/2

5.3

–

8LGWMLUS7/8

7/8

1.63

1/2

5.3

7.5

8

180±6

100±5

13.5±0.5

5/8

8

–

8LGWMLUS1/1

1

2.13

5/8

8

11.2

11.5

180±6

100±5

16.5±0.5

19mm

11.2

–

8LGWMLUS1-1/8

1-1/8

3.81

3/4

12.5

–

11.8

270±7

140±6

19±0.5

8LGWMLUS1-1/4

1-1/4

5.05

19mm

11.2

16

16

270±7

140±6

19±0.5

7/8

15

–

8LGWMLUS1-3/8

1-3/8

6.83

7/8

15

21.2

24

285±7

155±6

20±0.5

1

21.2

–

8LGWMLUS1-1/2

1-1/2

8.9

28mm

25

–

25

300±8

160±6

26±0.5

8LGWMLUS1-3/4

1-3/4

12.8

1

21.2

30

31.5

340±10

180±6

26±0.5

11/4

31.5

–

8LGWMLUS2/1

2

17.3

11/4

31.5

45

45

390±10

215±7

32±0.5


Bulk Photos of LGRIG® Grade 80 Welded Master Link US Type

LGRIG® Grade 80 Welded Master Link US Type
We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86 19524345486
E-mail:
Add:
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
Request a Free Quote
Upload
or drag files here.

Related G80 Links, Rings

LGRIG® Grade 80 Oblong Master Link European Type Bigger Size
LGRIG® Grade 80 Oblong Master Link European Type Bigger Size
LGRIG® Grade 80 Double Clevis Link Special Type Chain Connector
LGRIG® Grade 80 Double Clevis Link Special Type Chain Connector
G80 Master Link Assembly European Type EN1677-4 / DIN5688-3
G80 Master Link Assembly European Type EN1677-4 / DIN5688-3
LGRIG® Grade 80 Web Sling Connector Alloy Steel Forged
LGRIG® Grade 80 Web Sling Connector Alloy Steel Forged
LGRIG® Viking Recessed Link EVR08/EVR10
LGRIG® Viking Recessed Link EVR08/EVR10
LGRIG® Grade 80 Master Link Assembly Forged US Standard
LGRIG® Grade 80 Master Link Assembly Forged US Standard
G80 Master Link European Type EN1677-4/DIN5688-3
G80 Master Link European Type EN1677-4/DIN5688-3
LGRIG® Grade 80 Chain Rope Connector HM Type for Foresetry Logging
LGRIG® Grade 80 Chain Rope Connector HM Type for Foresetry Logging
China LG RIGGING's Updates
Exhibition in Norway 2024 LG RIGGING®
31
Jul
2025
Exhibition in Norway 2024 LG RIGGING® Learn More
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles
27
Jan
2025
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles Learn More
Introduction to Rigging Turnbuckles: Advantages and Applications
13
Jan
2025
Introduction to Rigging Turnbuckles: Advantages and Applications Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware Building Components
Resources
Video Blog FAQs About LG RIGGING® Document Download
About
Company News Industry News
Contact Us
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
sales@lg-lifting.com
+86 19524345486
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86 19524345486
