eye swivel jis type fishing trawl net
eye swivel jis type fishing trawl net
eye swivel jis type for fishing trawl net
eye swivel jis type for fishing trawl net
JIS type eye swivel fishing trawl net
JIS type eye swivel fishing trawl net
eye swivel jis type fishing trawl net
eye swivel jis type for fishing trawl net
JIS type eye swivel fishing trawl net

Eye Swivel JIS Type Single Eye Type Fishing & Trawling Gear-China

Eye Swivel JIS Type Single Eye Type Fishing & Trawling Gear also known as JIS Type Single Eye Swivel, Chain Swivel and swivel shackle.


This single eye swivel is made of superior carbon steel, the processing is drop forged, with hot dip galvanized or electric galvanized on the surface, offers the swivels are ideal for marine, fishing and trawling gear applications.


These Chain Swivels are ideal for fishing and trawling applications where there is no need twists in chain, to relieve the pressure that caused by distorting and knotting when pulled tight.


Our range of drop forged chain swivel available in 13mm, 16mm, 19mm, 22mm as well as customized sizes.

Get A Quote
Products
Trawling Gear
Fishing Net Float & Buoy
Trawling Swivel
Chain Swivel Flexible Stainless Steel WDF Type-LG RIGGING®
Swivel Stainless Steel Flexible WF Type Fishing for Fishing & TrawlingTrawling Gear-China
Flexible Swivel Stainless Steel Longer DLF Type for Trawling Gear
Stainless Steel Swivel D Type Fishing & Trawling Gear
Stainless Steel Swivel Bow Type for Trawling Gear
Chain Swivel Galvanized G-401
Regular Swivel G-402 Galvanized Eye & Eyefor Trawling Gear
Swivel for Connector Stainless Steel for Trawling Gear
Trawling Gear Swivel for Shackles Stainless Steel
Stainless Steel Swivel dD Type for Trawling Gear
G80 Eye Swivel,Grade 80 Swivels
Forged Swivel BRD Type Boat Fishing Trawling Gear-LG RIGGING®
Chain Swivel FOWD Type Alloy Steel Fishing & Trawling Gear-China
Eye Swivel JIS Type Single Eye Type Fishing & Trawling Gear-China
Chain Swivel Drop Forged Mild Steel Fishing & Trawling
Chain Swivel Forged Stainless Steel Fishing & Trawling Gear-China
Chain Swivel WDD Type Welded Steel Fishing & Trawling Gear-China
Chain Swivel WdD Type Fishing & Trawling Gear-LG RIGGING®
Trawling Shackle
Grade80 / Grade100
Rope Thimbles
Rope Splicing Spike
Hooks / Links / Rope Fittings
Trawling Chain
Lifting Sling
Trawl Block
Wire / Chain Toggles
Anchors & Fittings
Dock Products
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture

Information of Eye Swivel JIS Type Single Eye Type Fishing & Trawling Gear-China

Technical Notes

Eye swivel conform to JIS Type

Material

Superior Carbon Steel

Processing

Drop Forged

Surfacsh

Hot Dip Galvanized, Electric Galvanized

Size

13mm, 16mm, 19mm, 22mm

WLL

1T – 5T

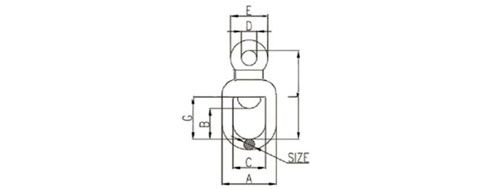

Specifications of Eye Swivel JIS Type Single Eye Type Fishing & Trawling Gear-China

Specifications of Eye Swivel JIS Type Single Eye Type Fishing & Trawling Gear-China


Part No.

Size

Weight

WLL

Dimention

mm

kg

ton

A mm

B mm

C mm

D mm

E mm

G mm

L mm

LG-JIS-ES-13

13

0.5

1

60

35

36

17

41

48

100.5

LG-JIS-ES-16

16

0.94

1.5

72

43

40

23

55

60

124

LG-JIS-ES-19

19

1.46

2.5

82

45

45

26

64

66

142

LG-JIS-ES-22

22

2.21

5

93

53

49

29

73

75

170

LG-JIS-ES-29

29

4.4

3

116

70

58

38

96

–

196


China LG Supply provide you High Strength Forged & Welded Alloy Steel Master Link for use in grade 80 & grade 100 chain slings. Perfect for a wide variety of lifting applications.

We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86-0532-66851176
E-mail:
Add:
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
Request a Free Quote
Upload
or drag files here.

Related Trawling Swivel

Forged Swivel BRD Type Boat Fishing Trawling Gear-LG RIGGING®
Forged Swivel BRD Type Boat Fishing Trawling Gear-LG RIGGING®
Chain Swivel Forged Stainless Steel Fishing & Trawling Gear-China
Chain Swivel Forged Stainless Steel Fishing & Trawling Gear-China
Stainless Steel Swivel Bow Type for Trawling Gear
Stainless Steel Swivel Bow Type for Trawling Gear
Trawling Gear Swivel for Shackles Stainless Steel
Trawling Gear Swivel for Shackles Stainless Steel
Chain Swivel WdD Type Fishing & Trawling Gear-LG RIGGING®
Chain Swivel WdD Type Fishing & Trawling Gear-LG RIGGING®
Chain Swivel Drop Forged Mild Steel Fishing & Trawling
Chain Swivel Drop Forged Mild Steel Fishing & Trawling
Chain Swivel Flexible Stainless Steel WDF Type-LG RIGGING®
Chain Swivel Flexible Stainless Steel WDF Type-LG RIGGING®
G80 Eye Swivel,Grade 80 Swivels
G80 Eye Swivel,Grade 80 Swivels
China LG RIGGING's Updates
Galvanized Vs. Stainless Steel Rope Thimbles: A Comparative Study
18
Apr
2024
Galvanized Vs. Stainless Steel Rope Thimbles: A Comparative Study Learn More
How to Properly Use a Rope Thimble: a Step-by-Step Guide
11
Apr
2024
How to Properly Use a Rope Thimble: a Step-by-Step Guide Learn More
The Role of Wire Thimble Types in Stage Rigging
04
Apr
2024
The Role of Wire Thimble Types in Stage Rigging Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware
Resources
FAQs About LG RIGGING® Document Download Blog
About
Company News Industry News
Contact Us
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
sales@lg-lifting.com
+86-0532-66851176
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86-0532-66851176
